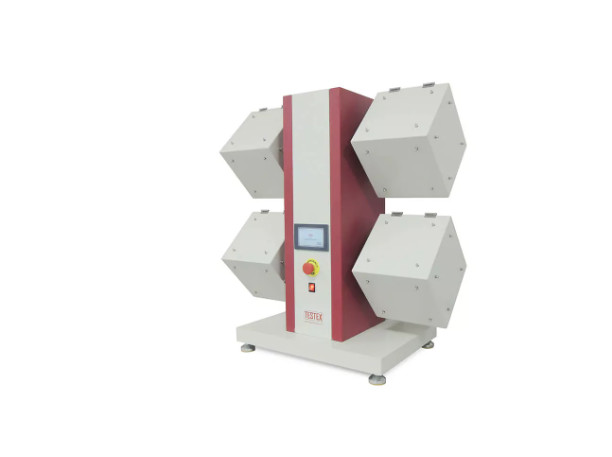

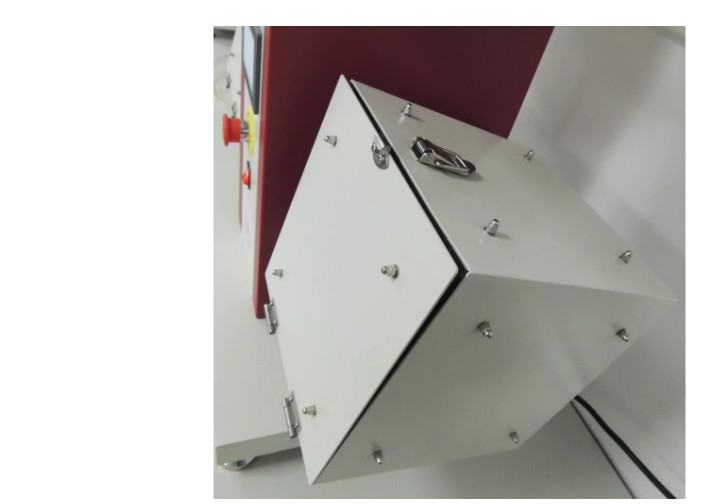

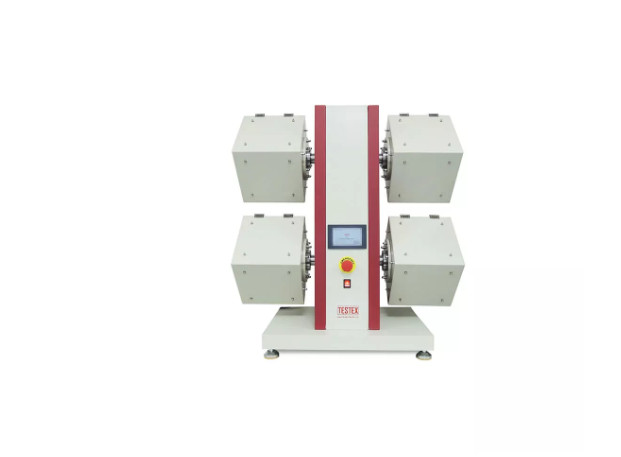

ICI Pilling and Snagging Tester

Model: TF223A/B
Producer: TESTEX-China
Giá: Contact
ICI Pilling Box, or ICI Pilling Tester, is suitable for detecting the pilling phenomenon caused by friction on the fabric surface without pressure, applicable to woven and knitted fabrics. TESTEX ICI ...

Product Application

  • The ICI pilling and snagging tester uses a tumbling test method to test the fuzzing and pilling of fabrics. This apparatus is suitable for the friction pilling test of sparse wool knitted combed fabrics and other pilling-prone fabrics to assess the pilling level of the fabric under stress-free conditions.
  • ICI pilling tester uses a universal drive system with 2 or 4 positions, an electronic digital counter, and a sample mounting fixture. The machine accepts ICI Pilling boxes and ICI pilling drums.

Specifications

Specifications of ICI Pilling and Snagging Tester TF223

  • Rotation Speed      60±2 rpm
  • Control Mode         Single-chip control
  • Touch panel

Optional order

  • Pilling Assessment Viewer
  • Set of 5 Photographic Standards
  • Mounting Jig (used to install specimens easily)
  • Cork liner – pack of 6
  • Rubber tube – pack of 4

Model

  • TF223A ICI Pilling Tester – 2 stations
  • TF223B ICI Pilling Tester – 4 stations

Power

220/110 V 50/60 Hz

Weight

TF223A: 60 kg TF223A: 110 kg

Dimensions

TF223A: 830 x 430 x 550 mm (L x W x H) TF223B: 830 x 430 x 900 mm (L x W x H)

Standard

  • ISO12945-1
  • GB/T 4802.3
  • NEXT TM19
  • Optional Standards:    BS 8479    JIS L1058 method D-2
