Product Application

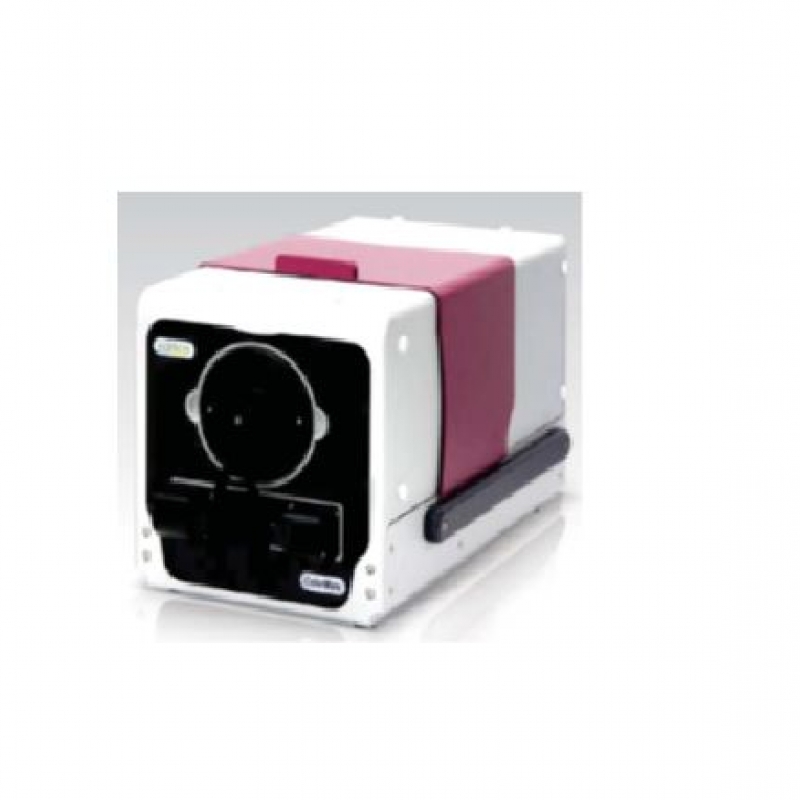

- High-precision Spectrophotometer-ColorMate measures color differences between batches or between products and standards. Using flexible color indices, ColorMate is ideal for most colorimetric measurements that can be applied to different applications. We supply ColorMate to customers in a wide variety of sectors including paints, textiles, plastics, chemicals, coatings, food, paper, and more.
- In the plastic industry : Measurement of color, transmittance, yellowness and whiteness, Film, plastic beads, plastic sheet, pellets, molded samples, etc.
Specifications
Outstanding advantages and benefits
1. High repeatability and high accuracy
+ Highly accurate data through dual beam structure
+ Performs high reproducibility up to 0.01 RMS
2. Switchable SCI/SCE Mode Control
+ ColorMate can measure both SCI and SCE modes by controlling the light trap. The geometry includes a special component (SCI) that matches the actual color content or performs the color formula.
+ Specific Elemental Exclusion (SCE) is to measure differences in appearance and appearance when viewed with the naked eye.
3. Pulse Xenon Arc Lamp
+ The light source is a pulsed xenon arc lamp that offers long service life and reliable repeatability in all colorimetric applications.
4. Automatically detect sample aperture size
+ Three types of reflector apertures are provided as standard with the accessory (LAV (28 mm), MAV (11 mm) and SAV (6 mm)).
+ Users can select the appropriate aperture depending on the sample size and each aperture is automatically recognized in the system.
5. Looking mirror for accurate sample loading
+ Precise sample loading using a sliding view mirror allows the user to check if the sample is loaded properly.
6. 256 Pixel PDA Detector
+ With the combination of optimized optical structure and PDA, data can be processed simultaneously over the full wavelength range (360 ~ 750 nm) in a very short time. It also offers excellent reproducibility and high accuracy.
7. Diffusion: geometry 8º In the case of reflectance measurements, CIE, ASTM, DIN and JIS require a di: 8° geometry (diffuse illumination/view 8°). With this geometry adopted, the light source is diffused in the integral sphere and either reflected or transmitted depending on the type of sample.
8. 6-inch Integral sphere The 6-inch integrated sphere is used and it is coated with Barium Sulfate (BaSO4) according to SCINCO's own technology.
9. Transmission and haze measurement function In addition to measuring the reflectivity of opaque samples, ColorMate can also measure the spectral transmittance of liquids/sheet/plate samples. Since samples can be measured with the sample compartment open, the transmittance of samples such as glass and film can be measured regardless of size. In addition, the transmitted fog of transparent samples can be measured.
10. Changeable position of the system (Vertical or Horizontal) Any type of sample can be measured. It can be specifically used to measure powder (unidentified) samples by placing the device perpendicularly.
11. Ultraviolet Control for Fluorescent-Activated Samples Data of samples such as clothing or paper that have been treated with fluorescent whitening agent (FWA) can be accurately measured with UV light correction. Violet.
Color quality control software in the best combination with ColorMate
• ColorMaster is a software that provides users with measurement samples and data acquisition with ColorMate, an advanced color spectrometer. ColorMaster can be used in testing, quality control and quality control of any type of sample, measuring color, reflectivity, transmittance and transmitted fog. ColorMaster software can be easily operated in Windows 8, 10 environment and it allows users to get different types of result data.
• Easy to use
Various color scales are available to verify measured data. In addition, users can easily check the color difference value.
• Intuitive Graphical User Interface
Selected color indicators; all can be monitored in a single window. The color difference value and the color value that the user wants to see can be checked in one window.
• Verification User Selected Tolerances and Parameters
Pass/Fail available on any color scale by setting tolerance
• Customizable Print Format
Depending on the application, the user can choose to only check the Pass/Fail results or get the full analysis results for R&D research. Partial printing for selected parts is also available.
• User-friendly authentication Check devices easily using a validation program
Measurements:
• Reflectivity
• Transmission
• Color
• Yellow
• Whiteness
• Brightness
• Opacity
• Metamerism
• K/S
• APHA / Gardner
Specifications:
- D/8 vision system (diffuse illumination, 8 degree viewing angle)
- 256 pixel silicone head
- Built-in 6 inch sphere size
- Dual Beam Optical System
- Wavelength 360 ~ 750 nm
- Lighting with pulsed xenon arc lamp
- Wavelength Distance: 5 nm
- Repeatability: Spectral reflectance: 0.1% (STDEV); Colorimetric value: 0.01 (ΔE * ab)
- Inter-Instrument Agreement
Mean dE*ab 0.1 Average for 12 standard color tiles.
Max dE*ab 0.3 for any of 12 standard color tiles.
Spectral reflectance 0.5% for any of 12 standard color tiles.
- Optical System 0 to 200% Reflectance
- Optical Resolution 0.001%
- Reflex Aperture 28, 11.6 mm
- Total transmission aperture 25 mm
- Dimensions 27.5 x 28.5 x 49.5 cm
- RS-232 interface, USB to RS-232 converter
- Weight 15 kg
