Product Application

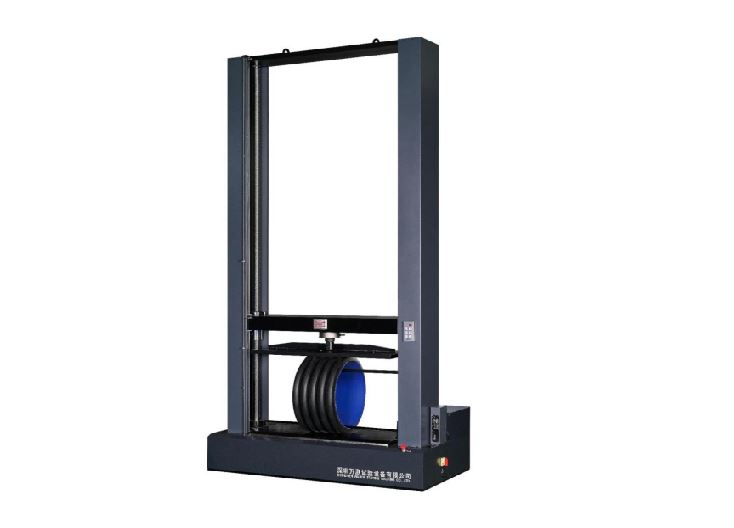

- The ETM type R Series is a specialized machine for tensile testing for round plastic pipes up to 2000 mm . diameter
- The machine has a 2-axis construction with measuring ranges: 30kN, 50 kN and 100 kN
- Designed to accommodate calibrations to: ASTM E4, ISO7500 and equivalent standards
Specifications
Specifications:
- Power: 50 kN.
- The machine achieves accuracy class: ISO 7500,
- Class 1
- Force measuring range: 0.2 % – 100 % full
- The scale
- Force accuracy: ± 1% of result (yes
- upgradable to ± 0.5 % )
- Force resolution: 1/50,000 full
- The scale
- Travel accuracy: ±0.50%
- Position Resolution : 0.06 μm
- Test speed: 0.001~ 500 mm/min
- Speed accuracy: less than ±1.0%
- velocity (upgradable to ±0.5
- % )
- Travel length (not including mount)
- clamp): 600 – 2500 mm
- Compression test space: 2500mm
- Width between 2 columns: 1000 mm
- Measuring range according to the inner diameter of
- Pipe: 250 -2000 mm
- Diameter accuracy
- in: 0.01 mm
- Outer diameter measuring range: 300- 2500
- mm
- Dimensions: 1420×830×3225 mm
- Power supply: 220 V, 50/60 Hz, 1.3
- kW
- Weight: 1500 kg
Standard
Meet the test standards:
- ISO9969, ISO 13968, EN 13476, EN
- 1453, BS EN 1228, BS EN 1446,
- ASTM D2412,…
