Tear Strength Tester - DL033S

Model: Tear Strength Tester - DL033S

Producer: DAELIM-Korea

Giá: Contact

For testing the tear strength of textiles and nonwovens according to the elmendorf method Related standards: ASTM 5734-01, ASTM 1424-09; ISO 1974-90, 9290-90, ISO 13937-1-00,

Buy now Nationwide Delivery

0948279988 Contact phone number

Ứng dụng sản phẩm
Thông số kỹ thuật
Tiêu chuẩn
Video

Ứng dụng sản phẩm

Used to measure tear strength (Elmendorf method) to measure the tear strength of various fabrics, nonwovens, paper and plastics.
≤±0.5% F.S. accuracy test can be checked using digital encoder.
Automatic force measurement, no need to read ruler or input date.
Including English menu, convenient interface and operation.
Equipped with efficient and stable air clamp and automatic cutter to reduce operating power.
Support PC interface and can print data to easily check test results.
Various units of measurement can be selected to meet each test specification requirement.
The number of samples can be selected by the user and improves measurement accuracy through automatic zero calibration of the 4 types of pendulum loads.

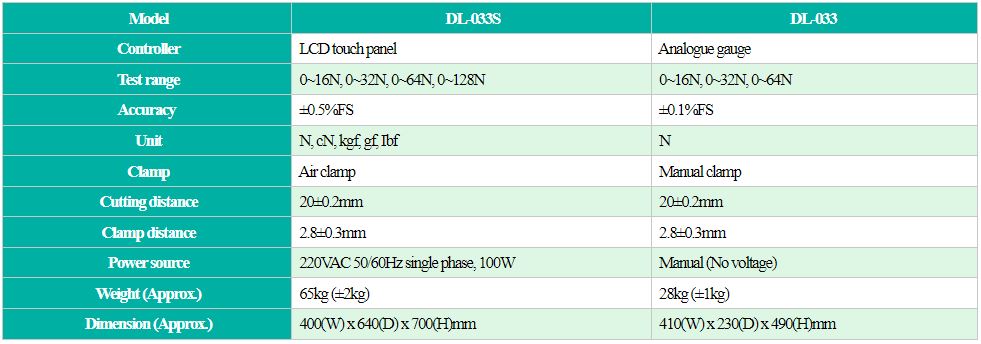

Thông số kỹ thuật

Tiêu chuẩn

ASTM D5734
ISO 13937-1
JIS L 1096
