Rainproof Tester TF161

Ứng dụng sản phẩm
Thông số kỹ thuật
Tiêu chuẩn
Video

Ứng dụng sản phẩm

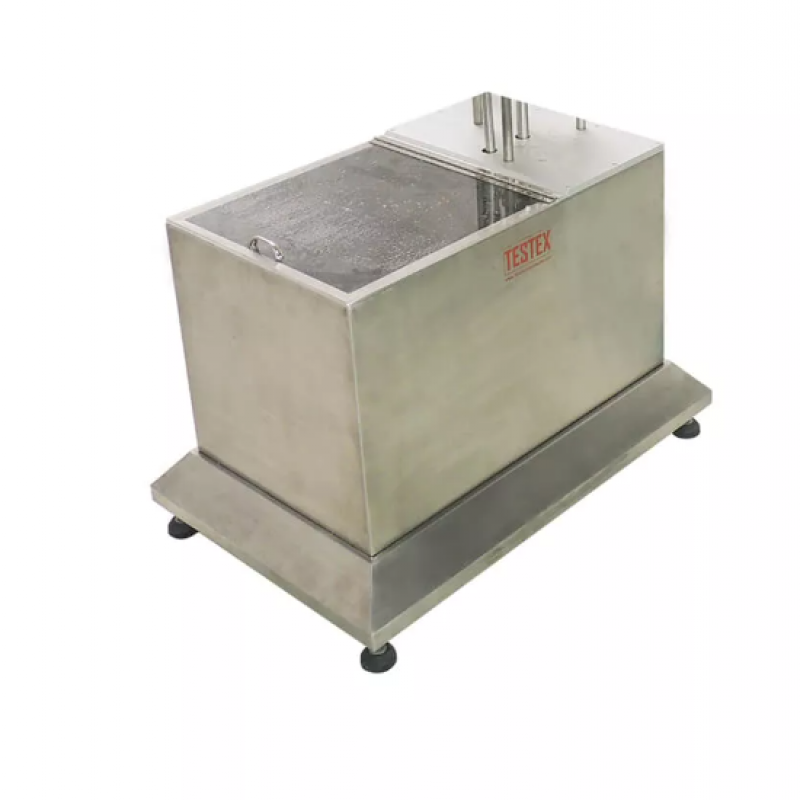

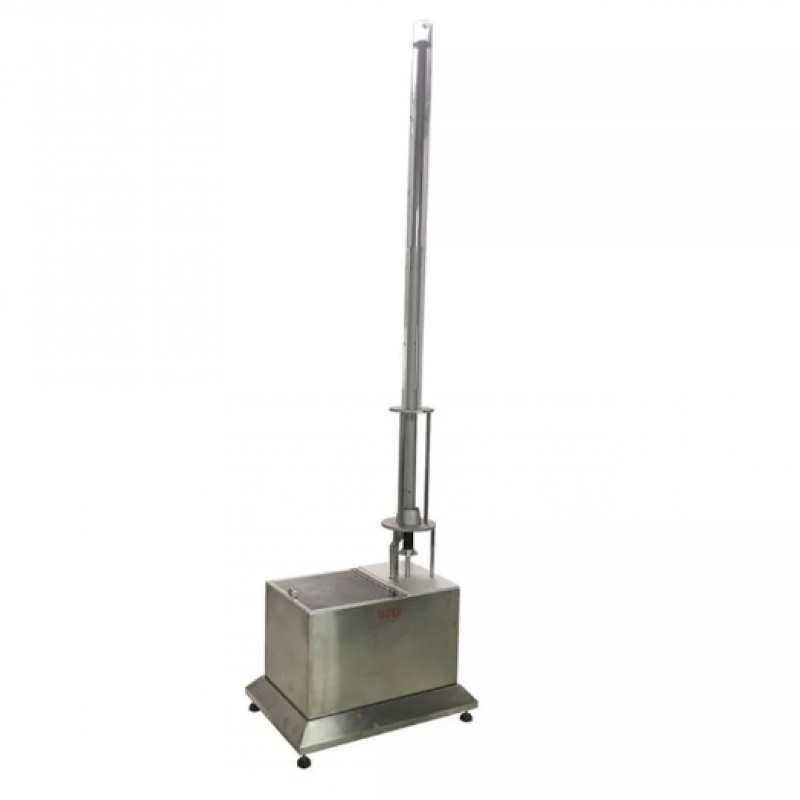

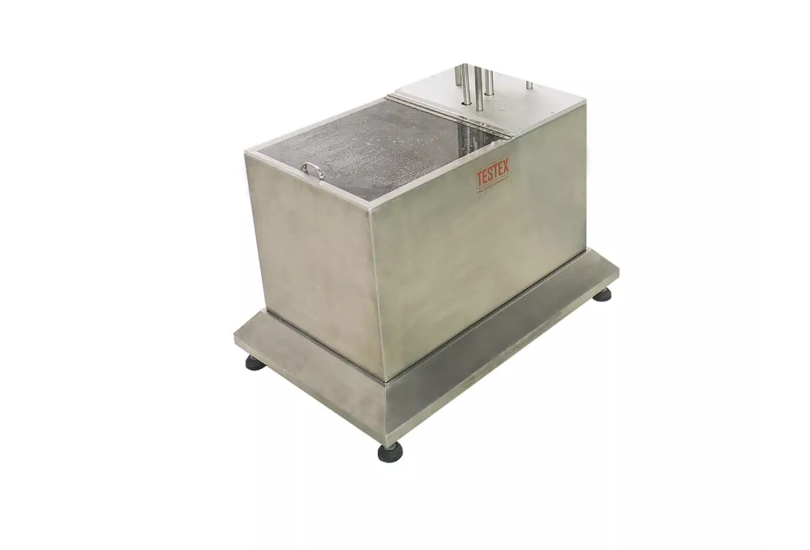

Rain Tester, widely applied to labs to test the penetration resistance performance of fabrics or composites under different intensities of water impact(by stimulating the rain-dropping gravity impact via different water levels inside the tube, pre-determined according to different standards). Simulating rain horizontally impacts fabric samples mounted vertically in a stainless steel bath. Measure the absorbent paper of the sample both before and after the test. The rain is formed by a column of water, which can be adjusted from 600mm to 2400mm.

Thông số kỹ thuật

Test size: 200x200mm
Sample clamp width: 152mm
Middle clamping distance: 165mm(GB/T 23321),155mm（AATCC 35, ISO 22958）
Sample clamp size: 178 * 279 mm
Faucet diameter: 0.99 ± 0.013mm
Nozzle distance between sample: 305mm
Weight: 60kg
Size: 650mm x 800mm x 2800mm

Tiêu chuẩn

ATCC 35

ISO22958

GB/T 23321

Video

Please contact us for advice and support
⇒ Mr. Ba: 0948.27.99.88

⇒ Or leave a message and we will call you directly. Thank you very much!
