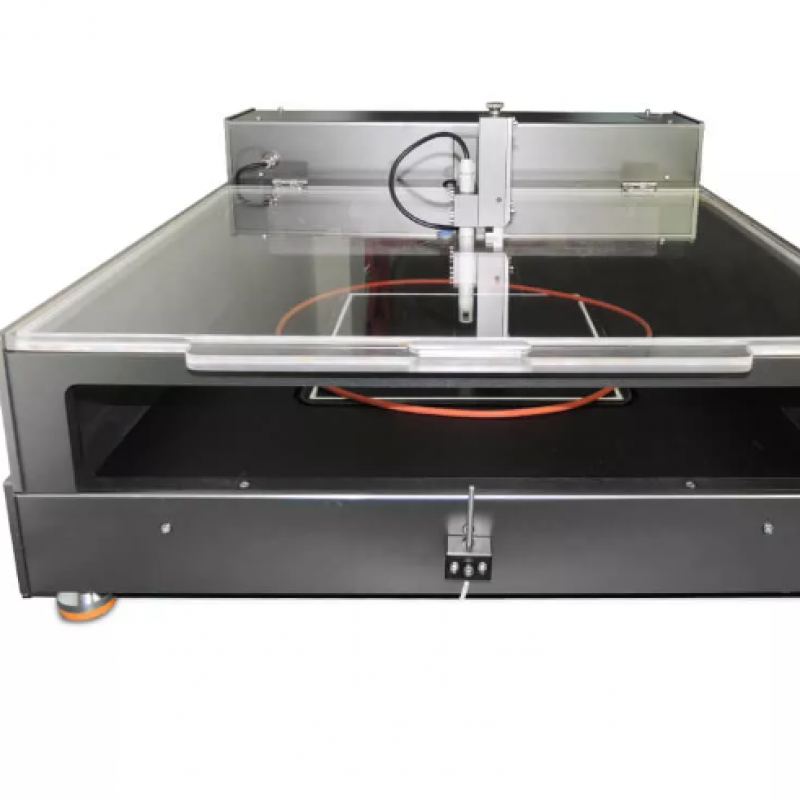

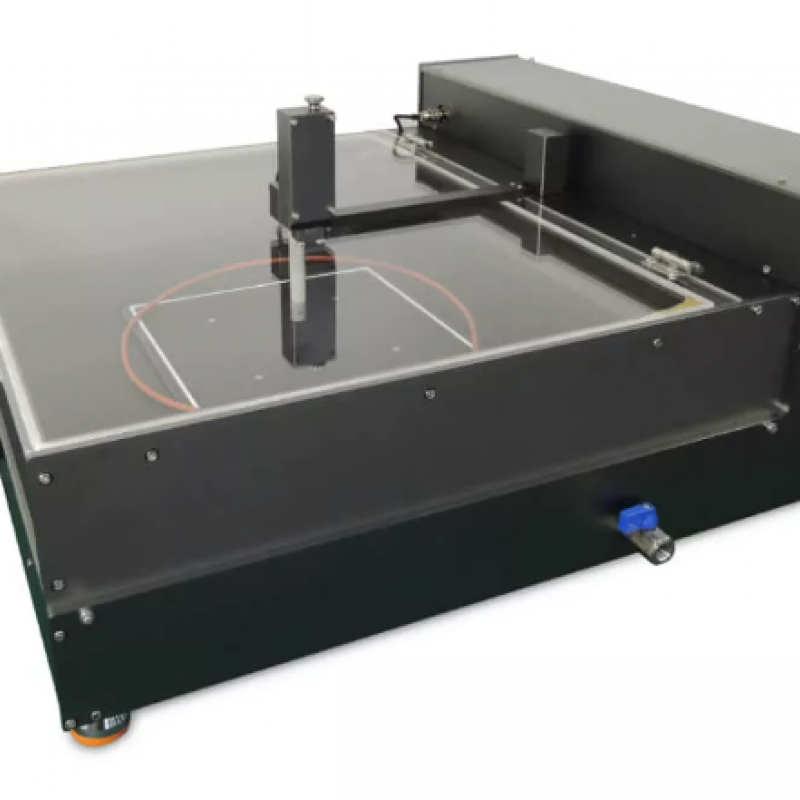

Sweating Guarded Hotplate TF129

Ứng dụng sản phẩm
Thông số kỹ thuật
Tiêu chuẩn
Video

Ứng dụng sản phẩm

What kind of textiles need thermal resistance and water-vapor resistance test?
Products with general requirements for thermal performance, such as knitted underwear, cotton garments, quilts, and various kinds of wadding as padding, etc. Some coated fabrics will require water-vapor resistance testing because the resistance of coated fabrics is generally higher than that of ordinary fabrics, which affects the comfort of wearing clothes.
Thermal resistance test and water-vapor resistance test can present the ability of fabric heat and moisture exchange, can visually express the textile warmth performance, heat and moisture comfort performance, so useful for the enterprise for fabric selection, and product positioning.

Thông số kỹ thuật

Parameter

Thermal resistance range: 0.002-2 .0 m²·K/W, Resolution: 0.0001 m²·K/W

Evaporative Resistance range: 0-1000 m²·Pa/W, Resolution: 0.001m²·Pa/W

Repeatability: ≤ ±2%

Test plate temperature range: 0℃ ~ 35℃, adjustable, accuracy: ±0.2℃

Air velocity: 0 ~ 1 m/s, adjustable, accuracy: ±1%

Sample thickness: 0~50 mm

Test plate area: 254 mm x 254 mm

Specification

Model	TF129
Standards	ISO 11092, ASTM F1868, GB/T 11048
Power	110/220 V, 50 Hz
Weight	62 Kg
Dimensions	770 mm x 670 mm x 430 mm

Tiêu chuẩn

ISO 11092,
ASTM F1868,
GB/T 11048

Video

Please contact us for advice and support
⇒ Mr. Ba: 0948.27.99.88

⇒ Or leave a message and we will call you directly. Thank you very much!
