Products  Universal Compression Tractor

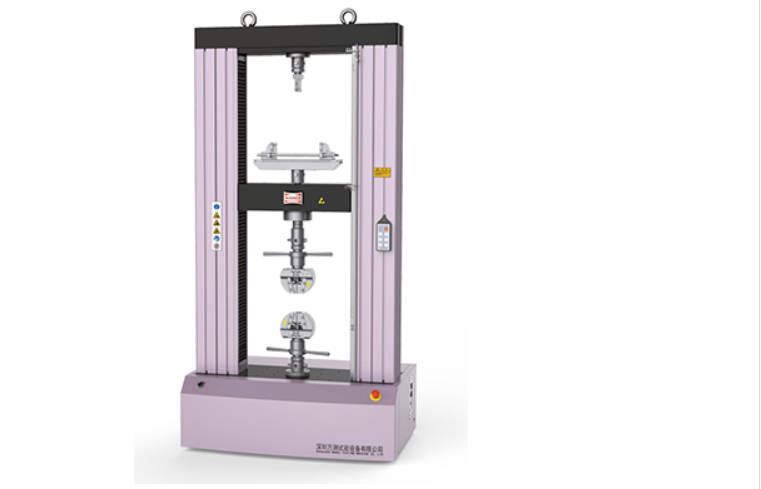

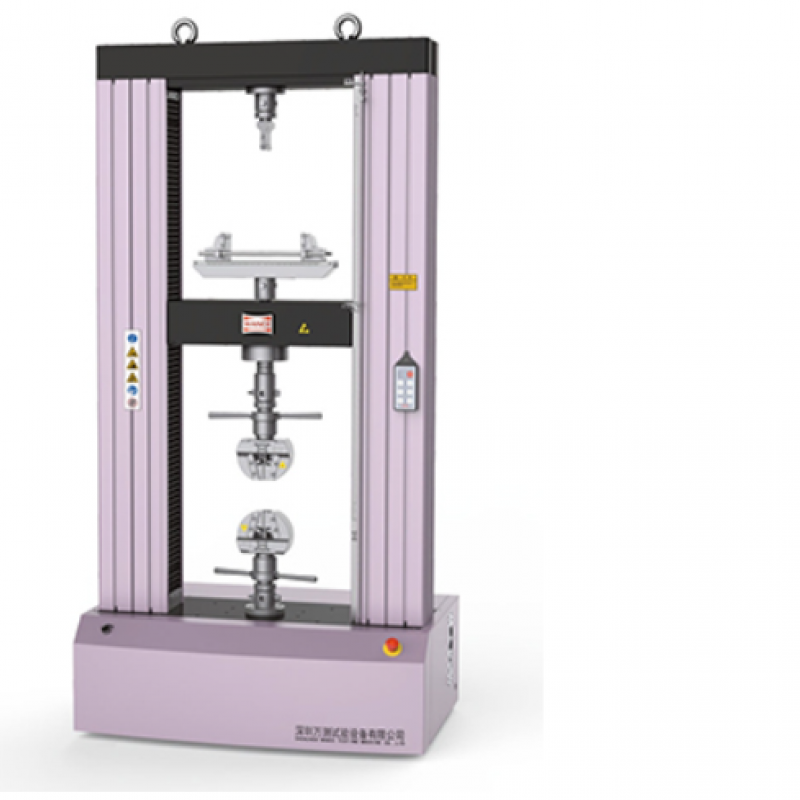

Universal testing machine ETM-D

Model: Universal testing machine ETM-D
Producer: Wance- China
Giá: Contact
The Class D ETM series fulfills the need for routine and standardized testing, providing users with high quality at the most affordable prices. Rugged construction dual column test systems are suitable ...

Product Application

  • They are commonly used for quality control and production testing.
  • Used to check the condition of materials such as: Metals, building components, large screws, composites, wood products
  • New features:
  • The sturdy guide columns increase the lateral stiffness and ensure a linear cross stroke. This leads to precise cross-linking, thus reducing variability in the measurement data and producing better overall accuracy.
  • Clutchless drive, rated for top speed at full force
  • Compact design saves laboratory space
  • Wider test width
  • High quality at an affordable price
  • Pre-loaded ball screws and heavy-duty bearings ensure long life with no backlash as well as low linear forces and zero performance. The results are accurate and reproducible measurements that truly represent sample characteristics rather than load frame defects.
  • Fully protected lead screw caps provide longer life and better operator protection
  • Easy-to-clean aluminum column housing with beveled corners to facilitate access to the test area. Integrated T-slots for simple, convenient mounting and positioning of test accessories
  • High speed, low vibration, world class, maintenance free, imported AC servo motor and servo controller
  • Photoelectric encoder built into the servo motor system for measuring the position of the slider
  • Built-in bidirectional load cell assembled in the center crossbar to prevent any collisions and simple to perform compression or tension tests
  • Dual travel limits on all frames provide the highest level of safety and meet all international standards
  • Remote control keypad facilitates test operation
  • Full one-year warranty on parts and labor
  • Free software upgrade

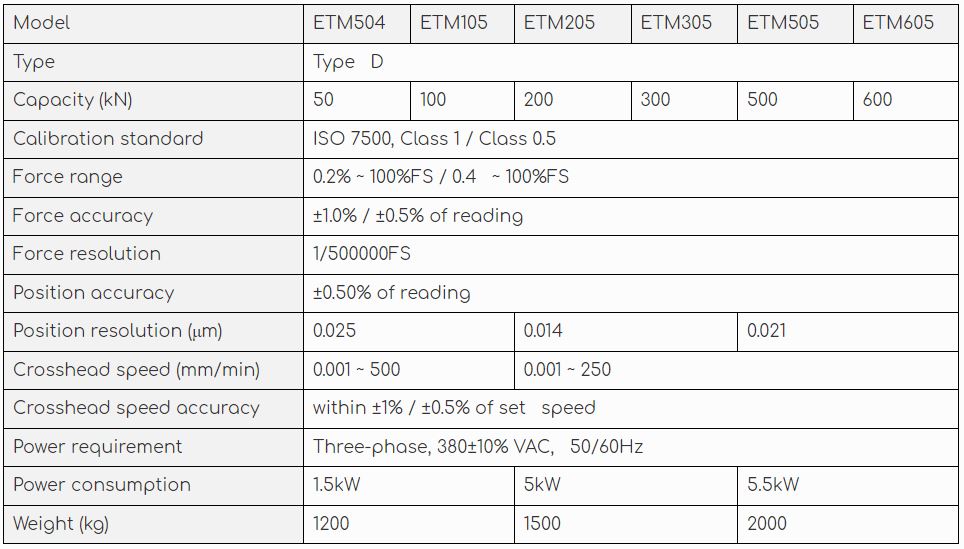

Specifications

Standard

ASTM, ISO, DIN, BS, EN…)

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
Other products
Hydraulic fatigue tester HDT- A
Model: Hydraulic fatigue tester HDT- A
Producer: Wance- China
  • HDT-A Servo Hydraulic Fatigue Tester is mainly used to test the static and dynamic mechanical properties of metals, non-metallic materials and components, elastomers and shock absorbers.
Buy product
Fatigue testing machine EDT-B
Model: Fatigue testing machine EDT-B
Producer: Wance- China
  • The EDT-B  fatigue tester is mainly used to test the static and dynamic mechanical properties of small metals, non-metallic materials, spare parts and elastomers.
Buy product
 Bending testing machine HBT165C
Model: Bending testing machine HBT165C
Producer: Wance- China
  • Metal bending strength tester
  • Model: HBT165C
Buy product
Hydraulic Fatigue Tester Servo HDT-B
Model: Hydraulic Fatigue Tester Servo
Producer: Wance- China
  • Hydraulic Fatigue Tester HDT-B used to test the static and dynamic mechanical properties of small metals, non-metallic materials, spare parts and elastomers
Buy product
Hydraulic universal testing machine
Model: Hydraulic universal testing machine
Producer: Wance- Trung Quốc
  • HUT series D-type servo-hydraulic universal testing machine is designed with top-mounted actuator structure. The two-way differential cylinder provides two-way tension and compression control in a single space.
  • The gap-free construction and the up-and-down actuator for adjusting the test space provide easy operation and high efficiency. This machine is mainly used to test the tensile strength of metal materials. It provides closed-loop control of constant force, constant displacement and constant extension, smoothly switching between them.
  • Test results can be calculated automatically and can be printed and exported.
  • Load frame configuration: 4 columns, servo-driven hydraulics
  • Capacity: 600kN, 1000kN, 2000kN
  • Test Space: Single Zone
  • Typical specimens: Fasteners, reinforcement, chains, welds, castings
Buy product
Box Compression Test
Model: Box Compression Test
Producer: Wance- China
  • This type of machine is specially designed for package compression tests.
Buy product
Fatigue testing machine EDT-A
Model: Fatigue testing machine EDT-A
Producer: Wance- China
  • This machine is mainly used to test the dynamic and static mechanical properties of small metals, non-metallic materials and parts, elastomers and shock absorbers. Complete the tests for tensile, compression, flexural, low and high cycle fatigue, crack development, fracture mechanics. It can be equipped with high temperature furnace, low temperature chamber, corrosion chamber and other environmental equipment to carry out mechanical testing of samples in different environments.
Buy product
Creep Testing machine TSC-B
Model: Creep Testing machine TSC-B
Producer: Wance- China
  • Loại máy này được thiết kế như một giải pháp chi phí thấp ứng dụng cho các ứng dụng thử nghiệm mức độ chênh lệch và vết nứt Vết nứt xuất hiện trong thời gian dài của vật liệu kim loại và hợp kim ở nhiệt độ cao
Buy product
Universal testing machine ETM-C
Model: Universal testing machine ETM-C
Producer: Wance- China
  • The Class C ETM Series fulfills standard and routine testing needs, providing users with high quality at the most affordable prices. Dual column test systems are suitable for tensile and/or compression applications with load range requirements from 500N to 50kN.
Buy product
Creep Testing machine TSC-A
Model: Creep Testing machine TSC-A
Producer: Wance- China
  • This machine is designed as a low cost solution for long-term stress cracking and creep testing applications of metal and alloy materials at high temperatures.
Buy product
Torsion testing machine ETT-A
Model: Torsion testing machine ETT-A
Producer: Wance- China
  • This series of torsion testers are specially designed to test the torsion of bolts and nuts according to ISO16047. It can determine the torque coefficient K, the total coefficient of friction, the coefficient of friction between the threads, the coefficient of friction between the bearing surfaces and other parameters.
Buy product
Universal testing machine ETM-B
Model: Universal testing machine ETM-B
Producer: Wance- China
  • The Class B ETM Series fulfills the need for routine and standardized testing, providing users with high quality at the most affordable prices. Dual column test systems are suitable for tensile and/or compression applications with load range requirements from 10N to 10kN.
Buy product
Hydraulic universal testing machine HUT-DP
Model: Hydraulic universal testing machine HUT-DP
Producer: Wance- China
  • Test Type: Tensile & Slip Strength, Permanent Elongation & Tensile Strength, Static Tension Test, Static Compression Test, Cyclic Tension & Compression Test
  • Load frame configuration: 4 columns, servo-driven hydraulics
  • Capacity: 600kN, 1000kN, 2000kN
  • Test Space: Single Zone
  • Typical specimens: Fasteners, reinforcement, chains, welds, castings
Buy product
Universal testing machine ETM-A
Model: Universal testing machine ETM-A
Producer: Wance- China
  • The Class A ETM Series fulfills the need for routine and standardized testing, providing users with high quality at the most affordable prices. Single column test systems are suitable for tensile and/or compression applications where tests are smaller than 5 kN and laboratory space is limited. They are commonly used for quality control and production testing.
Buy product
Experimental steel tractor HUT-C
Model: Experimental steel tractor HUT-C
Producer: Wance- China
  • Universal Compression Tractor
  • Model: HUT-605C
  • Manufacturer: WANCE
Buy product
Bending testing machine HBT-A
Model: Bending testing machine HBT-A
Producer: Wance- China
  • This series of bending testers is designed with a 3-cylinder construction, allowing quick and free span adjustment and 180 degree bending test. It is widely used to test the bending of metal materials. It provides constant load speed and constant displacement speed control, switchable from one to another. This equipment is widely used in steel industries, quality laboratories, research institutes, universities, etc.
Buy product
Hydraulic universal testing machine HUT-A
Model: Hydraulic universal testing machine HUT-A
Producer: Wance- China
  • Tensile & Slip Strength, Permanent Elongation & Tensile Strength, Static Tension Test, Static Compression Test, Tensile & ...
Buy product
Compression flexural testing machine
Model: Compression flexural testing machine
Producer: Wance- China
  • This type of machine is used to determine the compressive strength of building materials.
Buy product
Compression testing machine HCT-A
Model: Compression testing machine HCT-A
Producer: Wance- China
  • Concrete compressor HCT-A
  • Hydraulic Compression
  • Capacity: 600kN, 1000kN, 2000kN, 3000kN
Buy product
