Ứng dụng sản phẩm

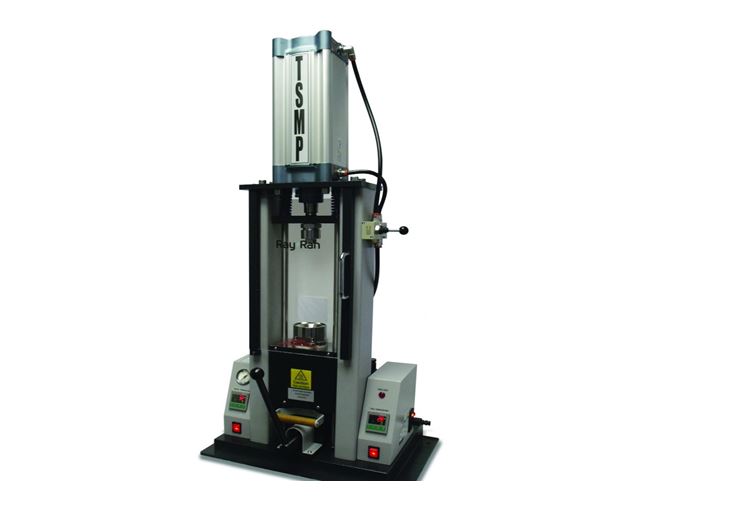

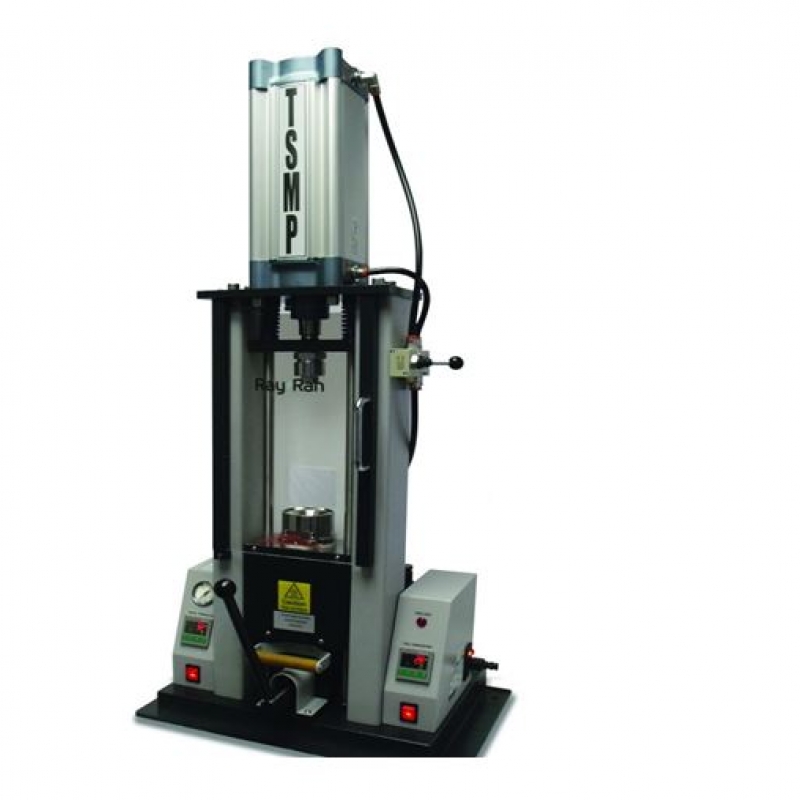

- The Ray-Ran Prototyping Injection Molding Machine is specially designed to produce a wide variety of laboratory test specimens such as chip bars, tensile and impact test specimens as well as small samples required for the testing process. mechanical test.
- The low-cost machine comes with a compact desk-mount design, making it ideal for R&D Institutes, Universities, laboratories and small workshops.
- The unit is pneumatically operated with an inlet air pressure of up to 10 bar (150 psi), sufficient to mold most materials including Polypropylene, Polyethylene and PET with injection pressures up to 450 bar (6500 psi). )
Thông số kỹ thuật
- Operated by compressed air
- Maximum air flow pressure: 150 psi / 10 bar
- Maximum polymer pressure: 6500 psi / 450 bar
- Maximum compression size: 47cm³
- Maximum sample size 175mm (L) x 45 (W) x 12.7 (T)
- Digital temperature control
- Automatic nozzle locking device
- Cam Lock Tool
- Quick Change Cylinders, Nozzles & Molds
- Locker warning light
- Power supply: 240v 50Hz
Supply includes:
- Test Sample Injection Moulding Apparatus Including Standard Tool Block and Digital Tool Heating Package
- Dog Bone Insert (165mm x 19mm) for ASTM D638-1
- Rectangular Insert 127mm x 12.7mm for ASTM D790
- Operting Manual
Tiêu chuẩn
