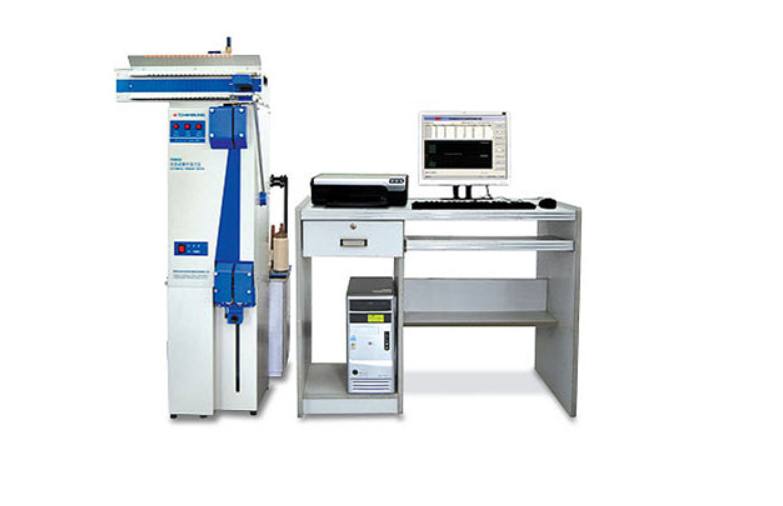

Automatic yarn strength tester YG063G

Product Application
Specifications
Standard
Video

Product Application

Used to test indicators of yarn breaking strength, breaking speed, breaking strength, etc. , accurate test data, reliable performance, easy operation, convenient service, etc.

Specifications

SPECIFICATION

Principle of constant elongation rate test (CRE) Sample length 500mm ± 1mm
Force test range, 50mm ＜1.5cNE Length range 0~250mm, error＜±1mm Tension speed range 50mm/min~5000mm/min
Pre-tensioning range 2cN~150cN
Sampling length at intervals 0~100m
Test content 1~100 times/tube, 1~40 tubes/group, total 2000
Breaking force output index, breaking speed, breaking time, breaking work, breaking strength, tension CV value, elongation CV value, tension value and maximum elongation, minimum strain and elongation values, minimum 5th percentile mean, confidence intervals, spline graphs, scatter plots, histograms and corrected breaking strength, and more.
Power supply voltage AC220V ± 10% frequency 50Hz ± 5% power consumption ≤400W
Ambient temperature 20℃ ± 10℃ humidity 60 ± 15% RH COMPONENTS
It includes testing machine, printer, working table and fiber sieve.
Power supply voltage AC220V±10% frequency 50Hz±5% power consumption ≤400W
Ambient temperature 20℃±10℃ humidity 60±15%RH COMPOSITION
It includes testing machine, printer, working table and spool.
Power supply voltage AC220V±10% frequency 50Hz±5% power consumption ≤400W
Ambient temperature 20℃±10℃ humidity 60±15%RH COMPOSITION It consists of tester, printer, working table and spool.

Standard

Video

Please contact us for advice and support
⇒ Mr. Ba: 0948.27.99.88

⇒ Or leave a message and we will call you directly. Thank you very much!
