Products  Yarn testing equipment

Wrap Reel TY360A/B

Model: Wrap Reel TY360A/B
Producer: TESTEX-China
Giá: Contact

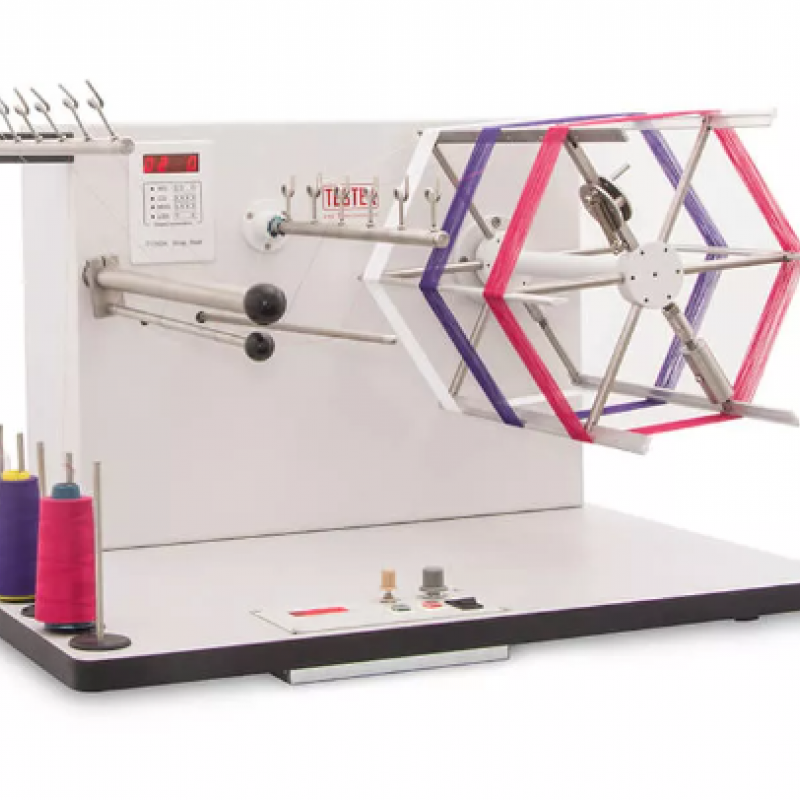

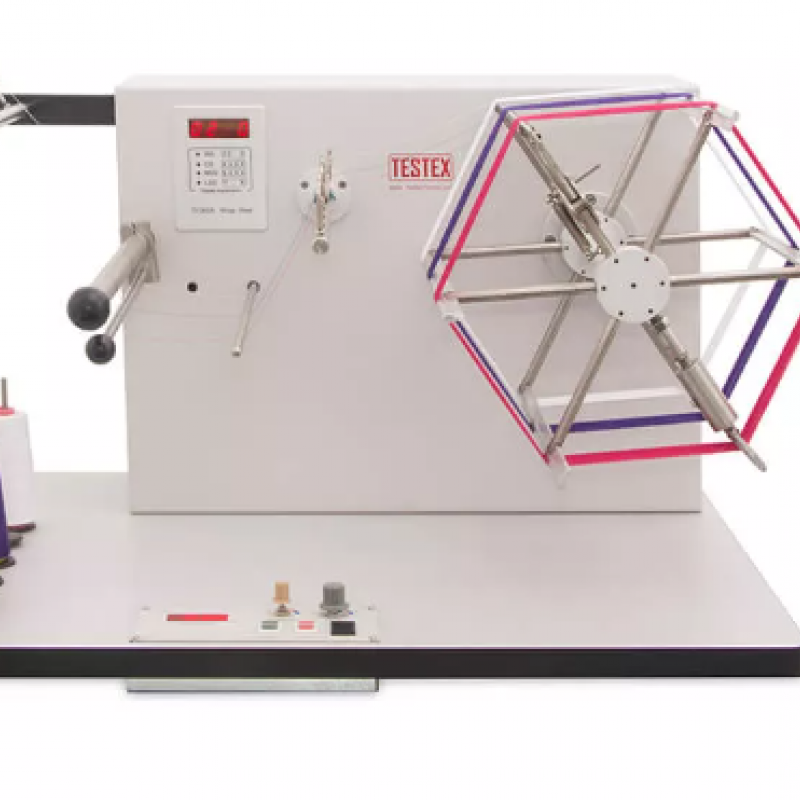

Wrap Reel, to produce skeins of yarn of a pre-determined length and number of turns for count and strength testing. Yarn Length Measuring Device complies with ISO 2060, ASTM D1907/2260, BS ...

Product Application

  • Wrap Reel Machine, to measure skeins of yarn of a pre-determined length and number of turns for count and strength testing. 1 Metre, 36″ or 54″ circumference collapsible swift (specify). Wrap reel Complete with yarn package stand and pre-tension device, fitted with a pre-determined counter.
  • The wrap reel can be used to assess the thread density of yarns, fibre filaments, etc. It can also be used to do specimen preparation for yarn strength and is widely used in central laboratories of textile enterprises, testing institutes, quality control, and law enforcement units and research institutes.
  • The wrap reel gives the length of one loop for every loop of yarn wound, therefore the yarn tension affects the length of the winding, the more loops the greater the difference in accumulated length. The TESTEX wrap reel starts and stops smoothly without additional tension shocks, which effectively avoids the phenomenon of rushing laps. In addition, it has low operating noise, accurate lap counting, and good reliability with a low failure rate.

Specifications

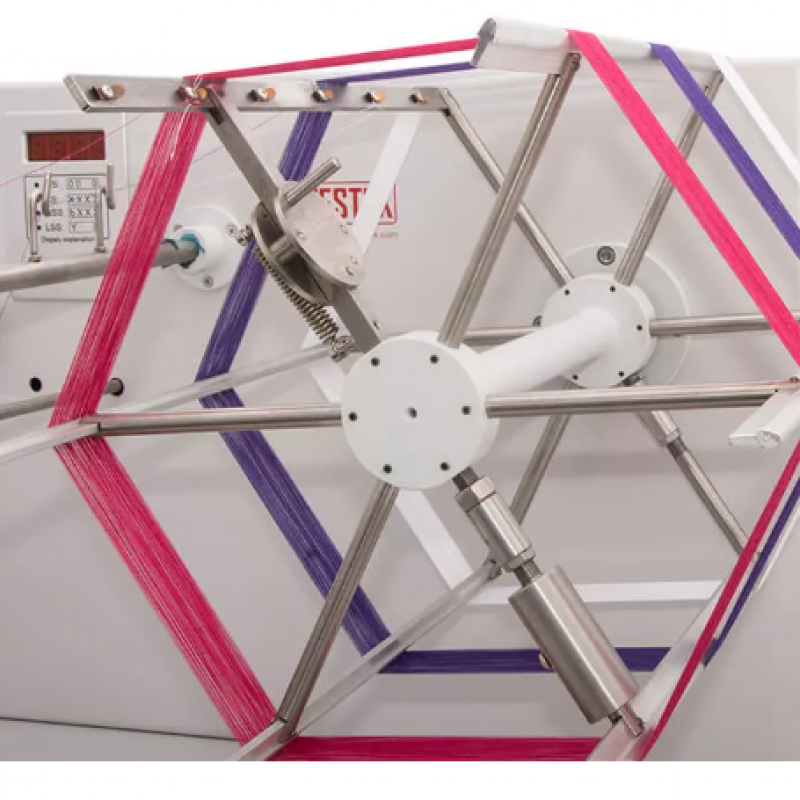

Circumference of winch

TY360A    1000 ±1 mm

TY360B    54 ± 1/16 inch

  • Number of wraps                  1 ~ 9,999Ÿadjustable
  • Pre-tension                                      adjustable
  • Traveling reciprocating distance        35 mm
  • Spacing of spindles                          60 mm
  • Reel speed                           30 ~ 280 r/min (adjustable)
Weight          45 kg
Power           220/110 V    50/60 Hz
Dimensions      Length:    900 mm    Width:    610 mm    Height    610 mm

Standard

  • ISO 2060
  • ASTM D1907
  • Step 1    GB/T 6838    GB/T 14343
  • GB/T 4743

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
