Ứng dụng sản phẩm

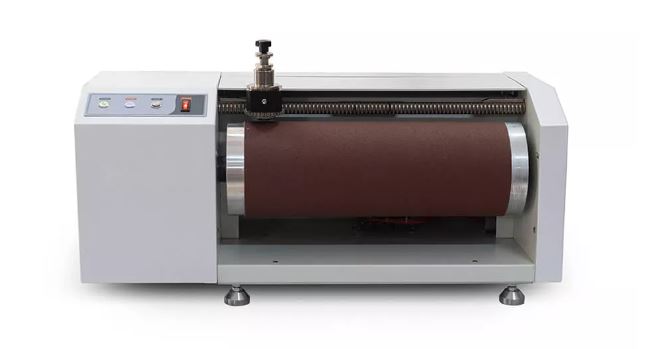

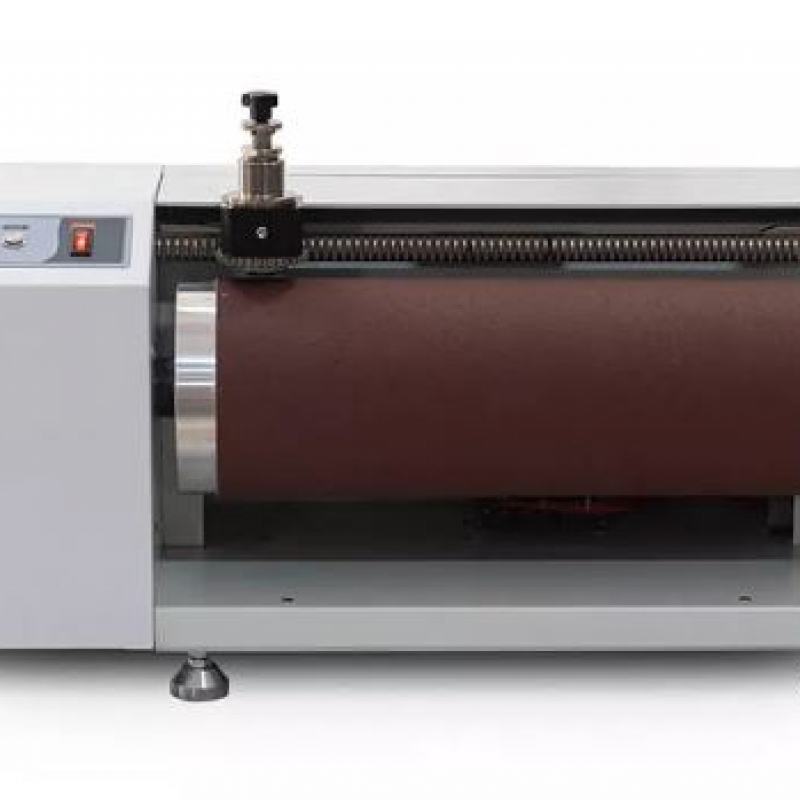

- DIN Abrader (DIN Abrasion Tester) is applicable to test the wear resistance of various materials, such as polyester soles, shoe soles and polymer sheet materials. Furthermore, it conforms to DIN 53516, ASTM D5963-04, ISO 4649, ISO 20344, etc. By rubbing the specimen with a spinning wheel and sandpaper, the test is finally stopped when the surface of the cloth has wear that meets the standard requirements.
- According to the test results, you can find out the wearing performance of the fabric by comparing it with the standard sample. The DIN TF215 Abrasion Tester offers a wide test area to meet most requirements with additional and necessary balance. If you are looking for a specially customized DIN Abrasion Tester, it can be your best choice as it is featured by top quality and safe operation.
Thông số kỹ thuật
Specifications
- Load weight: 5N,10N
- Matte roll: Diameter 150mm, Length 460mm
- Rotation speed: 40rpm
- Bracket travel distance: 4.2mm per revolution
- Standard equipment
Meter
- pre-grinding block
- sampling plate
- Brush
- Weight: 2.5N, 5N
- Optional accessories
Dumbbell
- Sandpaper: No. 60
- Standard Reference Glue No. 1
- Standard Reference Glue No. 2
Weight
Power
Size
- Length: 750mm Width: 300 mm Height: 420 mm
Tiêu chuẩn
- ISO 20344 - 8.4
- ASTM D5963
- GB/T 9867
- SATRA TM174
- ISO4649
Video
