Product Application
- This tester can test easily and quickly all operations and data management through PC, and required test data can be recalled, edited and managed at any time .
Specifications

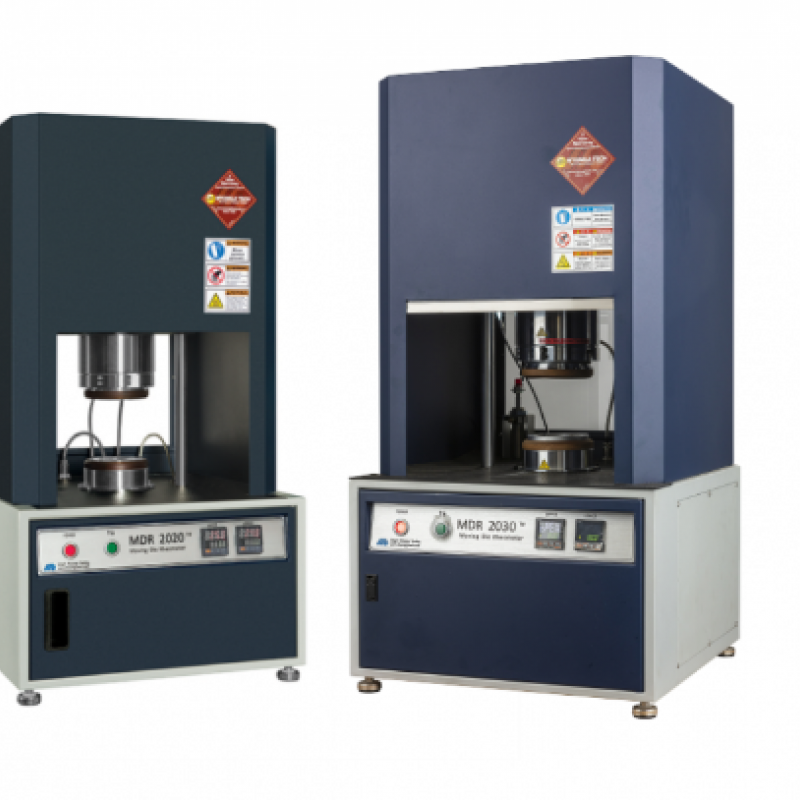

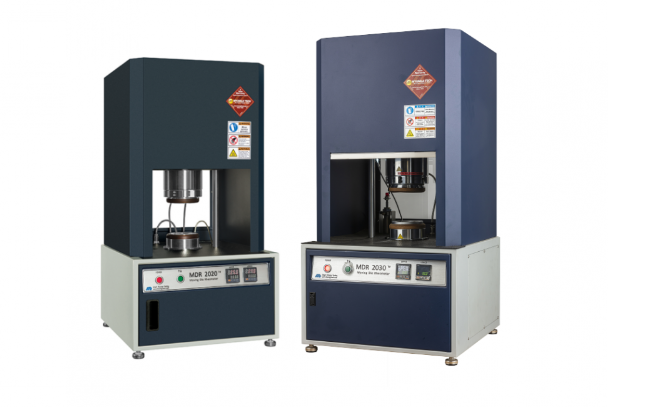

Specification of MDR (ODR)-2020:
- Power: AC 220V 60Hz (50Hz: Optional)
- Electric power: 1.2KW
- Movement: Operated by geared motor.
- Temperature range: Ambient temperature +10 ~ 200 °C (230 °C: Optional)
- Temperature control: Digital P.I.D control.
- Thermal sensor: PT 100Ω
- Compressed air: 4kg/ (4.1bar, 60psi)
- Controlled by: Windows operating system COMBO software.
- Accessories include: Gas regulator, O-ring, O-ring guide, Sampling unit (Brass brush, Copper rod), Operation manual, Cable, Program CD, Auxiliary fuse , torque benchmark.
- Standard: ASTM D5289, KS M ISO 6502
- Dimensions: 535(W) × 550(D) × 1,100(H) mm
- Weight: Approx. 100kg
- Frequency: 100 CPM.
- Oscillation amplitude 1° (Standard) / 0.5°, 3° (Optional).
Provide cover:
- Main machine and standard accessories: 01 pcs
- English and Vietnamese user manual: 01 set
