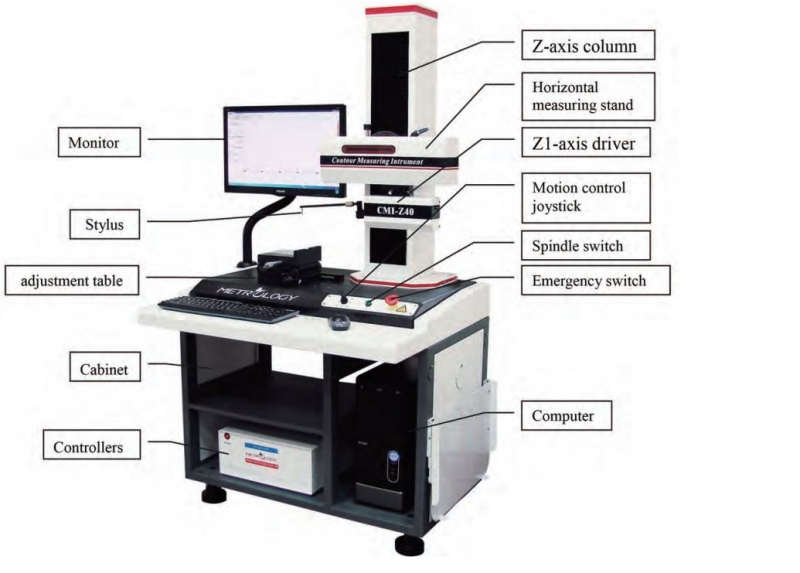

Contour Measuring Instrument CMI-Z40

Ứng dụng sản phẩm

PRINCIPLE OF ORIGIN Meter CMI-Z40 METROLOGY

The measuring principle of this equipment is rectangular coordinate measuring method, through the X-axis, Z-axis sensor, map the surface contour coordinate point of the part to be tested, transmit the coordinate point data to the upper PC by electrical components.
The computer will perform mathematical processing on the coordinate data initially collected by the software, marked with the necessary engineering survey projects.

SOFTWARE FUNCTIONS OF CMI-Z40 METROLOGY

X and Z1 use electronic digital sensor, with large measuring range, high accuracy and high repeatability.
Large range design, leverage ratio only 1:2.2, maintain the original accuracy of the sensor.
Adopting high-speed data acquisition unit, hardware trigger and high-speed sampling, no delay, computational processing system provides the strongest guarantee.
High rigidity, high precision linear guide, high precision digital linear sensor.
The software supports Chinese, English and supports XP, win7, win8, win10 systems.
It has the functions of automatic stylus contact, auto lift and auto retract, can capture the start and end points, and can set the travel speed according to needs.

FUNCTIONS AND FEATURES OF CMI-Z40 METROLOGY

Measure dimensions: contains horizontal distance, vertical distance, linear distance, radius and diameter.
Measure angle: horizontal angle and vertical angle.
Measure position tolerance: contains parallelism and perpendicularity.

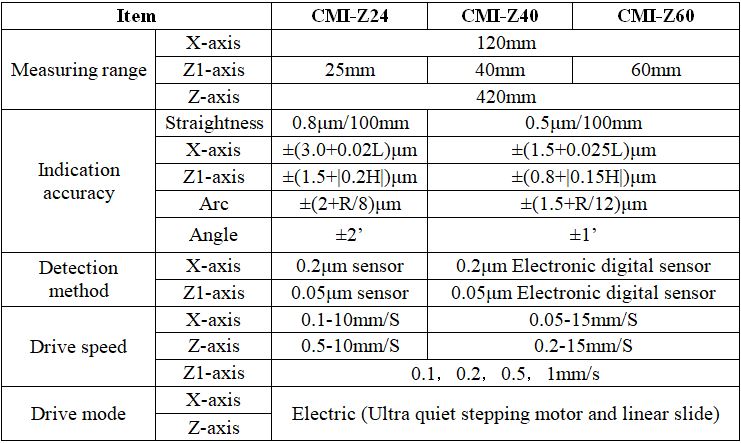

Technical specifications

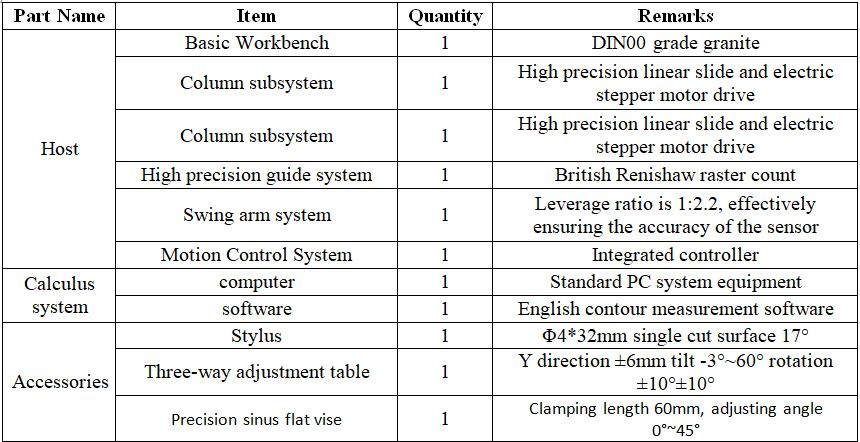

Device Configuration

Please contact us for advice and support
⇒ Mr. Ba: 0948.27.99.88

⇒ Or leave a message and we will call you directly. Thank you very much!

Other products

Model: CMM-564M

Producer: Metrology-Taiwan

The spherical CMM metrology CMM 3D measuring body is inherited from the craftsmanship of the German M&S Group.
X-axis has precise triangular or rectangular beam structure, adopts advanced FEM (finite element method) method to give it high rigidity, ensures no deformation and warping to ensure guarantee linear accuracy.
The Y-axis guide adopts high-precision dovetail style, avoiding curvature and twisting, to ensure positional accuracy and stability.
The use of three axes of quality DIN00 grade granite ensures the coefficient of expansion

Buy product

Model: ULM-9000C

Producer: Metrology-Taiwan

ULM-9000C is a device that includes a standard gauge, a multi-function measuring table, a holder and software that allows the calibration of the length of the measuring instruments to be checked and calibrated. Combine with computer to get data, set color for each length range, edit and give report.

Buy product

Model: CMI-Z60R

Producer: Metrology-Taiwan

Profile measurement: The measuring principle of this device is a rectangular coordinate measurement method, through X-axis, Z-axis sensors, mapping the surface contour coordinate point of the part to be tested, transmitting point coordinate data to the upper PC by electrical components. Perform mathematical processing on coordinate data initially collected by software, marked with necessary engineering survey projects.
Roughness measurement: Using differential inductive roughness sensor, which is advanced and highly sensitive inductive coil structure design and technology. It still has extremely high linear accuracy across a wide range of measurements. The measuring device uses a guide-free design technology and uses precision slip as the measurement standard. , only the residual value of the envelope is less than 0.005μm, and the measurement accuracy is high.
In addition to measuring the absolute position of the surface roughness of the part, it also has an advantage and outstanding measurement ability when measuring the roughness of inclined surfaces and arcs.

Buy product

Model: VOP-26

Producer: Metrology-Taiwan

Vertical optical projector, also known as Vertical Optical Projector, has the effect of magnifying the projection or shadow of the product onto a projection screen and then using tools to measure the dimensions of the product.
The machine uses 2 halogen light sources that shine from the top down and from the bottom up.
Today, the machine is also equipped with a sample trackpad located on the guide rail and mounted with an optical ruler. The user can measure the distance by moving the sample with 2 handwheels on the sample trackpad corresponding to 2 X/Y cycles, measure the angle by rotating the projection screen, measure the diameter by comparing with the included standard diameter. .

Buy product
