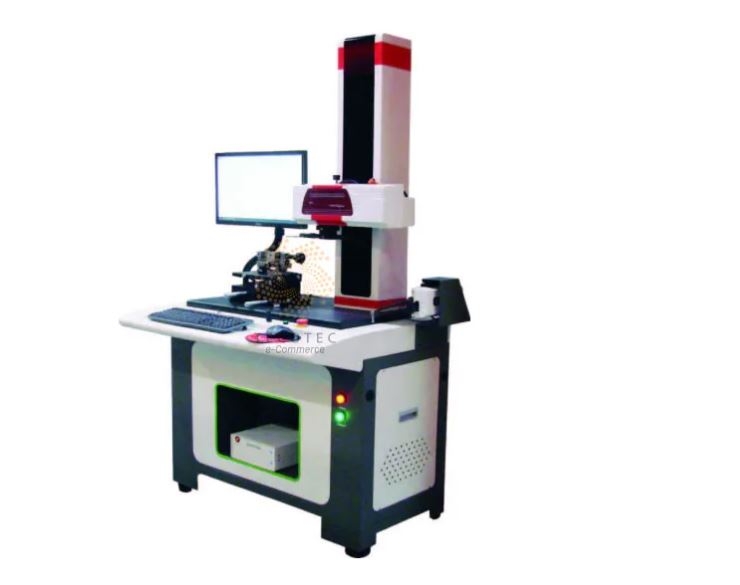

Contour Measuring Instrument CMI-Z60R

Model: CMI-Z60R

Producer: Metrology-Taiwan

Giá: Contact

Profile measurement: The measuring principle of this device is a rectangular coordinate measurement method, through X-axis, Z-axis sensors, mapping the surface contour coordinate point of the part to be tested, transmitting ...

Ứng dụng sản phẩm
Thông số kỹ thuật
Tiêu chuẩn
Video

Ứng dụng sản phẩm

Dimensions: horizontal distance, vertical distance, linear distance, radius and diameter
Angle: horizontal and vertical angle, angle
Position tolerance: parallelism and perpendicularity
Shape tolerances: straightness, pyramidal, arc
Subsystem: sub-point, sub-line, sub-circle
Roughness: Ra, Rp, Rv, Rz, Rz (jis), R3z, RzDIN, Rzj, Rmax, Re, Rt, Rq, Rsk, Rku, Rsm, Rs, Rq, Rk, Rpk, Rvk, Mr1, Mr2, Rmr
Wavelength: Wa, Wt, Wp, Wv, Wz, Wq, Wsm, Wsk, Wku, Wmr
Profile measurement parameters: Pa, Pt, Pp, Pv, Pz, Pq, Psm, Psk, Pku, Pmr

Thông số kỹ thuật

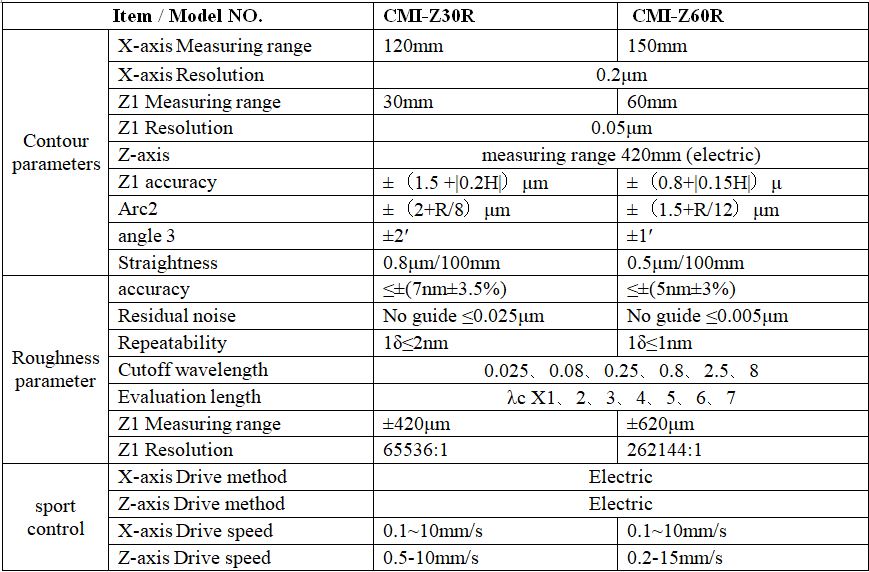

Technical specifications

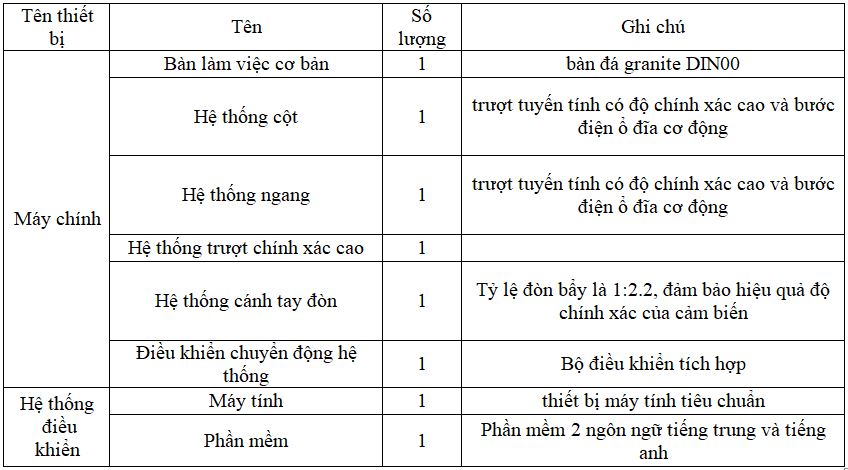

Standard accessories

Tiêu chuẩn

Video

Please contact us for advice and support
⇒ Mr. Ba: 0948.27.99.88

⇒ Or leave a message and we will call you directly. Thank you very much!
