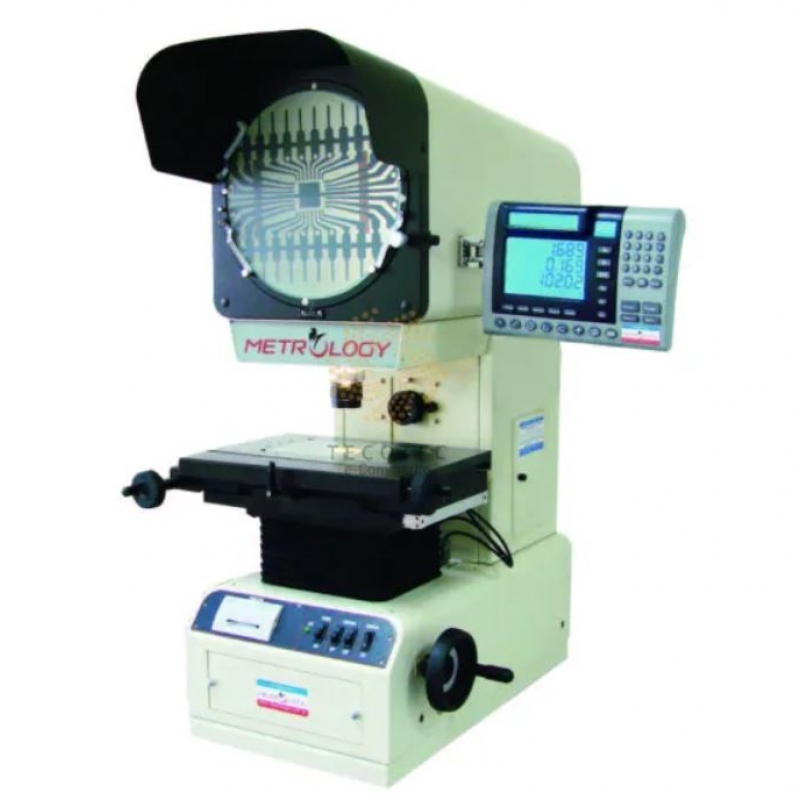

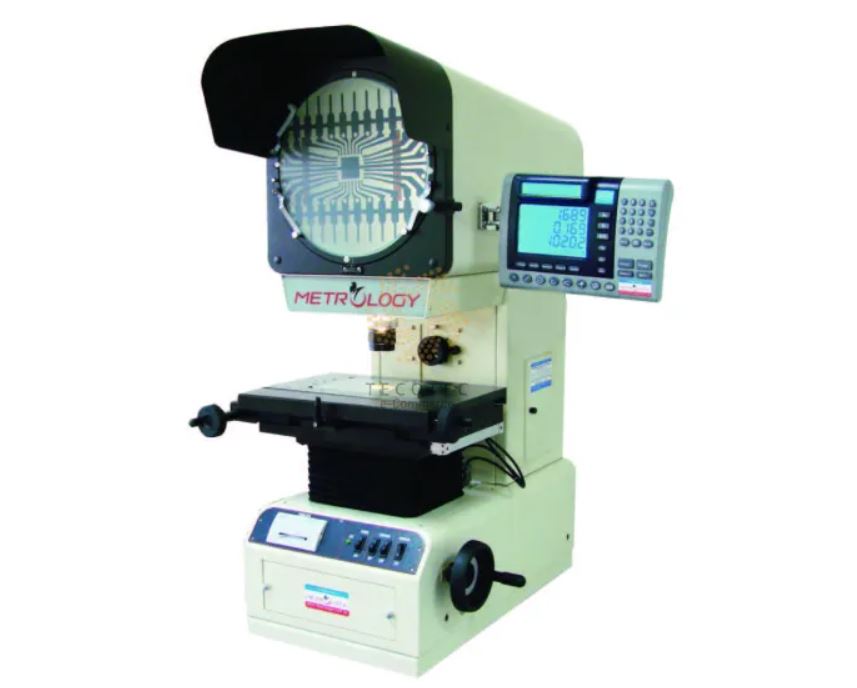

Vertical Optical Projector VOP-26

Ứng dụng sản phẩm

It is an integral measurement device that integrates optics, mechanics, electricity and computation into an organic whole
Widely used in metrology rooms, factory workshops and in the fields of instrumentation, clocks, electronic watches and industries.
The instrument is easy to use and quickly checks the configurations, surface shapes of different measuring parts, e.g. various parts, cutting and tooling of sample plates, chisels holes, cams, gears, milling cutters, tapping tools, etc
There are many versions: VOP-26, VOP-48, VOP-612

Technical parameters of the optical profile machine – Vertical Optical Projector VOP-26,VOP-48,VOP-612 METROLOGY

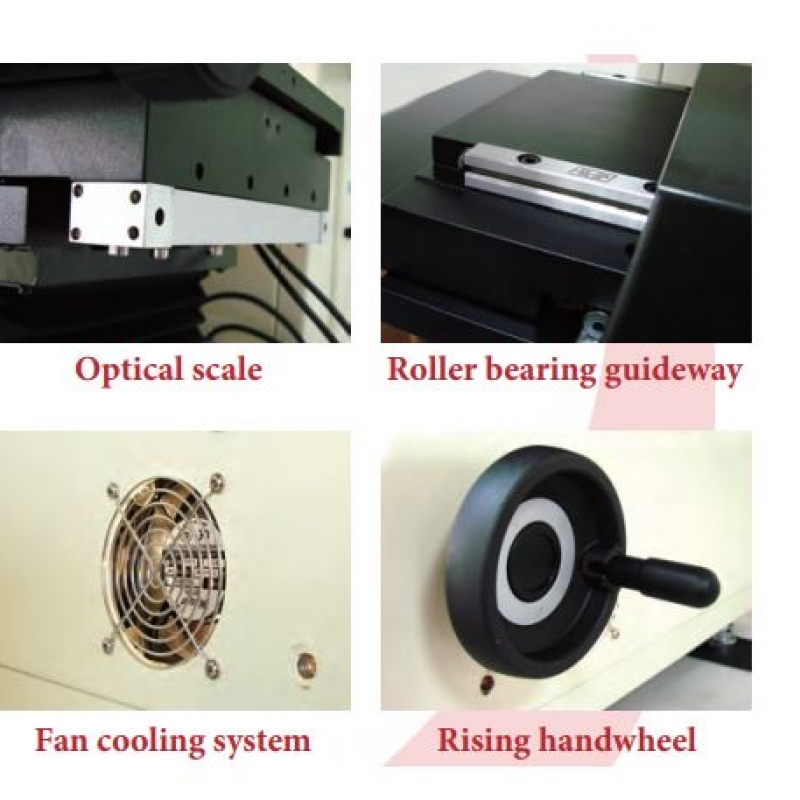

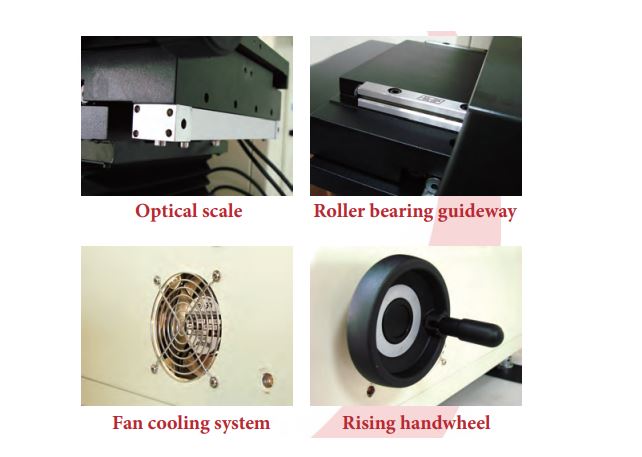

High-rigidity structural steel body with 4-fan electric cooling system

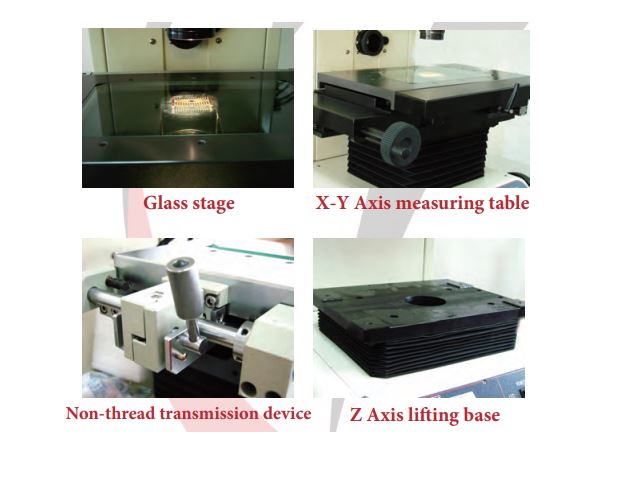

XY axis linear bearing guide & hardened steel measuring table
Threadless high-rigidity screw XY axis with fast and fine movement

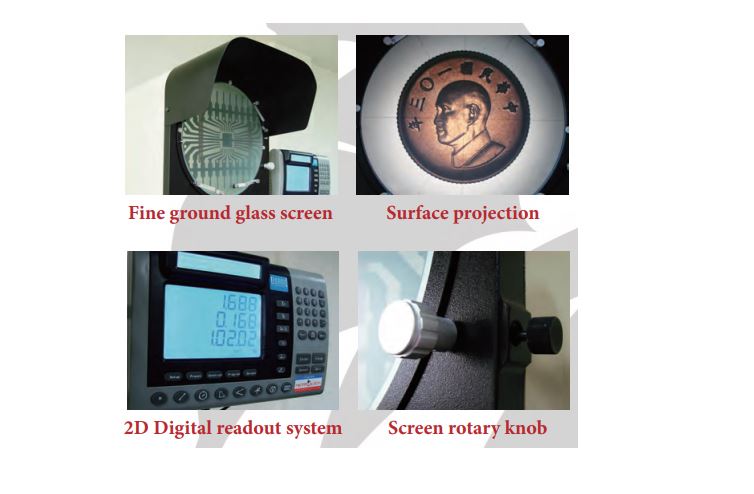

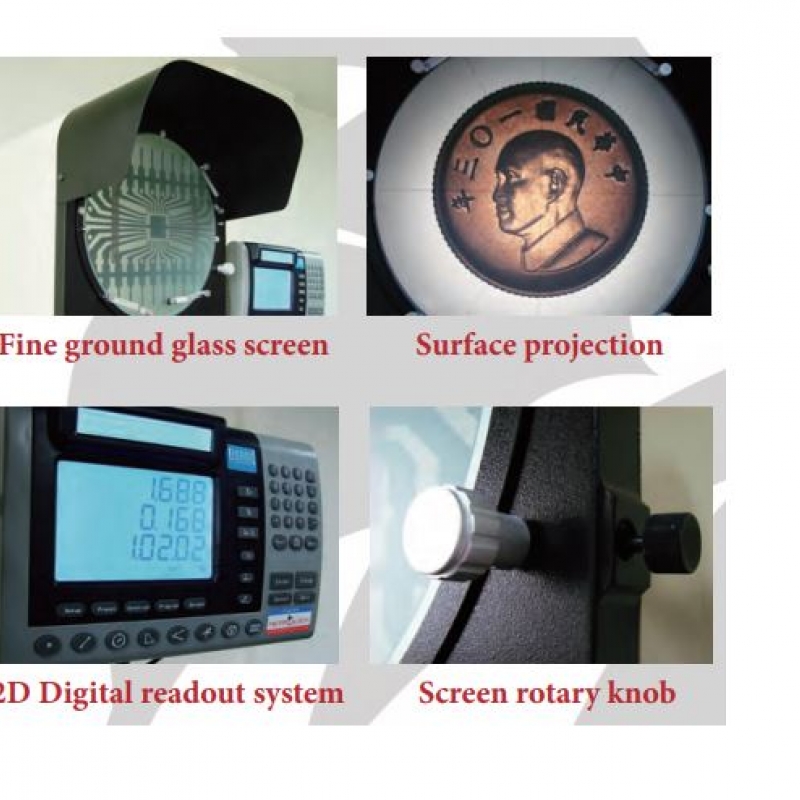

Screen diameter 12′ with 90° / 45° diagonal and 0 ~ 360 degree resolution / 0.01 degree or 1' angle
High precision linear scale XY axis Resolution: 001mm/0.0005”
Dual-axis microprocessor digital readout with keypad control box Function: 2D multipoint geometry measurement with RS232 data output
Linear accuracy: ± (3 + L / 200) m Optical accuracy: 08%
Strong transmittance and reflection illumination 24V / 150W

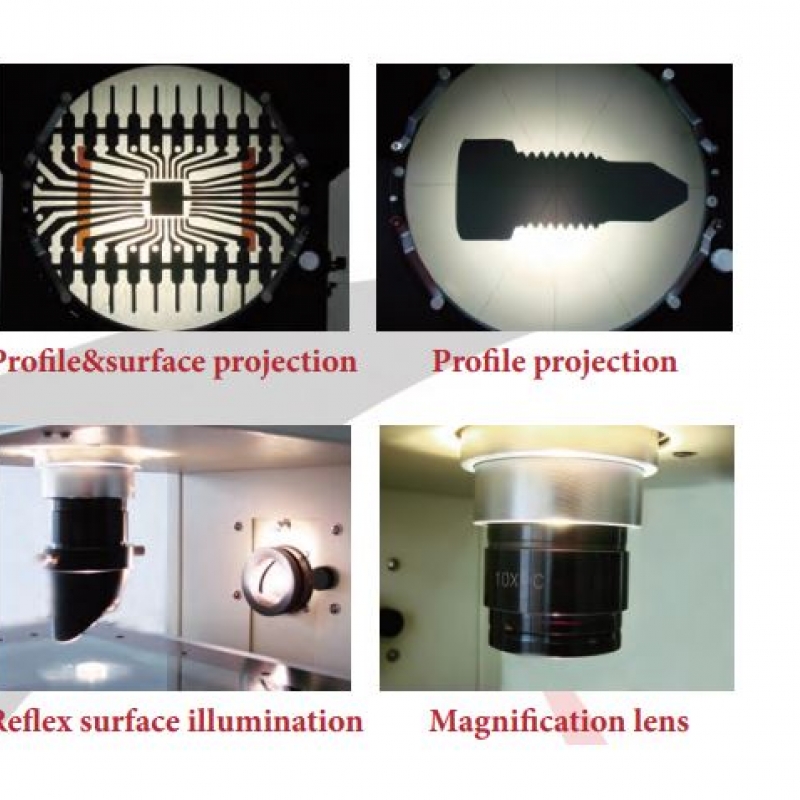

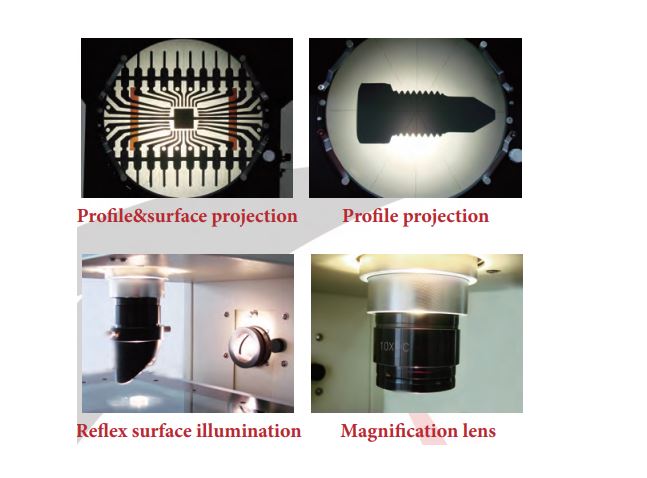

High definition optical magnifier with reflector (10X or 20X alternative)
ϕ 100mm 360° turntable & steel tool table
Dust cover & operation manual
Stage load capacity: 20kgs Net weight: 190kgs (Not include table)
Power supply: 110 ~ 240V, 50/60Hz, Maximum Power Consumption: 400W
Dimensions: 860x500x1180mm (LxWxH)
JCC ISO calibration report

Included accessories:

Please contact us for advice and support
⇒ Mr. Ba: 0948.27.99.88

⇒ Or leave a message and we will call you directly. Thank you very much!
