Coordinate Measuring Machine (Manual) CMM-564M

Model: CMM-564M

Producer: Metrology-Taiwan

Giá: Contact

The spherical CMM metrology CMM 3D measuring body is inherited from the craftsmanship of the German M&S Group. X-axis has precise triangular or rectangular beam structure, adopts advanced FEM (finite element method) ...

Other products

Contour Measuring Instrument CMI-Z60R

Model: CMI-Z60R

Producer: Metrology-Taiwan

Profile measurement: The measuring principle of this device is a rectangular coordinate measurement method, through X-axis, Z-axis sensors, mapping the surface contour coordinate point of the part to be tested, transmitting point coordinate data to the upper PC by electrical components. Perform mathematical processing on coordinate data initially collected by software, marked with necessary engineering survey projects.
Roughness measurement: Using differential inductive roughness sensor, which is advanced and highly sensitive inductive coil structure design and technology. It still has extremely high linear accuracy across a wide range of measurements. The measuring device uses a guide-free design technology and uses precision slip as the measurement standard. , only the residual value of the envelope is less than 0.005μm, and the measurement accuracy is high.
In addition to measuring the absolute position of the surface roughness of the part, it also has an advantage and outstanding measurement ability when measuring the roughness of inclined surfaces and arcs.

Buy product

Universal Length Measuring Instrument ULM-9000C

Model: ULM-9000C

Producer: Metrology-Taiwan

ULM-9000C is a device that includes a standard gauge, a multi-function measuring table, a holder and software that allows the calibration of the length of the measuring instruments to be checked and calibrated. Combine with computer to get data, set color for each length range, edit and give report.

Buy product

Vertical Optical Projector VOP-26

Model: VOP-26

Producer: Metrology-Taiwan

Vertical optical projector, also known as Vertical Optical Projector, has the effect of magnifying the projection or shadow of the product onto a projection screen and then using tools to measure the dimensions of the product.
The machine uses 2 halogen light sources that shine from the top down and from the bottom up.
Today, the machine is also equipped with a sample trackpad located on the guide rail and mounted with an optical ruler. The user can measure the distance by moving the sample with 2 handwheels on the sample trackpad corresponding to 2 X/Y cycles, measure the angle by rotating the projection screen, measure the diameter by comparing with the included standard diameter. .

Buy product

Contour Measuring Instrument CMI-Z40

Model: CMI-Z40

Producer: Metrology-Taiwan

The measuring principle of this equipment is rectangular coordinate measurement method, through the X-axis, Z-axis sensor, map the surface contour coordinate point of the part to be tested, transmit point coordinate data to the upper PC by electrical components. Perform mathematical processing on coordinate data initially collected by software, marked with necessary engineering survey projects.

Buy product

Coordinate Measuring Machine (Manual) CMM-564M

Ứng dụng sản phẩm

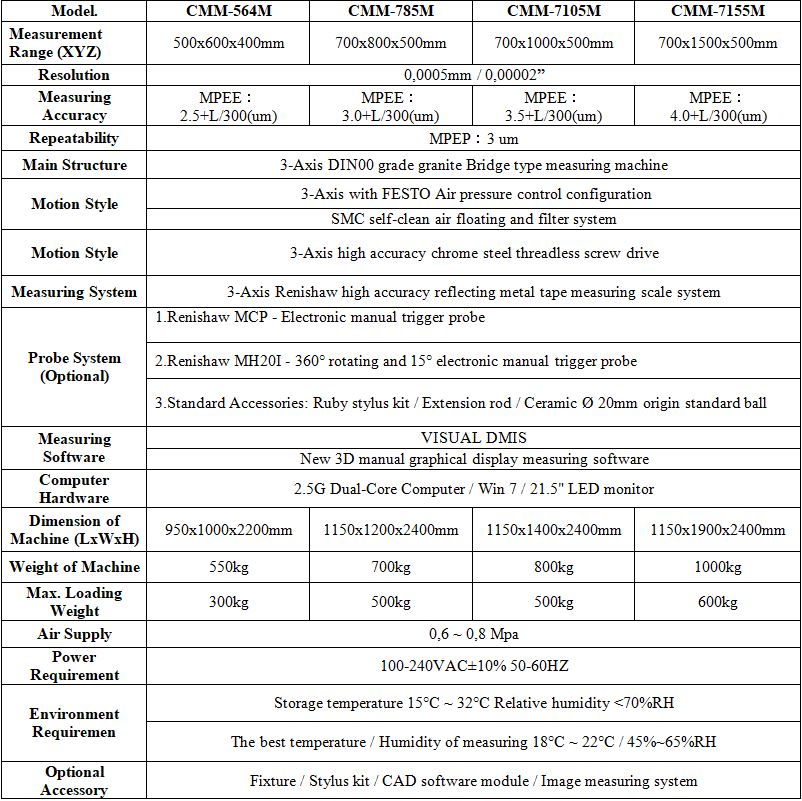

Thông số kỹ thuật

Tiêu chuẩn

Video
