Ứng dụng sản phẩm

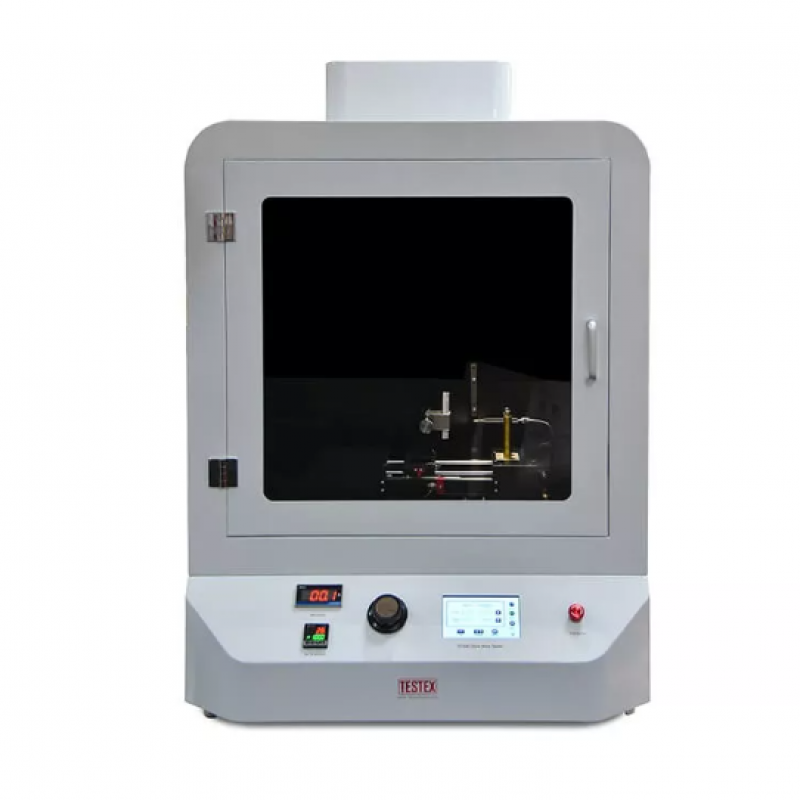

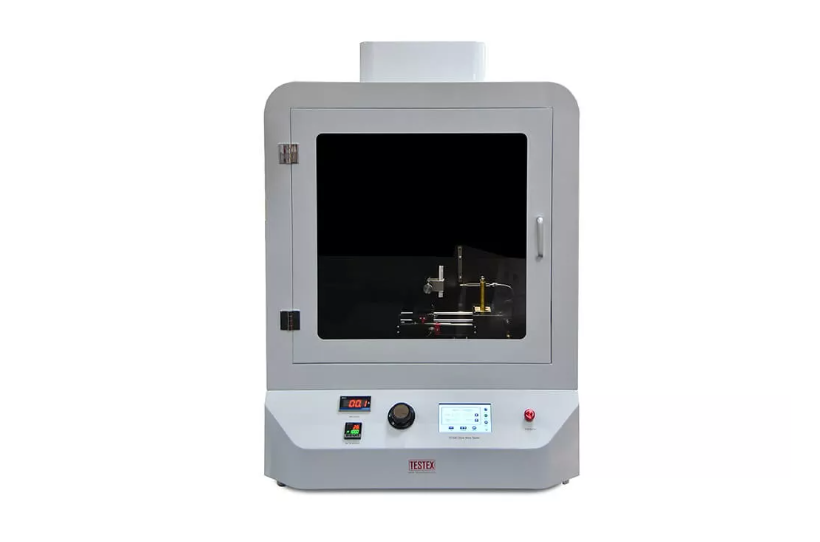

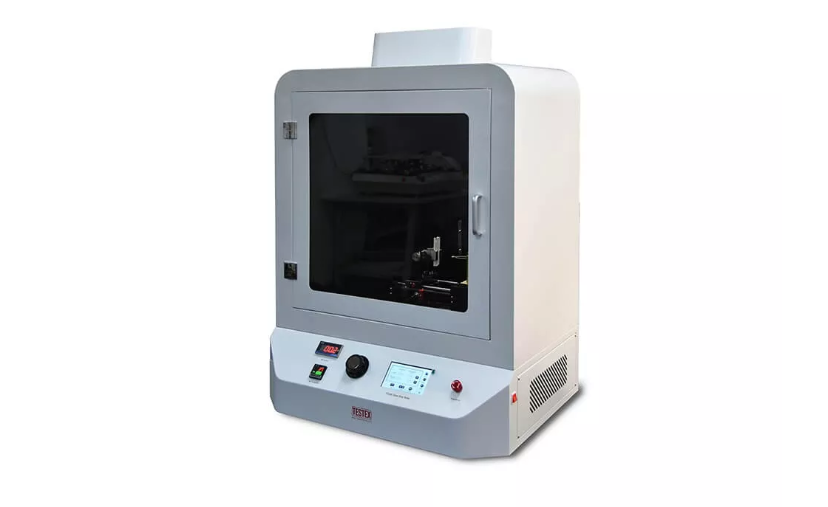

- Glow Wire Tester to determine the fire hazard of electrical parts and components. For example, overload, short circuits, poor connections, or others that could ignite and spread the flame to the other part. This instrument is suitable for testing plastic and non-metallic insulating material parts for electrical and electronic products, components, and household electrical appliance parts, e.g. switch housings, relay sockets, etc.
- TESTEX Glow Wire Tester, using the indirect method. (Known as the IEC method, compared to the direct method defined in UL94 method). This device applies heat to the specimen over a period of time, simulating an overloaded resistor or other ignition sources, to reproduce as closely as possible what actually occurs.
- In addition, we have other flammability test equipments that cater to different test ranges and requirements, they comply with complies with ASTM D1230, FTMS191-5908, BS EN71-2:2006, ISO 15025, FMVSS 302, ASTM D6413, UL HB, etc.
Thông số kỹ thuật

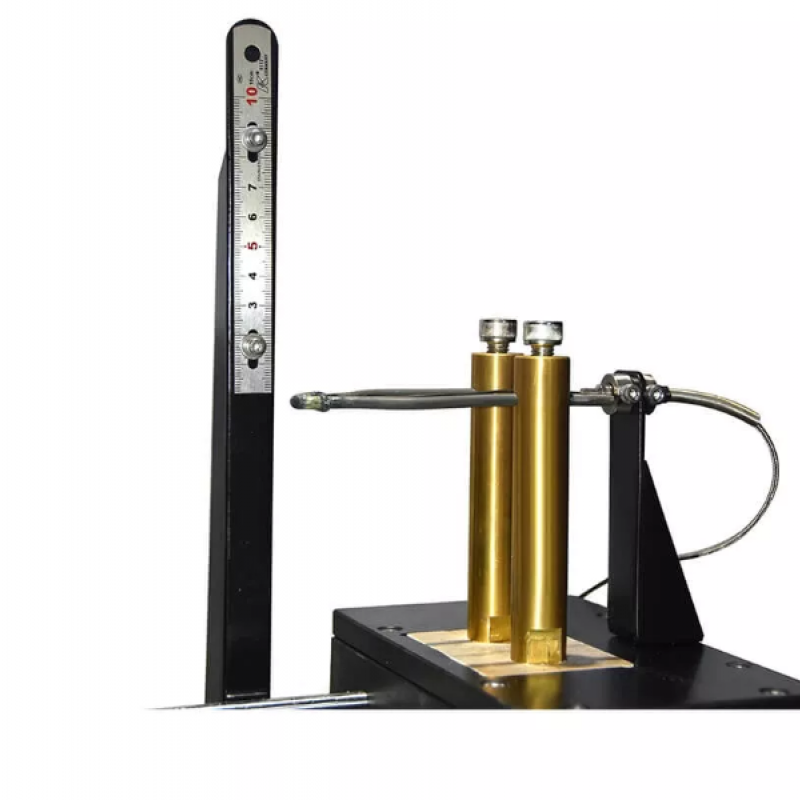

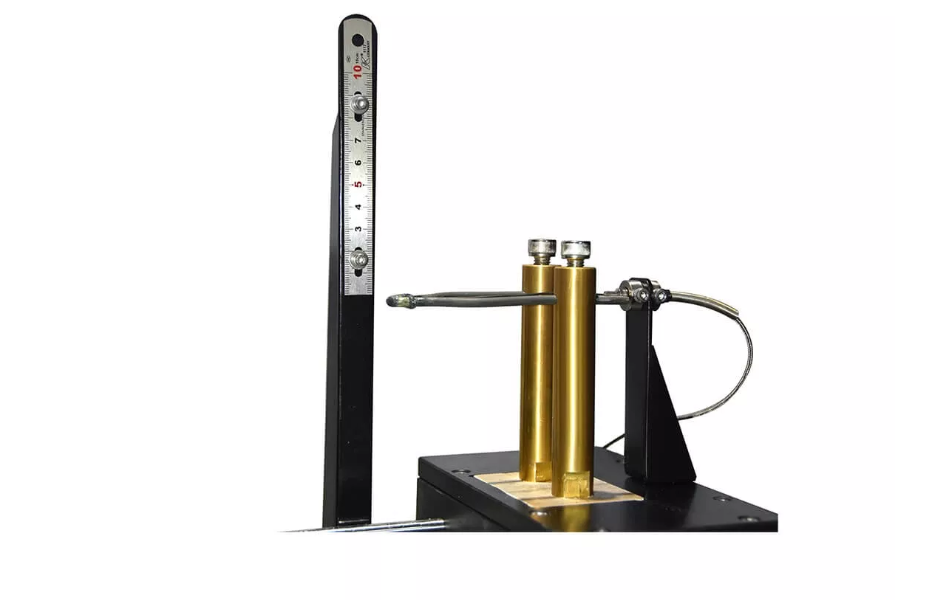

- Glow Wire Ø 4mm ± 0.04mm Ni/Cr (80/20), standard
- Temperature Range: indoor temperature ~ 960°C, adjustable
- Sample pressure: 1N ± 0.2 N
- Test speed: 18 ± 3 mm/s
- Test mode automatic control, independent convulsions
- Chamber ≥0.5m³

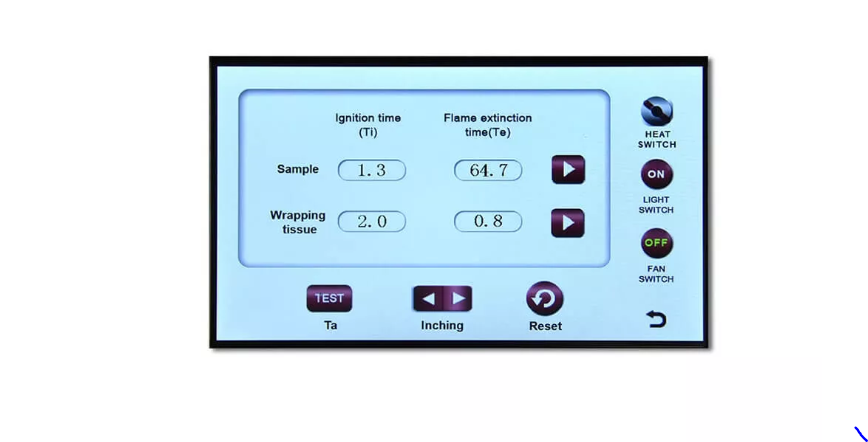

- Control single chip microcomputer + touch screen control
Weight 123kg
Power 220/110V 50/60Hz
Dimensions Length: 1130 mm Width: 570 mm Height: 1200 mm
Tiêu chuẩn
- IEC 60695-2-10
- ASTM D6194
- GB/T 5169,10~13
|
|
|
