Ứng dụng sản phẩm

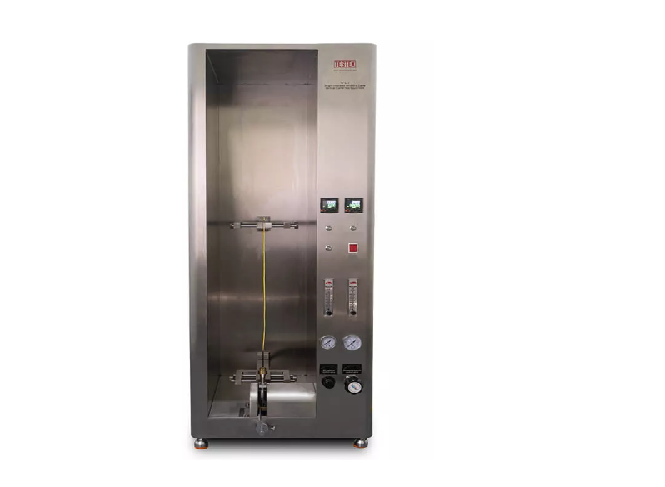

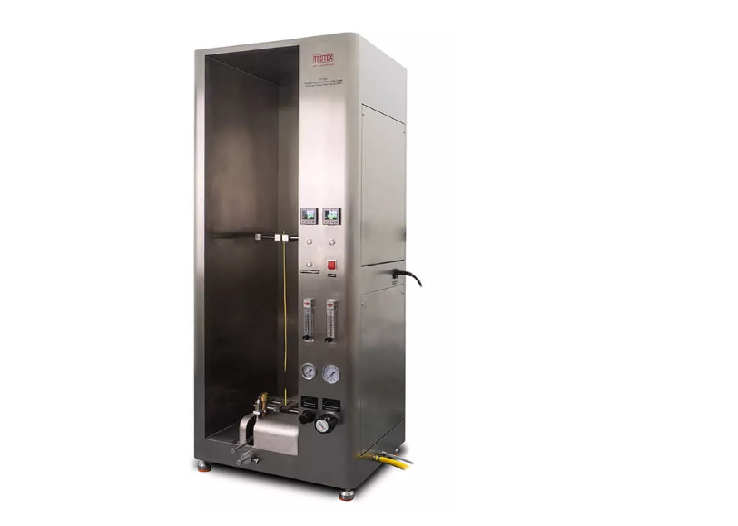

- Wire and cable vertical combustion tester is mainly for conductor diameter greater than 0.8mm (cross-sectional area greater than 0.5mm²) or less than 80mm (cross-sectional area less than 5000mm²) of the single wire and cable combustibility performance assessment. Wire & cable vertical flame tester is applicable to the research, production, and quality inspection departments of electric and electronic products and their component parts, such as lighting equipment, low-voltage appliances, household appliances, machine tool appliances, motors, power tools, electronic instruments, electrical instruments, electrical connections, and accessories.
Thông số kỹ thuật
- Burner: Inner Dia. Φ12 ± 0.5 mm
- Test inclination: 45°
- Flame height: 150 mm (adjustable)
- Ignition time: 0-999.9s ± 0.1s adjustable
- Burning time: 0-999.9s±0.1s, automatic recording, manual pause
- Combustion gas: 95% propane gas (LPG can be used instead of general conditions)
- Flow pressure: with dual flow meter and pressure gauge (gas and air)
- Temperature test range: 0~1000°C
- Flame temperature requirement: from 100±5°C to 700±3°C within 45±5 seconds
- Temperature measurement thermocouple: Φ0.5mm imported armored thermocouple (K type)
- Test process: automatic control of the test program, no independent air extraction
- Body material: stainless steel chassis
Weigh 75kg
Power 220V 50Hz 100W
Dimension Length: 450 mm Width: 300 mm Height: 1250 mm
Tiêu chuẩn
- IEC 60332-1
- GB/T 18380.11-13
