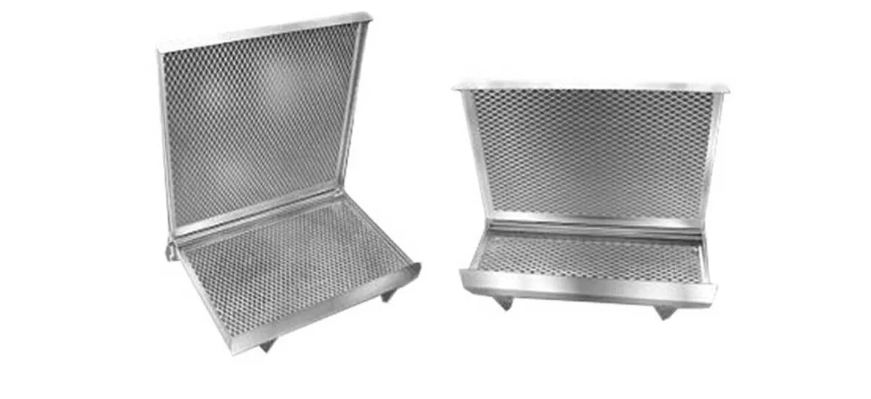

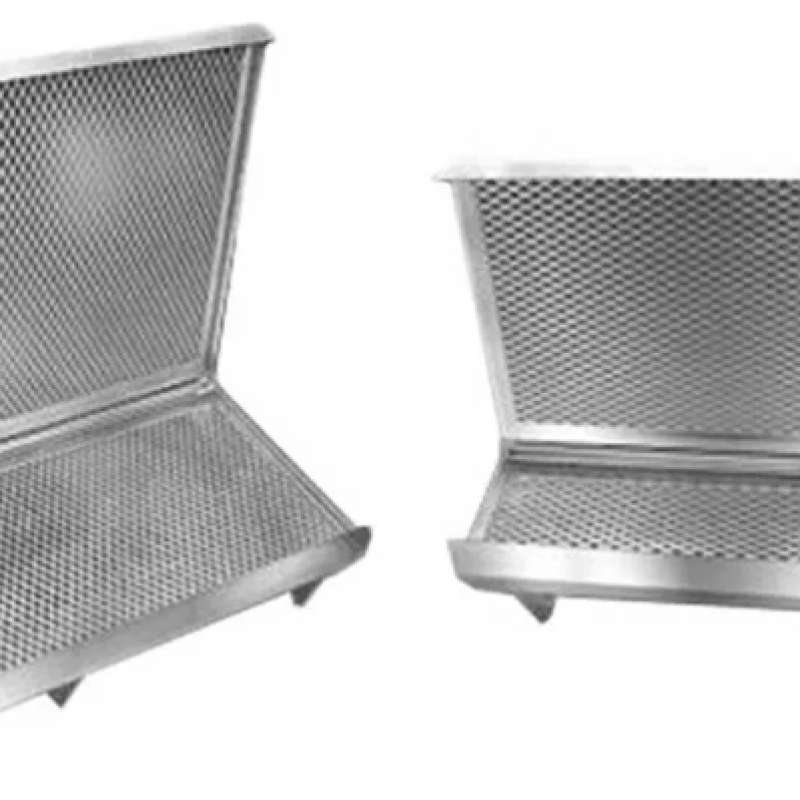

Upholstery Flammability Test Rig TF322

• Flammability Test Rig (Upholstery) is to determine the ignition resistance properties of material combinations for upholstered seating. When it is placed under a smoldering cigarette or a burning fire source, its heat output ranges from a burning match to nearly burning four double sheets of full-size paper.
• The test rigs are covered with the standard foam and the fabric under test. The assembly is then ignited using one of the standard ignition sources and the combustion process is monitored.The monitoring of the combustion process can help us discover the potential flammability of the tested material
• Optional accessories include foam pads, wooden cribs, cutting templates, and standard cigarettes.

Included

• lBS 5852 Test Rig – Large
• lBS 5852 Test Rig – Small

Optional Accessories

• lBS 5852 Standard Cigarettes
• lBS 5852 fire source, Crib 4
• lBS 5852 fire source, Crib 5
• lBS 5852 Standard White Shell Fabric
• lBS 5852 Fire Resistance Foam
• lBS 5852 Non-Fire Resistance Foam

Weight                          Large: 15kg                                         Small: 10kg
Dimensions :
Large:                         Length: 450 mm                      Width: 300 mm​​​​​​​                         Height: 450 mm
Small:​​​​​​​                         Length: 450 mm​​​​​​​                      Width: 150 mm                         Height: 300 mm

• BS 5852 Part 1 / Part 2
• ISO 8191 Part 1 / Part 2
• EN1021-1
