Ứng dụng sản phẩm

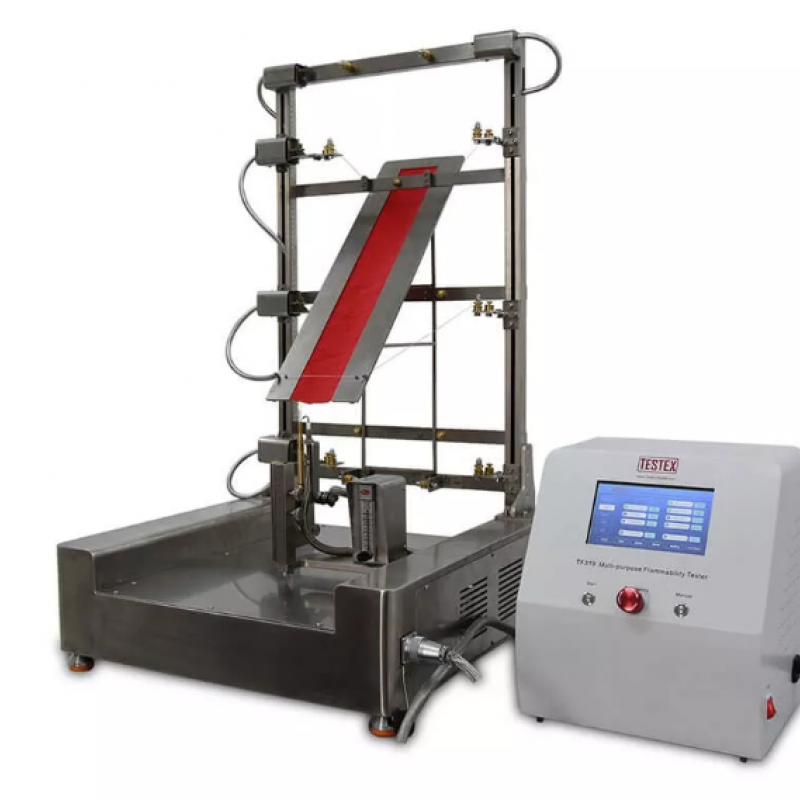

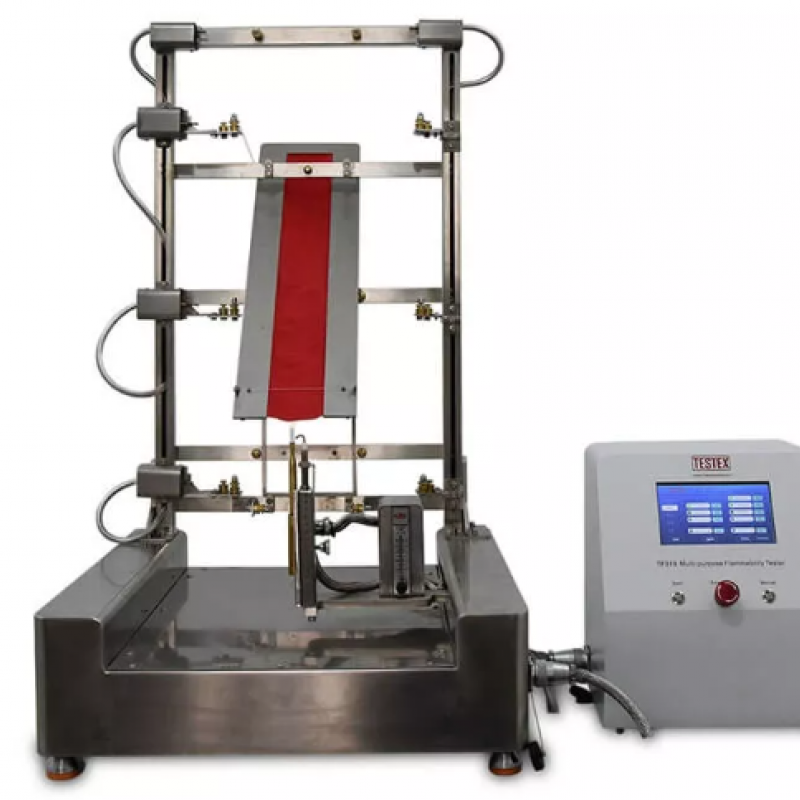

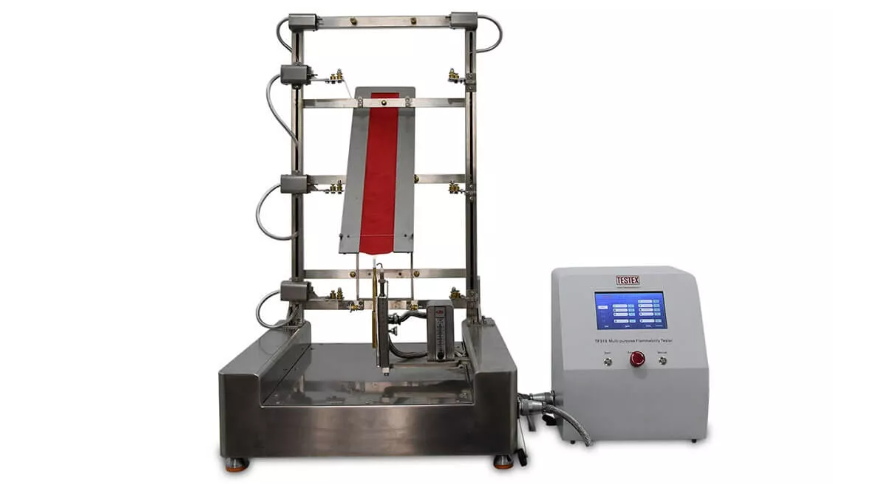

- Multi-purpose Textile Flammability Tester TF319 can determine the flammability resistance of various textiles, such as toy&toy materials, decorative fabrics, tent fabrics, safety protection nets, household materials, etc. It can be used by the printing and dyeing industry, textile inspection departments, and scientific research units. Equipped with different specimen clips, it is suitable for testing the flame retardant properties of different materials, i.e., the determination of the length of material damage, negative ignition, and continuous ignition time.
Thông số kỹ thuật
- Multi-purpose: at first, it meets most vertical-oriented tests.
- Accurate: The test data are comparable to the test results obtained by well-known international third-party laboratories.
- Smart: programmable PLC system, optical scanning devices for threads breaking detection, timing range 0-999.9s, and accuracy 0.1s.
- Automatic: automatic flame ignition and flame, automatic gas open / off. Automatic change for butane gas and propane gas.

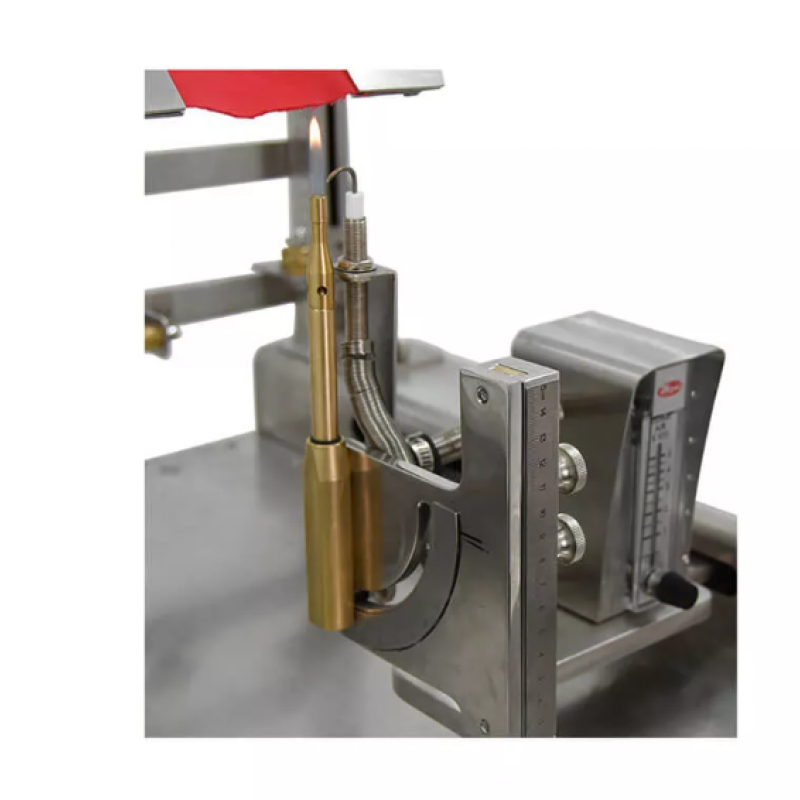

- Easy-to-use： easy-set devises for burner position (surface & edge ignition, toys test).

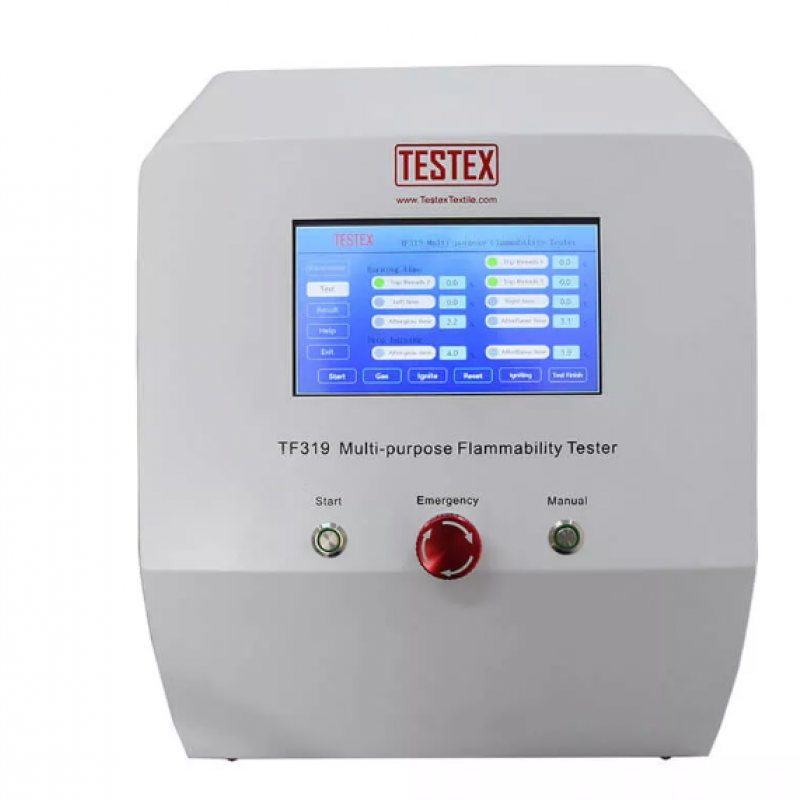

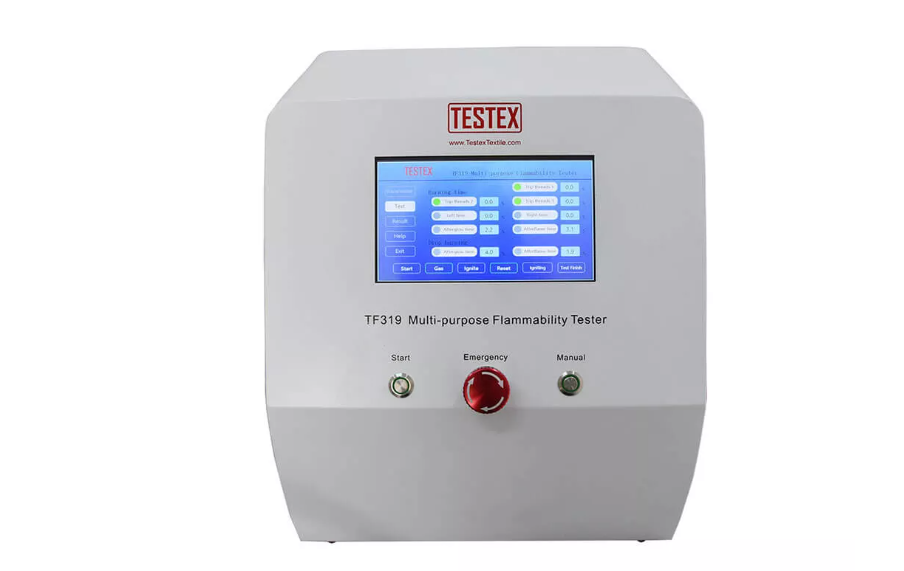

- Safety guarantee: the detachable controller ensures the safety of the operator.
- Flexible: interchangeable, precision test frames for different standards.
- User-friendly set: vertical and horizontal marker threads, a tray for the filter paper, and test debris.
Standard Accessories of Multi-purpose Textile Flammability Tester TF319
- Flame measuring tape
- Burner gauges
- Sampling plate
- Fixtures
Optional consumables: filter paper
Weight 51kg
Power 220/110V 50/60HZ
Dimensions
| Bracket size |
|
|
| Length: 600 mm |
Width: 650 mm |
Height: 990 mm |
| Controller size |
|
|
| Length: 340 mm |
Width: 300 mm |
Height: 360 mm |
Tiêu chuẩn
Optional standard
- BS EN 71-2:2020
- ISO10047:1993
- BS EN ISO 15025:2016
- BS 5438:1989
Video
