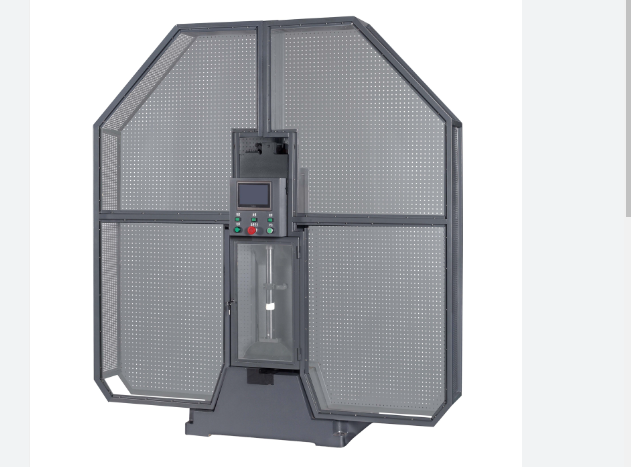

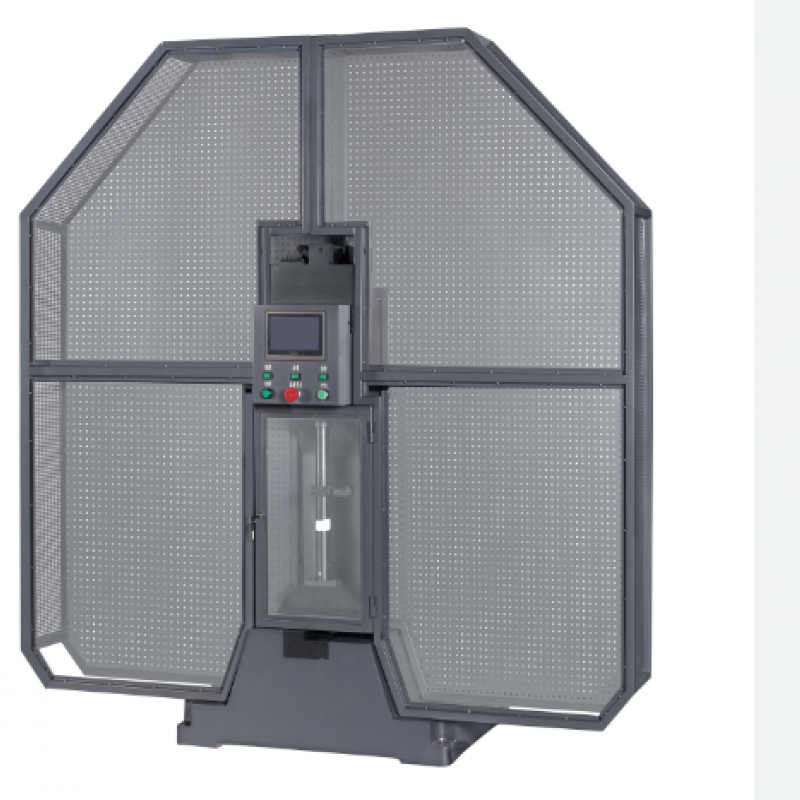

Impact Tester PIT-C

• Check the strength of metal materials, the strength of welds. The machine complies with ISO, EN, ASTM and other international standards. PIT-C series provides users with different impact force: 150J, 300J and 450J

Characteristic:
-Pillar and base anti-vibration and noise-cancelling monolithic design
-Customers can choose the types of machines according to their needs: touch screen, computer display type and basic machine only model
-Automatic control motor returns the hammer to the pre-test position
-Shaking hammer does not generate electromagnetic energy
-The height and weight of the pendulum are designed to ensure high accuracy. The pendulum is easily changed by the user to conform to ISO and ASTM standards
-High precision bearing and small friction
-Siens PLC controller controls the pendulum with extreme precision
Specifications
1. Maximum impact force: 150J, 300J, 450J
2. Impact moment:  80.3848 N.m, 160.7695 N.m, 241.1543 N.m
3. Hammer lift angle: 150°
4. Angle resolution 0.025°
5. Farthest distance from center of hammer to anvil: 750mm
6. Impact speed (hammer speed): 5.2m/s
7. Anvil aperture: 40mm
8. Anvil's bevel radius: 2.5mm
9. Anvil stop angle: 0°
10. Angle of taper of supports: 11°±1°
11. Curvature radius of hammer head: 2-2.5mm
12. Angle at hammer tip: 30°
13. Hammer thickness: 16 mm
14. Sample size (length x width x height): 55×10×10mm, 55×10×7.5mm, 55×10×5mm
15. Machine dimensions (length x width x height A x B x C): 1950×575×1460mm
16. Weight: 600 kg
17. Power consumption: 800W
18. Power requirements: 3-phase, 5-line, AC 380V±10% 50Hz
Additional options:
Control software:
The control software is designed to be easy to use to collect, calculate and store data. The results are extracted and extracted to a clear excel file.
The user only needs to load the template. Other operations are controlled through the computer system and software
Touch screen:
Small LCD screen real-time display of impact hammer angle, impact force, strength and other parameters. User can input sample data such as company information from this screen. When connected to a printer, input information and test results can be printed.



• ISO 148,
• EN10045,
• ASTM E23,
• GB/T 229,
• GB/T 12778
