Products  Impact and drop test machine

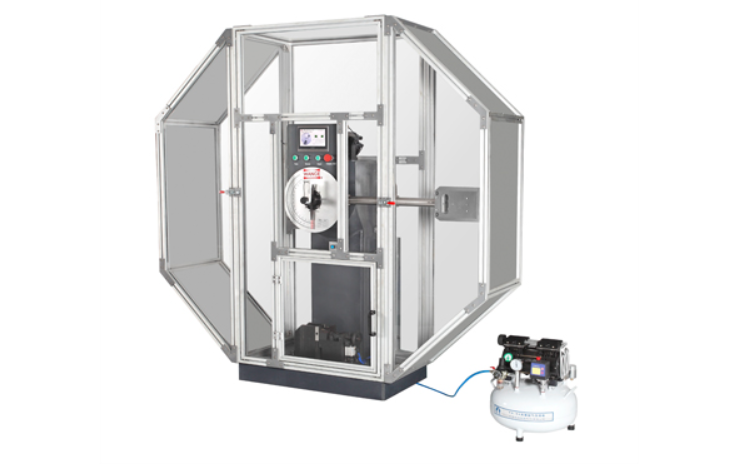

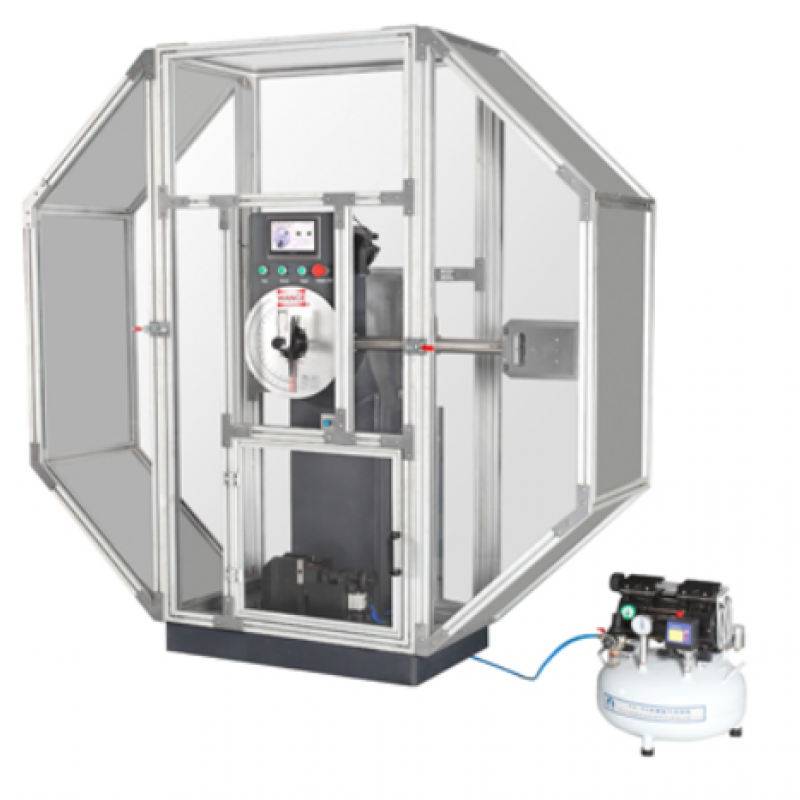

PIT-G Charpy Izod test (150J~450J)

Model: PIT-G Charpy Izod test
Producer: Wance- China
Giá: Contact
The basic model consists of a heavy-duty solid steel base to which a test specimen holder (anvil) and a vertical bar of cast steel are attached. The machine is composed with ...

Ứng dụng sản phẩm

  • Affects Metals, Charpy and Izod, both without and with tools
  • Wedge impact test of adhesive links
  • Check the Brugger method of toothed gears
  • Servo motor driven pendulum can stop at any position, do different angular/energy impact test for R&D use
  • Equipped with cooling system, I can do low temperature test down to -180 ℃

Thông số kỹ thuật

Standard configurations:

Name Description Model
PIT452G-2 PIT452G-3 PIT452G-4
Framework Frame
Pendulum holding and releasing mechanism
Driving system
Angle measurement system
SIMENS PLC control
Analogue display
Touch screen
Protection shield
Servo motor
Charpy support & anvil Only for Charpy, comply with ISO and ASTM
Instrumented impact system
(model: IIS105)
Data sampling card
Data Conditioner
Instrumented test software

Software
Accessories Span adjusting device
specimen center alignment device
inside-hexagonal spanner
foundation bolts
wedge block

Optional multi-purpose fixture
Name Specifications
Manual multi-purpose fixture Manually clamp Charpy or Izod specimen
Pneumatic multi-purpose fixture Pneumatically clamp Charpy or Izod specimen
Air pump
(YH-04)
Air capacity: >60L/min
Air pressure: 0.45~0.75MPa

Optional pendulums
Name Capacity Compatible Model
Charpy pendulum
(Striker knife:ISO148 R2, or ASTM E23 R8)
150J PIT452G-2, PIT452G-3
300J
450J
Please specify ISO striker or ASTM striker
Remark: 450J pendulum is assembled by 300J pendulum with two counter weight.

Optional instrumented pendulums
Name Capacity Compatible Model
Instrumented Charpy pendulum
(striking knife with 30kN force transducer:  ISO148 R2, or ASTM E23 R8)
150J PIT452G-4
300J
450J
Please specify ISO striker or ASTM striker
Remark: 450J pendulum is assembled by 300J pendulum with two counter weight.


Optional notch broacher
Name MODEL Specifications
Notch making machine NSM201B V2 and U5 notch
Comply with ISO148 and ASTM E23

Optional cooling system
Name Model Description Accessories
Automatic cooling and feeding system LTC601A-2 -60~ambient
Cooling method: compressor
Specimen auto-feeding system
Low temperature chamber
Compressor
Air pump
LTC102B-2 -100~ambient
Cooling method: liquid nitrogen
Specimen auto-feeding system
Low temperature chamber
Liquid nitrogen cylinder
Air pump
LTC182B-2 -180~ambient
Cooling method: liquid nitrogen
Manual cooling system LTC601A-1 -60~ambient
Cooling method: compressor
Low temperature chamber
Compressor
LTC801A-1 -80~ambient
Cooling method: compressor
Low temperature chamber
Compressor
LTC102B-1 -100~ambient
Cooling method: liquid nitrogen
Low temperature chamber
Liquid nitrogen cylinder
LTC182B-1 -180~ambient
Cooling method: liquid nitrogen





Tiêu chuẩn


  • ASTM E23,
  • ASTM E1820,
  • ASTM E2298,
  • AS 1544,
  • ISO 148,
  • EN10045,
  • ISO 14556,
  • ZF 15-53,
  • ISO 11343,
  • JIS Z 2242,
  • JIS B 7722,
  • GOST 9454
