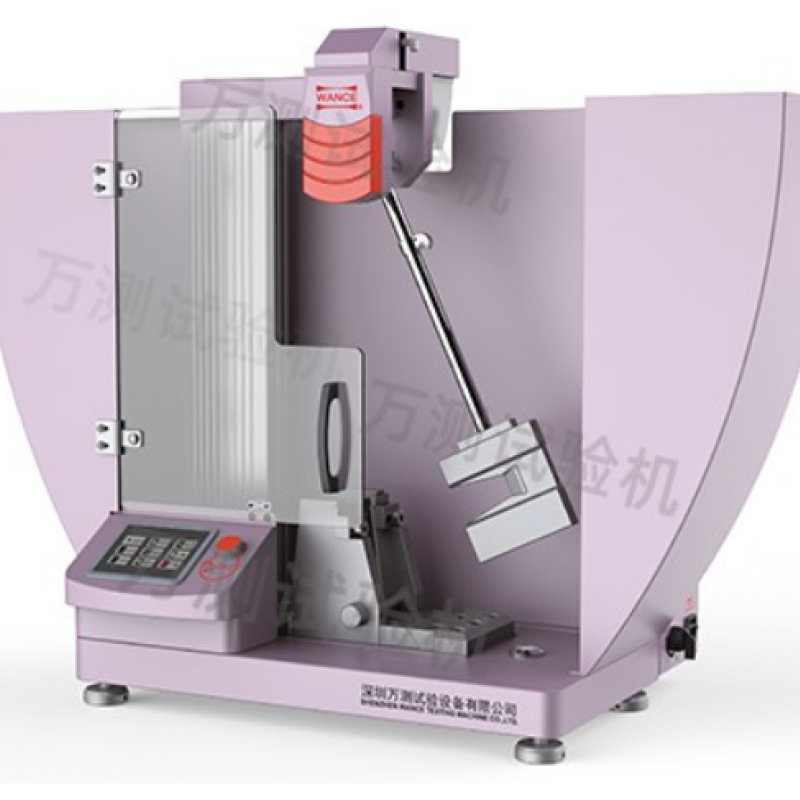

Featured
- High resolution
- Using a shaftless encoder allows an angular resolution of 0.045°
- Energy loss
- Shaftless encoder to measure rotation without any friction; supports only friction and wind bearings with the lowest energy loss
- The LCD display makes it easy to set specimen size, pendulum power, units and calibration data. In addition, it can visually display test results: absorbed energy and impact strength
- exchangeable pendulum
- Simply change the pendulum to respond to Charpy, Izod and test the drag effect
- Center align
- Quick and precise rotation design to center align the Charpy . prototype
- Support and Threat
- The brackets are fastened to the seat by a solid articulating groove; Just unscrew two bolts to change the holder
- Larger test space
- Single column construction provides wide test space, easy installation of future low temperature impact test accessories
Thông số kỹ thuật
Parameter
1. Capacity
Ø Charpy for plastics: 1J, 2J, 4J, 7.5J, 15J, 25J, 50J
Ø Charpy for plastic pipe: 15J, 50J
Ø Izod: 2.75J, 5.5J, 11J, 22J
Ø Tensile impact: 7.5J, 15J, 25J
2. Angle of striking: 150°
3. Angle resolution: 0.045°
4. Charpy Test for plastics (ISO 179)
Ø Velocity of striking: 2.9m/s (≤5J), 3.8m/s (>5J)
Ø Distance from the axis of support to the center of percussion: 230mm(≤5J), 395mm(>5J)
Ø Span: 40mm, 60mm, 70mm (can be adjusted by span block)
Ø Specimen dimension (LxWxH):
80mmx10mmx4mm, 50mmx6mmx4mm, 120mmx15mmx10mm
5. Charpy Test for plastic pipe (ISO 9854.1)
Ø Velocity of striking: 3.8m/
Ø Distance from the axis of support to the center of percussion: 395mm
Ø Span: 40mm, 70mm (can be adjusted by span block)
Ø Specimen dimension (mm)
Length x width x thickness
(mm) |
Type |
Length |
Width |
thickness |
Support span |
| 1 |
100±2 |
Whole pipe |
70±0.5 |
| 2 |
50±1 |
6±0.2 |
e |
40±0.5 |
| 3 |
120±2 |
15±0.5 |
e |
70±0.5 |
| Note: e is the machining thickness of pipe |
6. Izod test (ISO 180, ASTM D256)
Ø Velocity of striking: 3.5m/s
Ø Distance from the axis of support to the center of percussion: 335mm
Ø Striking knife center to vice upper surface: 22±0.2mm
Ø Specimen dimension (LxWxH): 80x10x4mm, 63.5x12.7x12.7mm
63.5x12.7x6.4mm, 63.5x12.7x3.2mm
7. Tensile impact test (ASTM D1822, ISO 8256)
Ø Velocity of striking: 3.444m/s
Ø Distance from the axis of support to the center of percussion: 327mm
Ø Pendulum initial elevation height: 610mm
Ø Crosshead mass: 60±1g, 120±1g
Ø Maximum specimen thickness: 4mm
8. Power supply: AC220V, 50Hz, 0.3kW
9. Machine dimension (LxWxH): 1000x300x760mm
10. Weight: 140kg
Standard accessories
| Model |
PIT501J |
| Type |
J-2 |
J-3 |
| Main machine |
1 set |
1 set |
| Angle encoder (shaftless) |
1 set |
1 set |
| Controller (WANCE) with digital display |
1 set |
1 set |
| Electromagnetic hook |
1 set |
1 set |
| Maintenance tools |
1 set |
1 set |
| Half protection shield |
1 set |
1 set |
| Software |
N/A |
1 set |
| Micro-printer |
1 set |
N/A |
Optional accessories
| Test |
Name |
Description |
| PIT501J |
Charpy
(Plastics) |
Chapry pendulum |
1J,2J,4J, 7.5J,15J,25J,50J |
| Charpy support |
|
| Charpy span block |
|
| Charpy notch centering block |
|
Charpy
(Plastic pipes) |
Chapry pendulum (ISO179) |
15J, 50J |
| Supports for convex test piece |
|
| Supports for bar specimen |
|
| Charpy span block (40mm, 70mm) |
|
| Izod |
Izod pendulum (ISO180) |
2.75J,5.5J ,11J,22J |
| Izod pendulum (ASTM D256) |
2.75J,5.5J ,11J,22J |
| Izod vise jaw |
|
| Izod notch centering block |
|
| Tensile impact |
Tensile impact pendulum
(ASTM D1822) |
7.5J, 15J, 25J |
| Tensile impact anvil |
|
| Tensile impact crosshead |
|
Tiêu chuẩn
- ISO 179,
- ISO 180,
- ISO 8256,
- ISO 9854.1,
- ASTM D256,
- ASTM D1822
