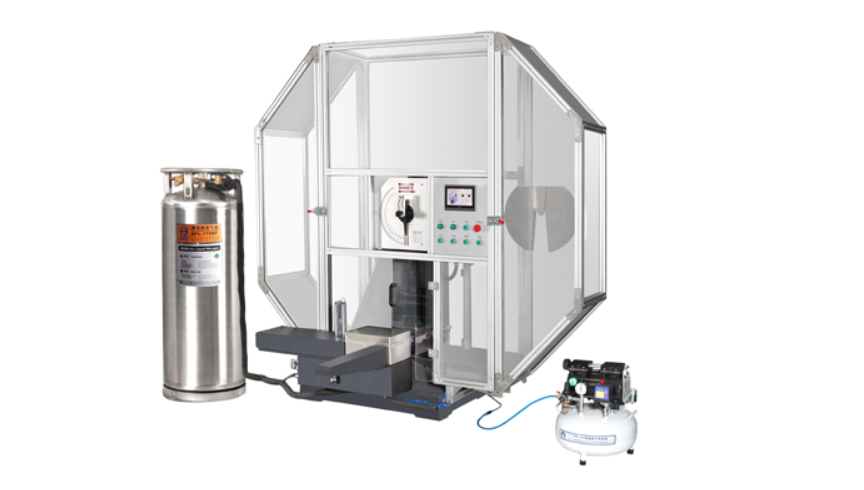

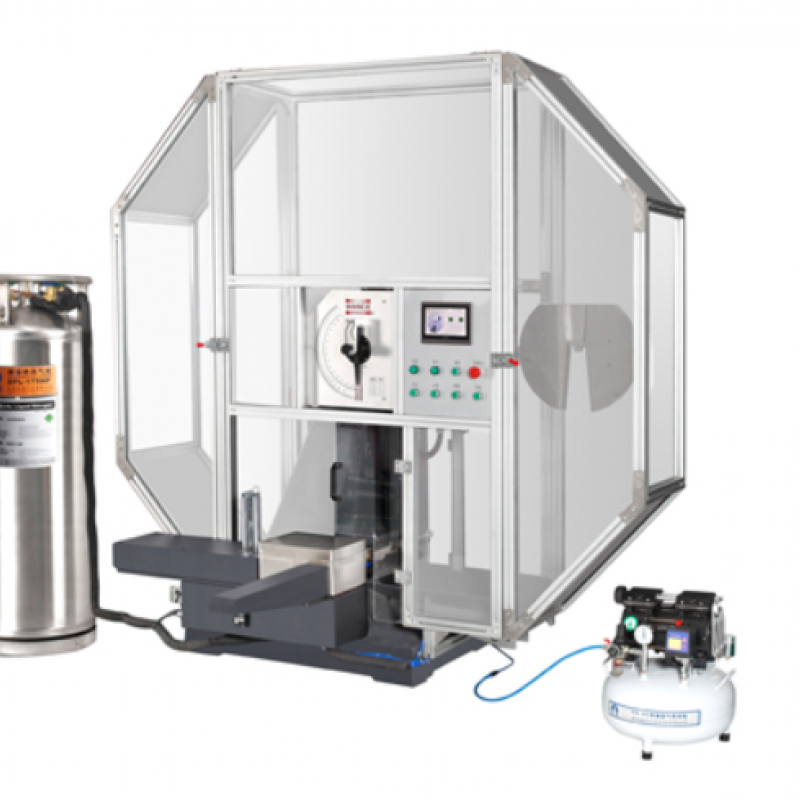

PIT-H Series Charpy (300J~750J)

Ứng dụng sản phẩm
Thông số kỹ thuật
Tiêu chuẩn
Video

Ứng dụng sản phẩm

Impact on metals, Charpy, both non-instrumented and instrumented
Servo motor driven pendulum can stop at any position, realizing different angle/energy impact test for R&D use Equipped with cooling system, I can perform low temperature test down to -180℃

Thông số kỹ thuật

Specifications for main machine

Standard configurations:

Optional pendulums

Optional instrumented pendulums

Name	Description
Instrumented Charpy pendulum & specimen support (striking knife with 30kN force transducer: R2/R8) Please specify ISO striker or ASTM striker	300J
	450J
	600J
	750J

Remark:

1) 450J pendulum is assembled by 300J pendulum with two counter weight.

2) 750J pendulum is assembled by 600J pendulum with two counter weight

Tiêu chuẩn

ASTM E23,
ASTM E1820,
ASTM E2298,
ISO 148,
EN10045,
ISO 148,
EN10045,
ISO 14556,
JIS Z 2242,
GOST 9454-78

Video

Please contact us for advice and support
⇒ Mr. Ba: 0948.27.99.88

⇒ Or leave a message and we will call you directly. Thank you very much!
