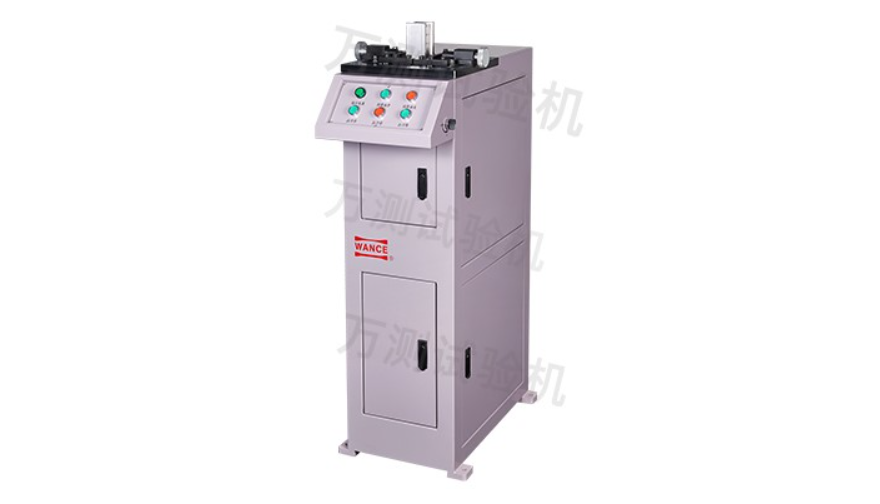

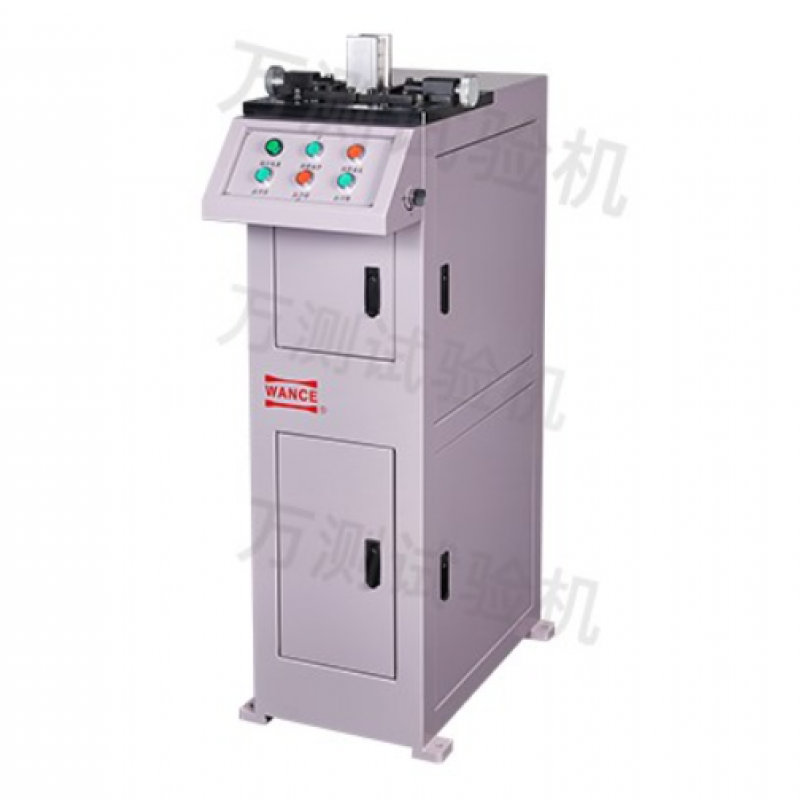

Notch cutting for metal

Model: Notch cutting for metal
Producer: Wance- China
Giá: Contact
This type of machine is specially designed for the preparation of test pieces for the Charpy test.

Product Application

  • This type of machine is specially designed for the preparation of test pieces for the Charpy test.

Specifications

Parameter:
  • Broach stroke: 340 ± 10 mm
  • Speed: 2-3m/min
  • Lubrication system: circulating lubricating oil, adjustable oil
  • Hydraulic oil: L-HM46
  • Oil volume: 20L, prepared by customer
  • Power Consumption: 500W
  • Power requirements: 3 phase, 5 line, AC 380V±10%, 50Hz
  • Machine dimensions (L x W x H): 430 x 750 x 1250mm
  • Weight 200kg
Sample model:
  • Sample size: 10x10(7.5, 5, 2.5)x55mm
  • Sample hardness≤HRC40
Notched Type:
  • Type V2 (ISO148) and Class A (ASTM E23)
  • Type U5 (ISO148, GB/T229, Gost 9454) and Type C (ASTM E23), non-standard type, short life, no warranty
  • Optional groove type:
  • U2 : depth 2mm, width 2mm, r=1mm±0.05mm, GB/T229 compliant, Gost 9454
  • U3 : 3mm deep, 2mm wide, r=1mm±0.05mm, according to Gost 9454

Standard


  • ISO148,
  • EN10045,
  • ASTM E23,
  • JIS Z 2242,
  • GOST 9454,
  • GB/T229
