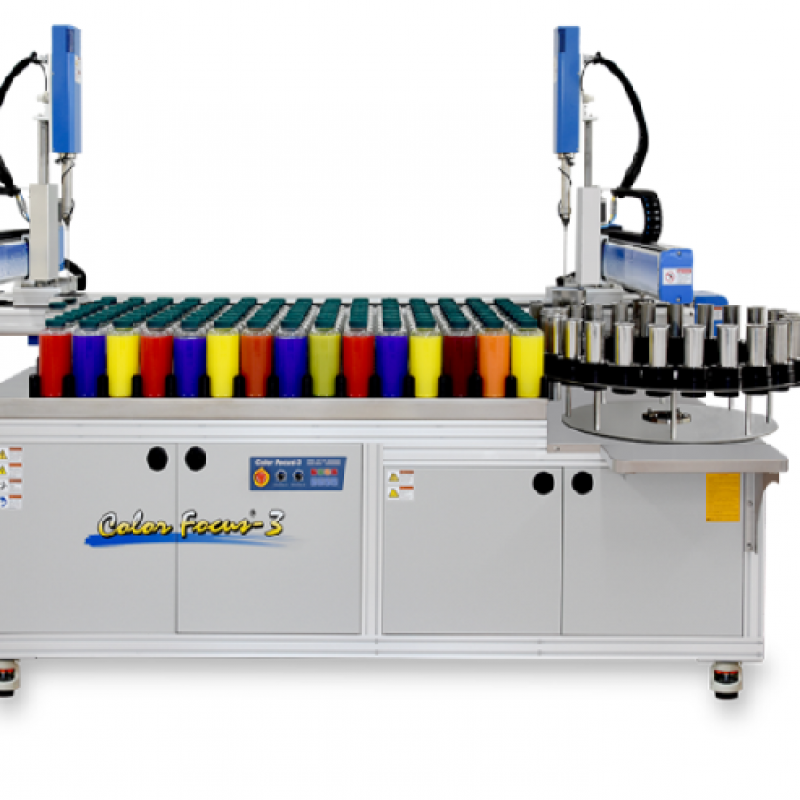

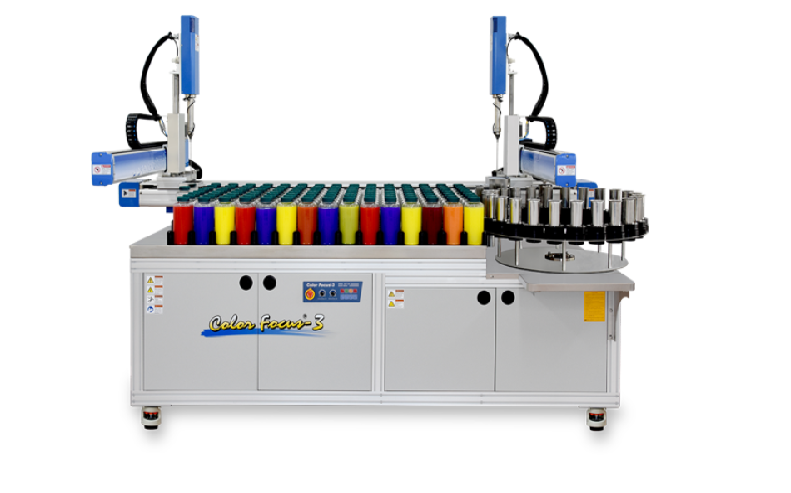

Automated Volumetric Pipetting System DLF120

Outstanding benefits of the CCK-III system:
1.    The quantitative dosing system provides high precision for pipettes.
2.    Maintenance free maintenance free tubeless filling system with automatic cleaning system, no tube blockage occurs when dye concentration is high or dye quality is poor compared to the filling system. solution using a tube (Tube).
3.    Automatic syringe cleaning with five maintenance-free steps:
-    Step 1: water is sucked and removed to clean the inside of the syringe. The cleaning time can be set depending on the brightness of the color. For example: light color 3 times, medium color 4 times, dark color 5 times.
-    Step 2: clean with a brush the outside of the syringe.
-    Step 3: clean the outside of the syringe again with a shower, water is sprayed with high pressure when the syringe leaves the cleaning chamber.
-   Step 4: dry the outside of the syringe with dry air
-   Step 5: dry the inside of the syringe with dry air
4.   Magnetic stirrer is used in each dye vial, auxiliary vial to avoid precipitation
5.    The machine uses 2 robot arms in case one robot has a problem, it can still use another robot until the problem is solved.
6.    Speed (medium color): Min 10 – 12 minutes / 24 dye cups (3 color mixes)
7.   Precise dosing for light colors (gray, beige, khaki) no need for additional colors to ensure economical production
8.   User-friendly Windows installation software
+    The tinting formula is stored in the color standard for easy reuse.
+    Easy to control selected color by mouse click.
+   Pipette operation and dye solution preparation can be operated simultaneously
9.   Reasonable price
10.   CCK-III Accuracy
+    For precision control CCK-III uses clock (signal) to adjust volume, 65000 clocks = 40cc i.e. 1 clock = 0.00062cc precision tolerance
+   Dye accuracy: ±0.01cc by servo motor
+   Auxiliary fluid accuracy: ±0.02cc by solenoid valve
+    Water accuracy: ±0.05cc by flow meter.

• Supply 120 dye bottles with a capacity of 1000cc
• Manufactured using high technology to ensure quick and accurate movement in the X, Y, and Z directions of the robot.
• Auxiliary vials: 5 vials (2000cc capacity)
• Stirring: use a magnetic stirrer (dye/auxiliary)
• Speed (medium color): 10–12 minutes / 24 dye cups (3 color blends), 5-6 minutes / 12 dye cups (3 color blends)
• Accuracy: ±0.02cc
• Dye cup holder: 24 pieces
• Syringe capacity: 40cc (basic) if over 40cc robot picks up dye again in vial without cleaning, 80cc (continuous dye CPB option)
• Robot system: 2
• Power supply: 220V 50/60Hz single phase, 3kW.
• Weight: 600kg (±5kg)
• Dimensions: 2840 x 1400 x 1800mm (Width x Depth x Height)
