Products  Fabric Dyeing and Finishing Machine

Process Horizontal / vertical combined feather

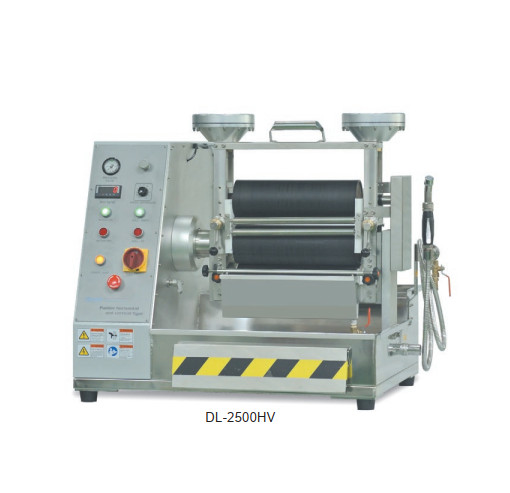

Model: Padder Machines
Producer:
Giá: Contact
The Padder absorbent is a machine used in the laboratory to press the dye solution into the fabric sample by means of two horizontal rollers pushled by air pressure. The machine has ...
Buy now Nationwide Delivery
0948279988 Contact phone number

Product Application

  • Reliable cylinder ensures equal pressure between left, center, right positions
  • The machine is used in dyeing as well as finishing fabric.
  • It is possible to customize the infusion direction vertically or horizontally.
  • High efficiency inverter motor, speed controller, digital tachometer precise rotational speed control at low speed and high speed.
  • The front air regulator makes it possible for the user to adjust the air pressure through precise pressure measurement.
  • Table type - Ergonomic shape & compact design.
  • Safety device-Two protectors between roller and emergency stop switch & rod.

Specifications

  • Direction                                      Horizontal & Vertical
  • Dimensions of press shaft      110 x 350mm
  • The outside of the presser shaft is covered by 15mm . thick rubber
  • Shaft speed                                0~25r/min. (0.5~20m/min.)
  • Shaft Hardness                          65~70˚ Shore
  • Pressure                                     0~7bar (0~0.7MPa)
  • Motor power                              400W
  • Power supply                            220VAC 50/60Hz 1 phase, 500W
  • Weight                                       120kg (±5kg)
  • Dimensions                              1050(W) x 800(D) x 810(H)mm

Standard

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
