Products  Fabric Dyeing and Finishing Machine

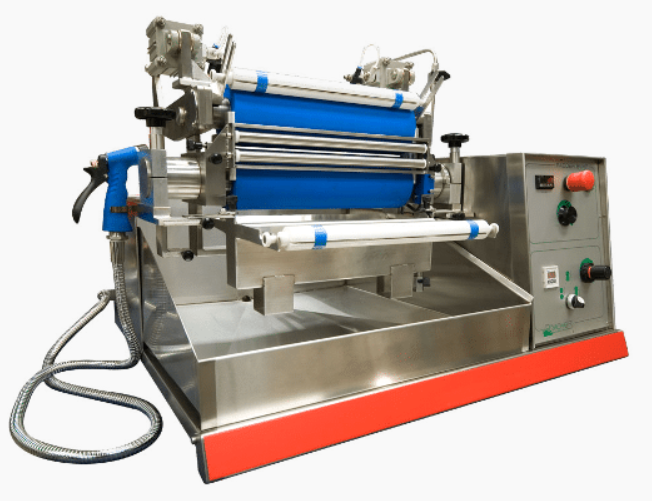

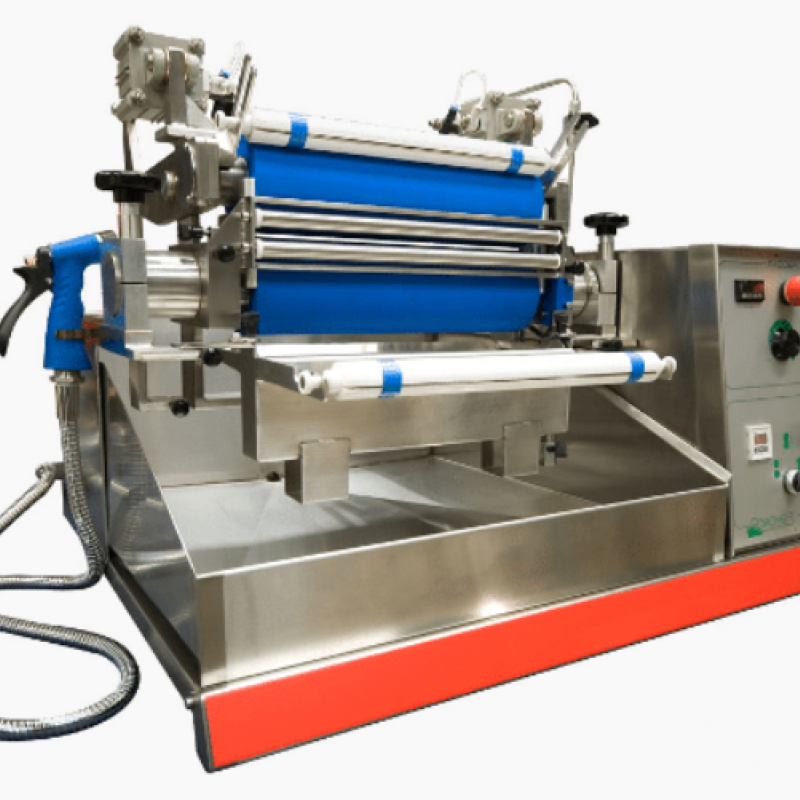

Laboratory Padding Mangle

Model: Padder Fabric Fabric Finishing Testing Machine
Producer: ROACHES-English
Giá: Contact
There are 3 models used are BVHP and EVP and EHP The BVHP model can operate in vertical and horizontal positions using conventional chemical chutes or using dams in horizontal position. The EVP ...
Buy now Nationwide Delivery
0948279988 Contact phone number

Product Application

  • Used for testing chemical impregnating and dyeing of long cloth tapes with Padder buffer spindle.

Specifications

  • Power source:                              230V , 50Hz
  • Spindle speed:                            1-5 m/min
  • Compressor supply:                    0-5.5 bar
  • Cold water pressure:                   3 bar
  • Number of spindles and dyeing bowls: 2
  • Hypalon rubber hardness as padder shaft: 70+-5 Shore
  • Shaft frame material: stainless steel
  • Padders machine size:
  • EVP 350: 890mm (D) x 590mm (R) x 300mm (C)
  • EVP 500: 1040mm (D) x 590mm (R) x 530mm (C)
  • EHP 350: 890mm (D) x 590mm (R) x 500mm (C)
  • EHP 500: 1040mm (D) x 590mm (R) 500mm (C)
  • BVHP 350: 890mm (D) x 740mm (R) x 630mm (C)
  • BVHP 500: 1040mm (D) x 590mm (R) 500mm (C)

Standard

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
