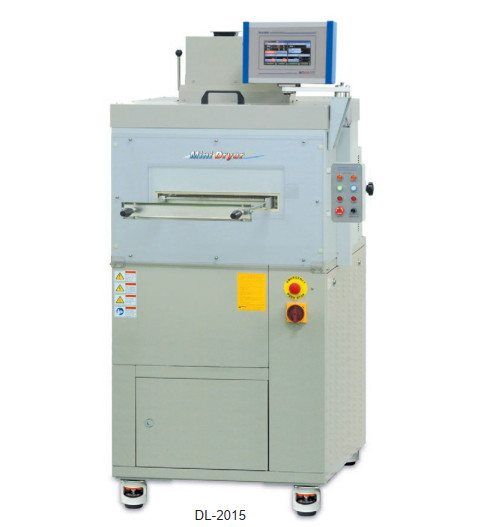

Process Mini Dryer [Mini Tenter / Automatic Discharge Dryer / Coating Curing Machine]

Ứng dụng sản phẩm
Thông số kỹ thuật
Tiêu chuẩn
Video

Ứng dụng sản phẩm

User-friendly color touch LCD screen (7＂ ) displays operating status and real-time temperature graph, precise temperature control by PID.
Fast drying and balanced temperature distribution by forced convection air flow system.
Simultaneous use with coating testers. (Coater - Optional)
Compact design shape.
Pre-check for pattern formation & color difference due to manufacturing chemical treatment.
The exhaust fan on the roof ventilates the outside of the chamber inside.

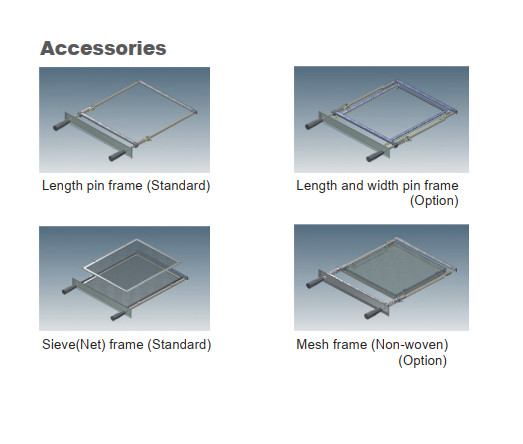

Automatically send sample with frame after completion of testing period.
The actuator behind the top cover provides quick cooling for the next job.
Sample damage due to overheating can be protected by overheating limit function.

Thông số kỹ thuật

Sample size 300 x 430mm
Working surface 280 x 330mm
Time 1sec.~99min. (Can be adjusted)
Fan speed 700~2500r/min.
Fan motor power 750W (Inverter control)
Heat output power 7200W (10.5kW - Option)
Temperature range 25~250℃ (Max. 220℃)
Limit to heat 280℃
Power supply 380VAC 50/60Hz 3 phase, 8.5kW
Weight 310kg (±5kg)
Dimensions 850(W) x 1200(D) x 1650(H)mm

Tiêu chuẩn

Video

Please contact us for advice and support
⇒ Mr. Ba: 0948.27.99.88

⇒ Or leave a message and we will call you directly. Thank you very much!
