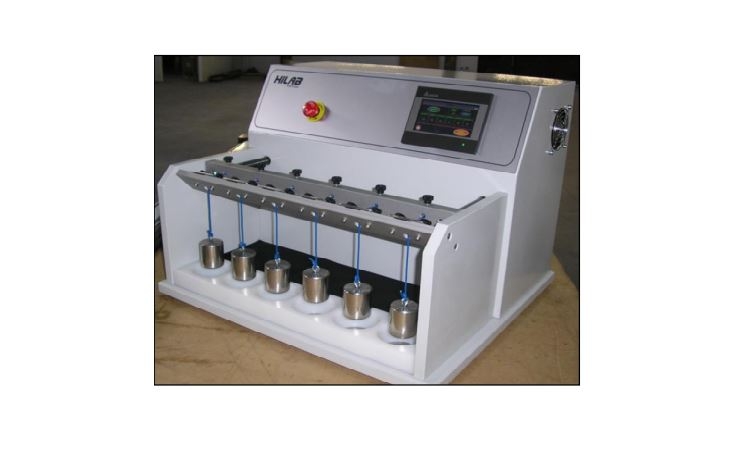

Lace to Eyelet Abrasion Tester with 6 stations

Ứng dụng sản phẩm
Thông số kỹ thuật
Tiêu chuẩn
Video

Ứng dụng sản phẩm

Purpose – assess abrasion resistance of footwear laces, tested against standard eyelets, according to BS 5131:3.6; TM 93.

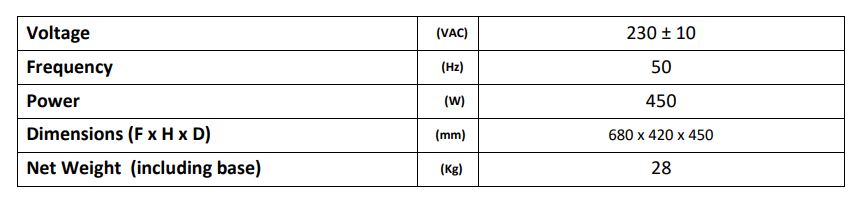

Thông số kỹ thuật

The machine has six stations. Each station has an independent counter that record the number of cycles made for each lace.
When one lace does not resist till the number of cycles imposed in the main counter, the weight falls over a stop system and the individual counter stops recording the number of cycles made that lace.
If all laces are broken before the total of cycles imposed in the main counter, machine stops, and individual results are showed.
The machine has a tactile terminal through which operator can define test parameters and record the test results.
All pieces of this machine that are contacting with test sample are made from stainless steel or aluminum to avoid oxidation.

Tiêu chuẩn

BS 5131:3.6;
TM 93.

Video
