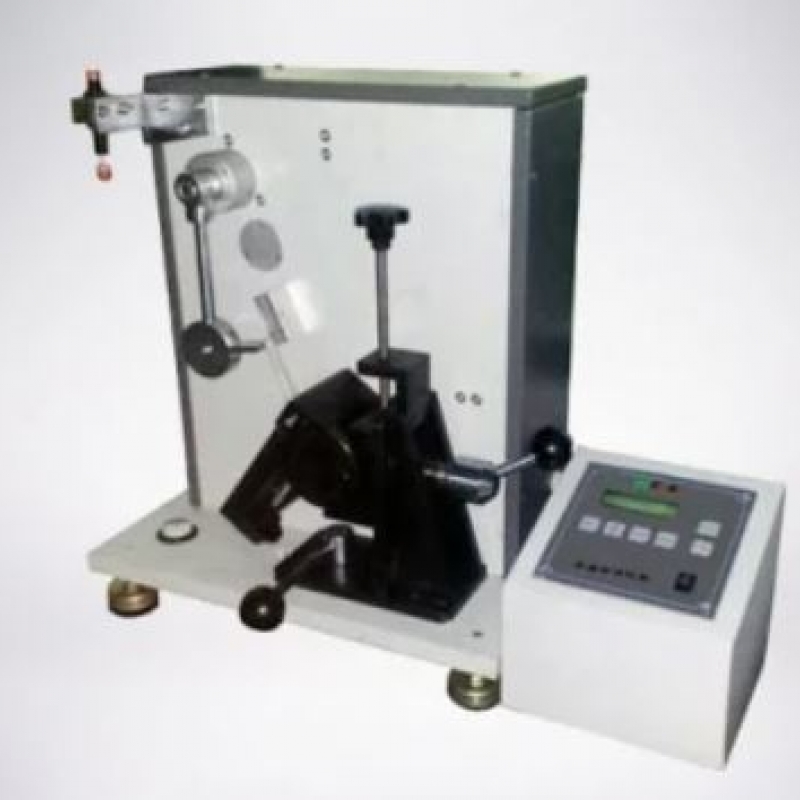

Heel Fatigue Tester

Model: H084
Producer: HiLAB-Portugal
Giá: Contact
The machine is controlled by a touch screen, through which is inserted the test parameters. An overshoot cut-out device will stops the machine automatically when the heel broken completely and the number ...

Ứng dụng sản phẩm

  • Purpose – assess abrasion resistance of footwear laces, according ISO 19956.

Thông số kỹ thuật

Test speed   (Cycle/s.) 1
Impact energy    (J) 0,68
Striker head radius   (mm) 6±0,5
Moment at horizontal position  (Nm) 0,68±0,02
Voltage  (VAC) 230 ± 10
Frequency  (Hz) 50
Power  (W) 450
Dimensions (F x H x D) (mm) 550 x 430 x 650
Net Weight (including base) (kg) 70

Tiêu chuẩn

  • ISO 19956.

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
