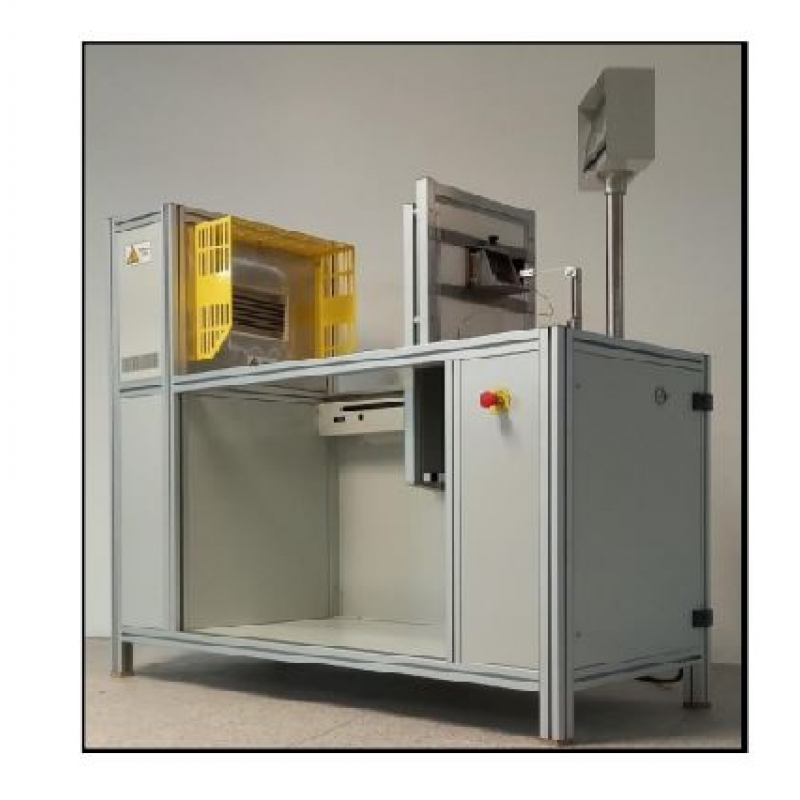

Radiant Heat Tester

Model: H048
Producer: HiLAB-Portugal
Giá: Contact
Determine the behavior of the materials used in protective clothing when exposed to a radiant heat source, according EN ISO 6942.

Ứng dụng sản phẩm

  • The tests are performed on single or multi-layer textiles intended to be used in heat protective clothing.

Thông số kỹ thuật

  • The time required for the temperature read by the calorimeter to rise by 12 ° C (t12) and 24 ° C (t24) is then recorded.

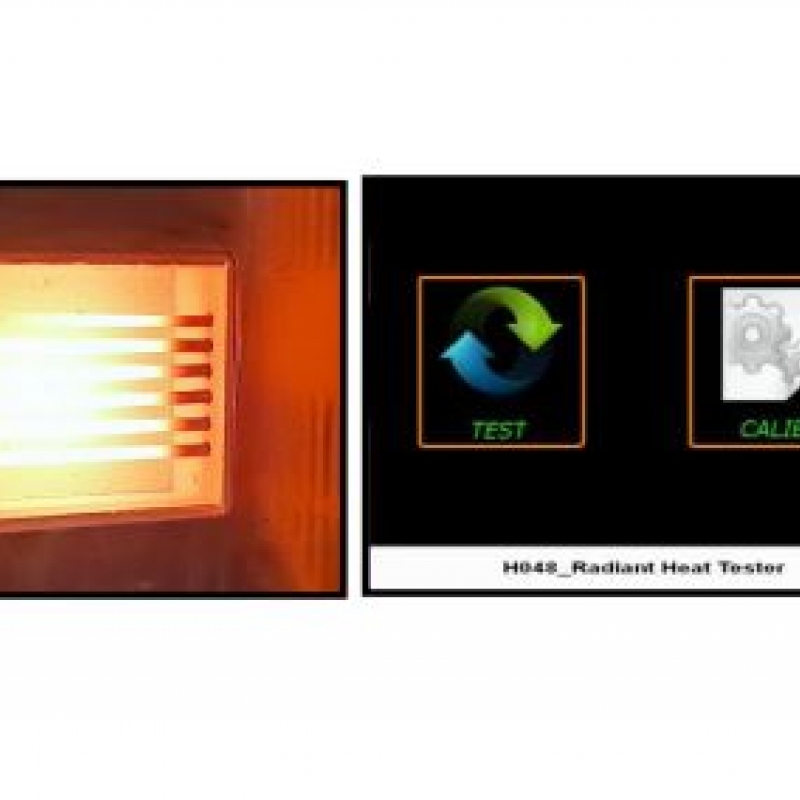

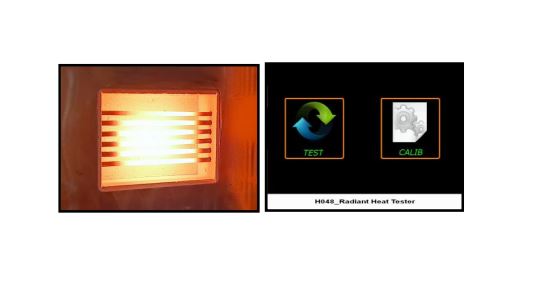

  • The source of radiant heat is a compact block with six special resistances supported by a structure of high isolating material.
  • The system controls the heat radiation, the time of the exposure and temperature, etc.
  • All parameters can be inserted through the console and all test results are displayed after the test.
  • The program has a routine to make the equipment calibration, allowing the definition of the distance correspondent to each level of the energy (5, 10, 20, 40, 80 Kw/m²).

Tiêu chuẩn

  • EN ISO 6942.

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
