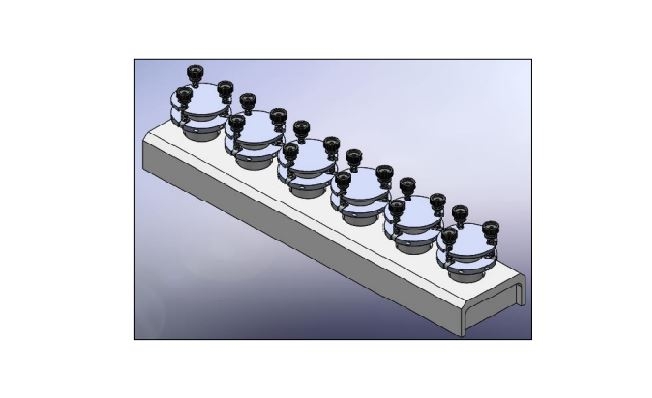

Water Vapour Absorption Tester

Model: H052
Producer: HiLAB-Portugal
Giá: Contact
The water vapor absorption meter is mainly used to measure the water vapor absorption of different types of skin.
Buy now Nationwide Delivery
0948279988 Contact phone number

Ứng dụng sản phẩm

  • Determining the coefficient of water vapour on leather and non-leather upper (water vapour absorption), according EN ISO 20344:6.7; EN ISO 17229; ISO 17699; TM172.

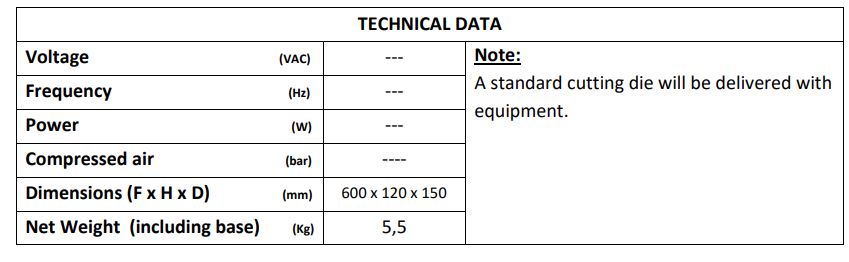

Thông số kỹ thuật

  • Weigh the conditioned test sample and record the mass as m1.
  • Place 50 ml of water into the container and place the test piece over the container with the side facing the foot downwards.
  • Place the impermeable disc over the test piece and screw down firmly.
  • Ensure that no water laps against the bottom of the test piece.
  • Remove the test piece after 8 h and weigh immediately, recording its mass, m2.
  • Calculate the water vapour absorption using the formula W₁= (m₂-m₁)/a.

Tiêu chuẩn

  • EN ISO 20344:6.7;
  • EN ISO 17229;
  • ISO 17699;
  • TM172.

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
