Blade Cutting Resistance Tester

Ứng dụng sản phẩm
Thông số kỹ thuật
Tiêu chuẩn
Video

Ứng dụng sản phẩm

Purpose – Assess the resistance of materials and assemblies used in protective clothing, namely in protective gloves to cutting.

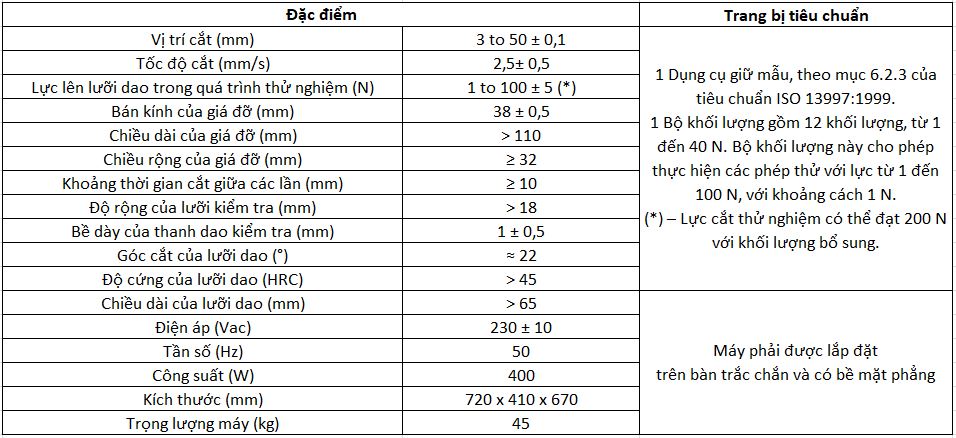

Thông số kỹ thuật

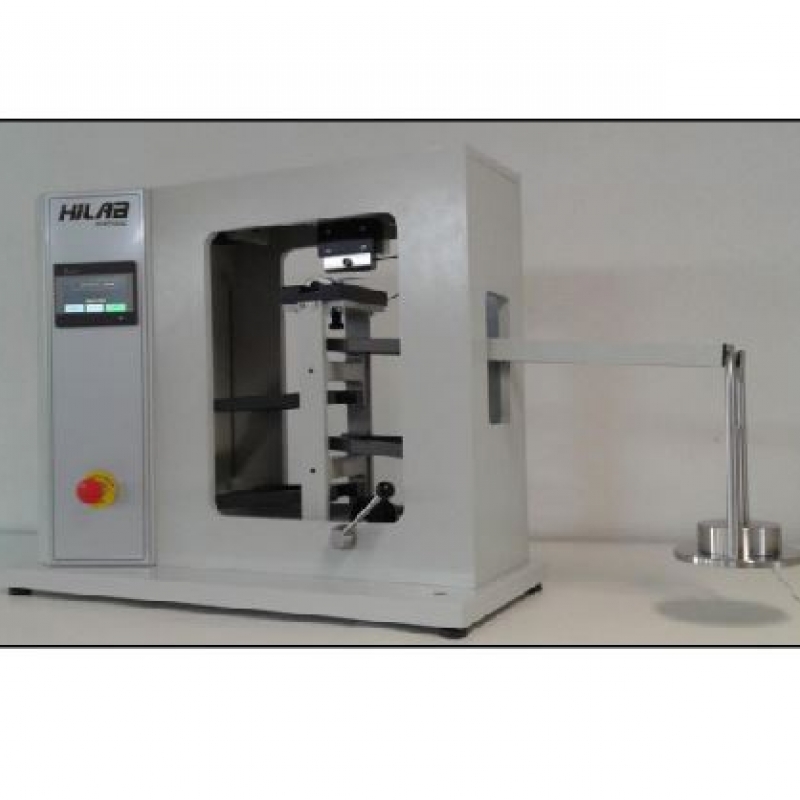

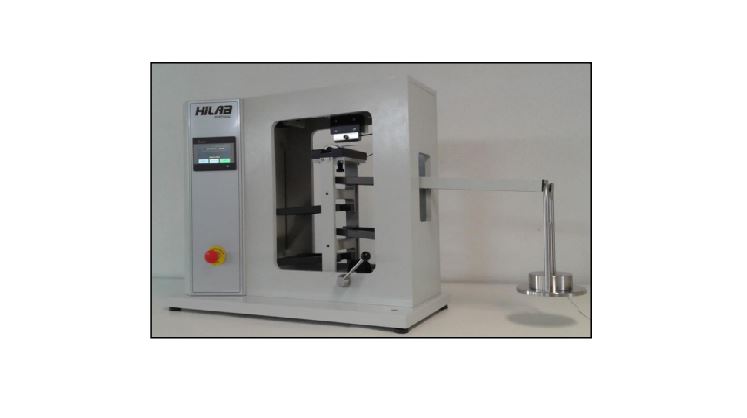

The device essentially consists of a sampling holder with vertical movement, a blade fixed to a guide system with controlled, linear movement.

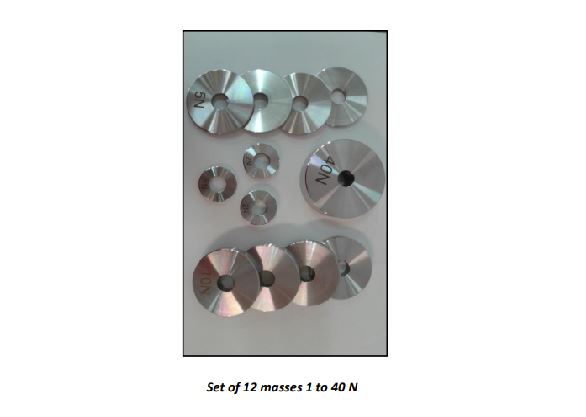

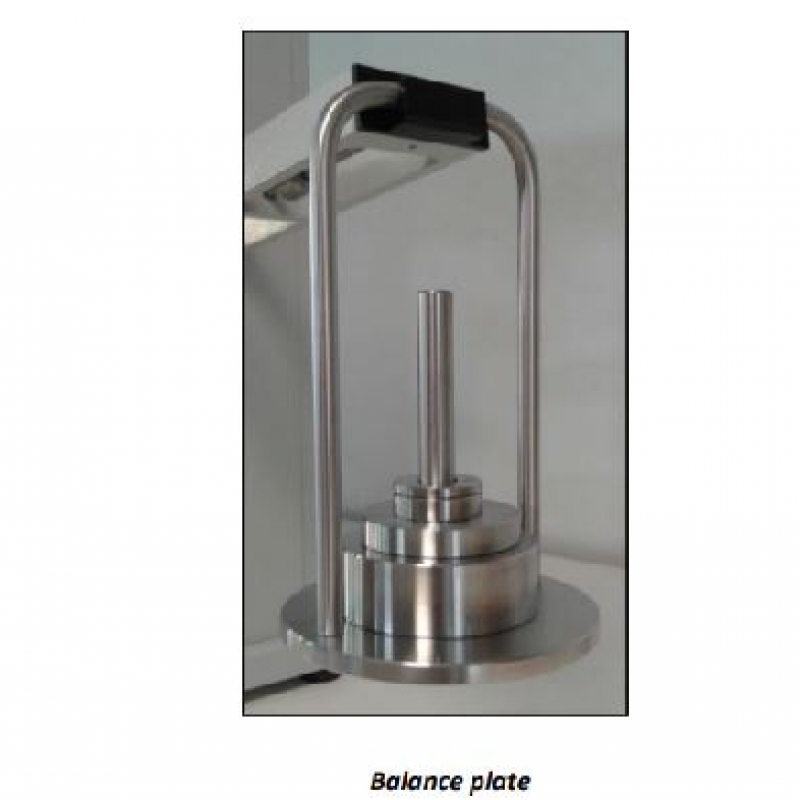

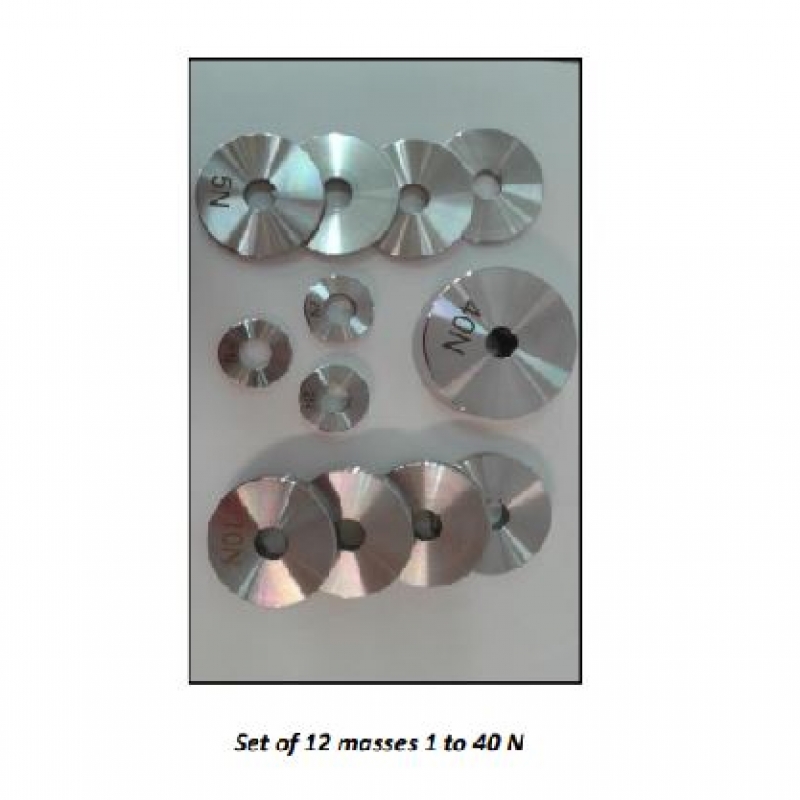

Through mass, a force is applied between the sample and the blade.
Machine commands are made via the touch screen control panel.
An automatic system detects when the blade penetrates the sample and immediately stops the machine from recording the stroke taken. The test results table can record up to 30 test runs.
All parts of the device, in contact with the sample, are made of aluminum, stainless steel and engineering plastics to avoid oxidation. The volumes are also made of stainless steel to avoid oxidation and loss of their value.

Tiêu chuẩn

ISO 13997 (EN 388:6.3; ISO 23388:6.3).

Video

Please contact us for advice and support
⇒ Mr. Ba: 0948.27.99.88

⇒ Or leave a message and we will call you directly. Thank you very much!
