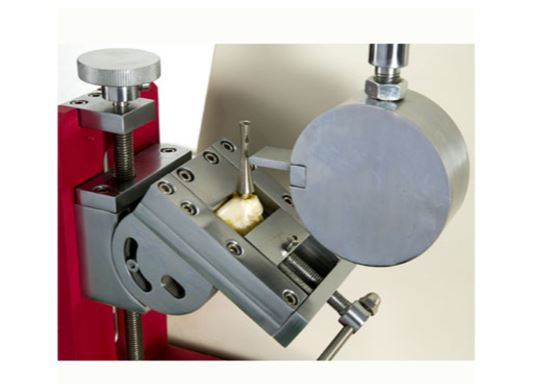

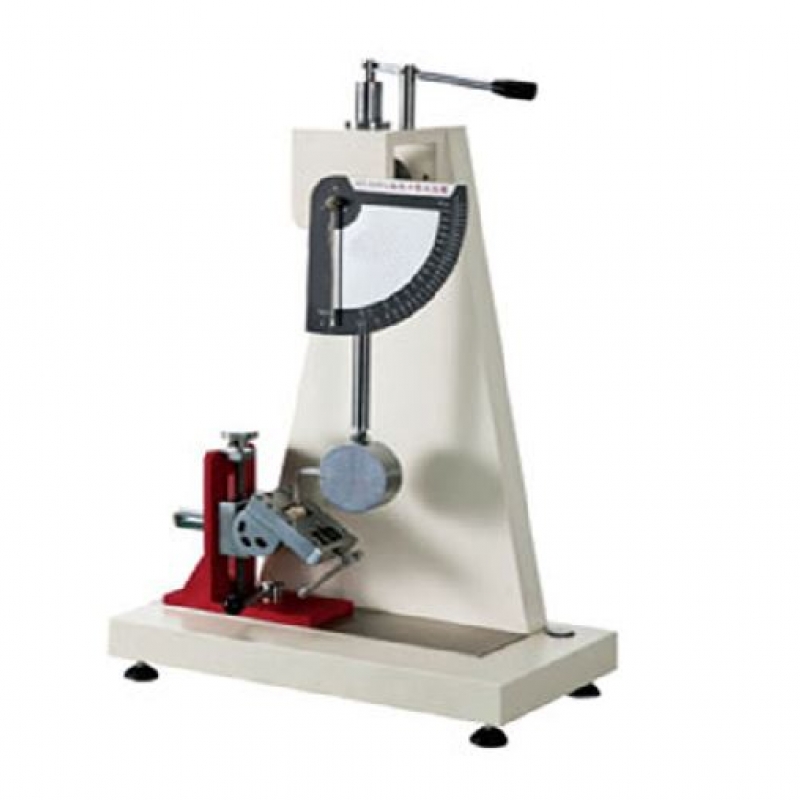

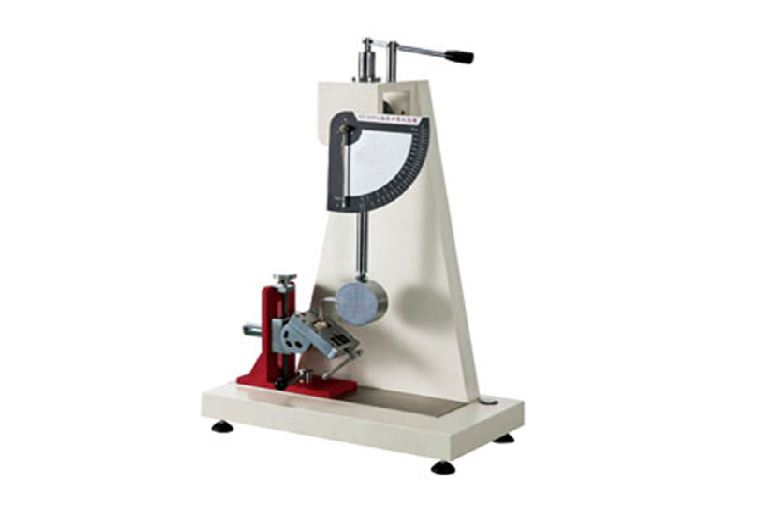

Heel Impact Tester

Model: H085
Producer: HiLAB-Portugal
Giá: Contact
Installing the appropriated support, this equipment can also perform the impact resistance test on rigid soles.

Product Application

  • Purpose – Determine the impact resistance of the heels of women´s shoes.

Specifications


  • All pieces of this machine that are contacting with test sample are made from appropriated materials to avoid oxidation, strong enough to avoid bend during test.
Dimensions (L x W x H) (mm)  550 x 350 x 750
Net Weight 55
  • Observation: Equipment must be installed over a leveled and strong bench

Standard

  • EN ISO 19953;
  • BS 5131:4.8;
  • SATRA TM20.
  • BS 5131:5.6;
  • SATRA TM86.

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
