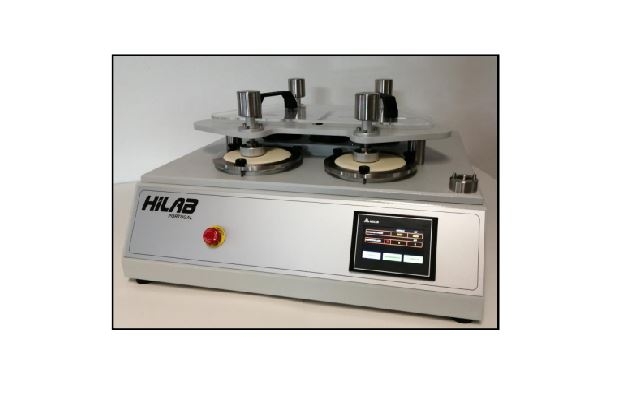

Martindale Abrasion Tester with 4 stations

Model: H062
Producer: HiLAB-Portugal
Giá: Contact
The present equipment “MARTINDALE Abrasion Machine” is intended to determine resistance of a material to wet and dry abrasion and it’s mainly applicable to fabrics, coated fabrics and leathers but it ...

Ứng dụng sản phẩm

  • The machine is used to determine the abrasion and knotting resistance of fabrics using the Martindale method
  • The machine is suitable for testing woven and knitted fabrics, fabrics, and non-woven fabrics
  • Martindale's fabric is available with 4
  • The Martindale Abrasion Test was developed primarily to evaluate the abrasion resistance of wool and textile fabrics and is not suitable for fabrics with surface coating.
  • Martindale is capable of operating within 24 hours. The test time is calculated from when the machine started and the current time. For the calculation to be accurate, it is necessary to set the correct time
  • Martindale can be configured to perform tests requiring different wear patterns. The equipment delivered is set up for standard abrasion testing

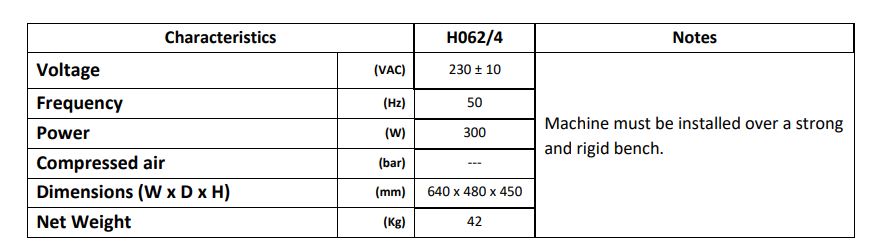

Thông số kỹ thuật

  • The main parts of the equipment are made in stainless steel, aluminum and technical plastics, to avoid oxidation, even when used to perform tests in wet mode. The quality of the materials and their finish ensures uniform, smooth, and low vibration movement of the holder guide plate, without oil or grease.
  • This equipment is produced with four stations and is delivered complete with one set of standard sample holders and weights, a cutting die for samples, an auxiliary weight, 20 felt discs, 40 discs of abradant fabric and one sample cutting die.
  • Equipment is supplied with a workshop calibration certificate that will attest to the fulfillment of the correspondent standards.

Tiêu chuẩn

  • ISO 12947-1;
  • EN ISO 5470-2;
  • EN ISO 20344:6.12;
  • EN ISO 17704;
  • EN ISO 12945-2;
  • TM 31.

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
