Products  Testing Equipments footwear industry

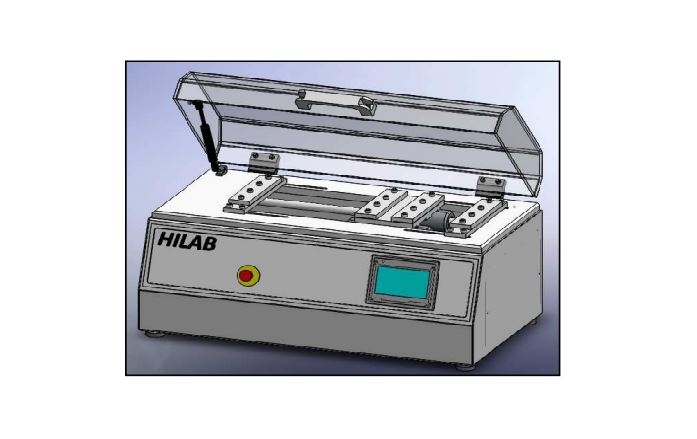

Elastics Repeated Extension Tester

Model: H017
Producer: HiLAB-Portugal
Giá: Contact
Assess the resistance of elastic materials for footwear, to repeated extension produced during normal walking. The test can be carried out before and after accelerated ageing. This method is applicable to ...

Ứng dụng sản phẩm

  • Assess the resistance of elastic materials for footwear, to repeated extension produced during normal walking. The test can be carried out before and after accelerated ageing. This method is applicable to any elastic material used for footwear. according EN ISO 10768; SATRA TM103.

Thông số kỹ thuật

  • The command of this equipment is entirely made through a touch screen in which runs a specific program that allows to the operator set all parameters of the test, namely stroke length and number of cycles (partial and total).
  • With these facilities it isn´t necessary adjust any mechanical parts.
  • The installation of samples is very easy because start position is always maintained by the system that assures that stop position is always coincident with start position. To assess the damage of the elastics, there is an option to move the moving clamp to the total stretched position.
  • All pieces of this machine that are contacting with test sample are made from stainless steel or aluminium and strong enough to avoid bend during test.
  • This machine, as all our machines, are projected and produced according all international safety regulations.

Tiêu chuẩn

  • EN ISO 10768; SATRA TM103.

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
