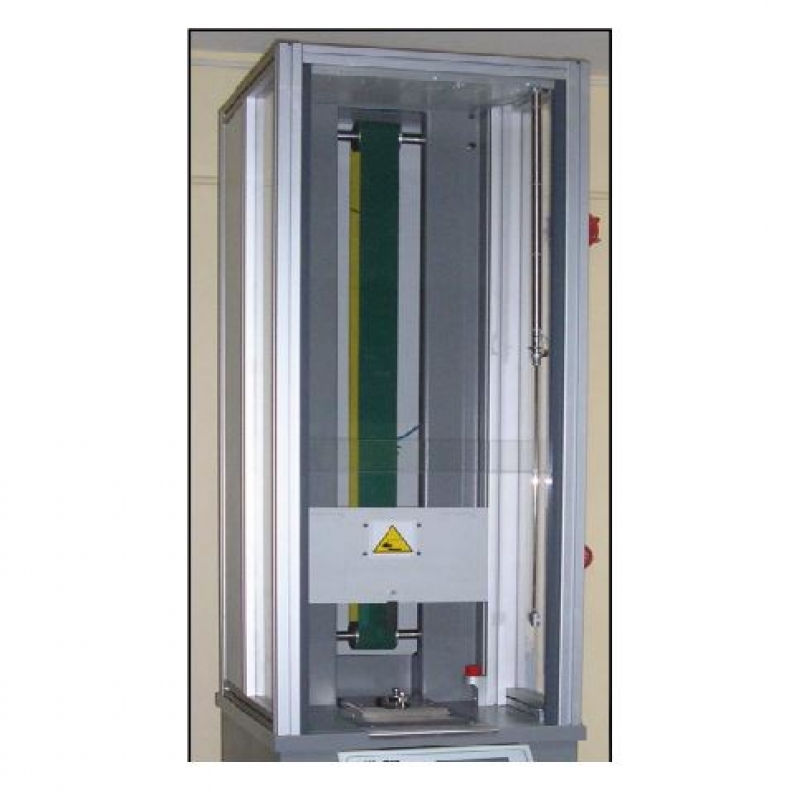

Toe Caps Impact Tester

Model: H081
Producer: HiLAB-Portugal
Giá: Contact
Machine is controlled by a PLC and the dialog between operator and machine is made through a console. Changing tools (striker or clamping device) is a very easy and quick operation

Ứng dụng sản phẩm

  • Purpose – assess impact resistance of toe caps for safety and protective footwear, according EN ISO 20344:5.4; EN ISO 22568-1; EN ISO 22568-2; ASTM F2413-11; CSA Z195, depending on of the devices and tools

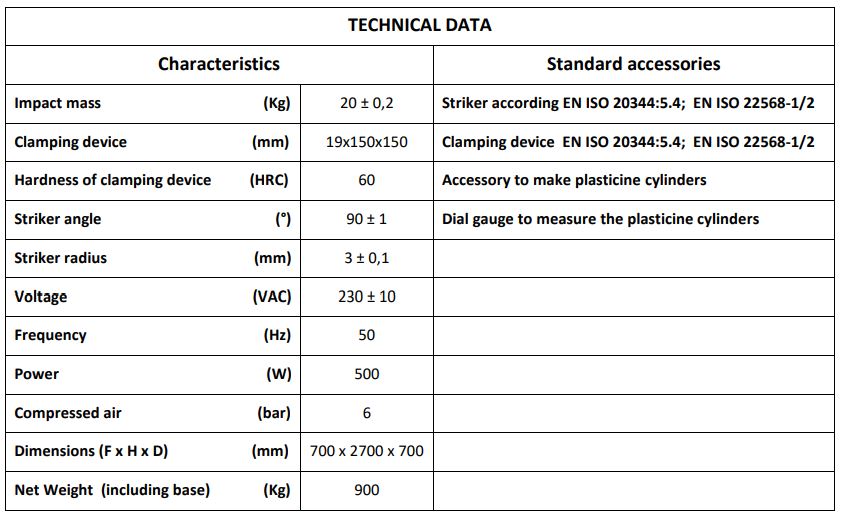

Thông số kỹ thuật

General overview of how the Toe Cap Impact Tester works:
  1. Preparation of test sample: The protective shoe or representative part of the shoe containing the protective toe cap is prepared for testing.
  2. Load: Place the shoe on the Toe Impact Tester and adjust the tester so it is aligned with the toe of the shoe.
  3. Release Mechanism: A specific weight or mass is released or released into the toe of the shoe from a predetermined height. The release mechanism is typically controlled to ensure consistent and repeatable tests.
  4. Impact: Weight is applied to the toes, simulating the force that might be applied to the toes in real-life situations.
  5. Inspection: After impact, footwear will be inspected for any signs of damage or deformation to the toe box.
  6. Pass/Fail Criteria: Test results are compared to industry standards or safety regulations to determine whether the shoe meets the required impact resistance criteria.
  • The toe impact tester is an essential tool for evaluating the safety and protective features of footwear, especially in industries where workers are exposed to potential hazards. such as falling objects, heavy machinery or compression risks. Compliance with safety standards, such as those set by organizations such as ASTM International or EN (European Standard), is often a requirement for safety footwear.
  • This type of testing helps manufacturers ensure that their safety shoes provide effective impact protection, contributing to the overall safety and health of workers in a variety of industries. .
  • The machine is verified and calibrated by our in-house technical services and a “Workshop Calibration Certificate” is issued.
  • Installation of the equipment can be carried out by the customer or, upon request, can be carried out by our technicians.

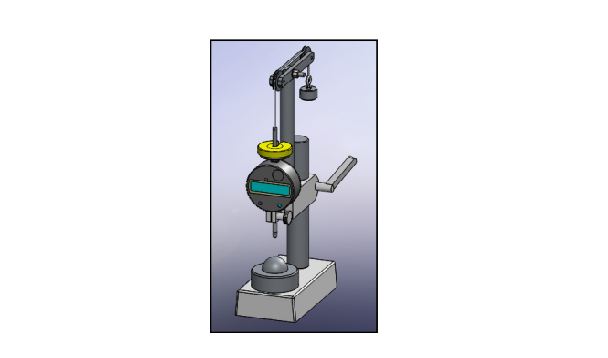

  • With standard equipment, special thickness gauges that meet the requirements of the standard are provided.
  • All accessories are made of suitable materials and are completely protected from oxidation.
  • The machine is controlled by PLC and the dialogue between the operator and the machine is carried out through a console.
  • Changing tools (beaters or clamping devices) is easy and quick
  • Operation at All power levels, according to European, US and Canadian standards are pre-inserted from the factory, but other levels can be set by the operator.
  • The machine is equipped with a fall rate meter as required by ASTM and CSA that displays the impact rate and energy taken during each test.

Tiêu chuẩn

  • EN ISO 20344:5.4;
  • EN ISO 22568-1;
  • EN ISO 22568-2;
  • ASTM F2413-11;
  • CSA Z195,

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
