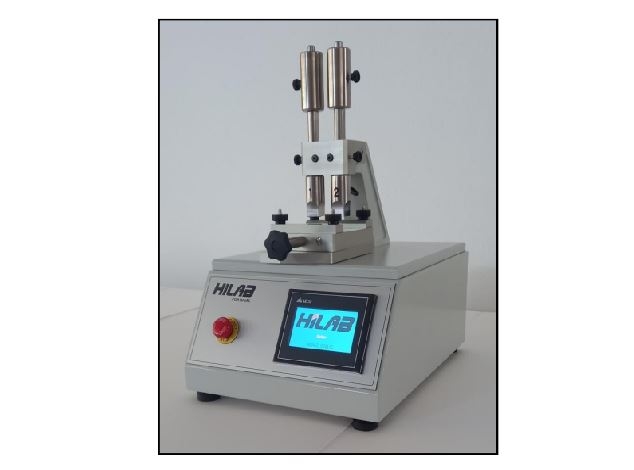

Rub Fastness Tester with 2 stations

Model: H064
Producer: HiLAB-Portugal
Giá: Contact
Machine has a lateral displacement device which allows perform two tests in each sample, without need move the samples, when is used only one finger test.

Ứng dụng sản phẩm

  • Purpose – Assess the degree of damage and transfer of a material’s surface colour during dry or wet abrasion. The methods are applicable to all footwear uppers, linings and insocks irrespective of the material, in order to assess suitability for end use, according EN ISO 20344:7.3; EN ISO 11640; EN ISO 17700:Met.A; ISO 20868; TM173.

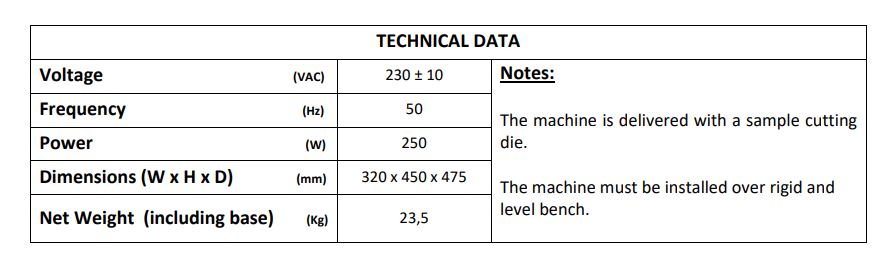

Thông số kỹ thuật

Tiêu chuẩn

  • EN ISO 20344:7.3;
  • EN ISO 11640;
  • EN ISO 17700:Met.A;
  • ISO 20868; TM173

Video

Please contact us for advice and support
⇒  Mr. Ba: 0948.27.99.88

⇒  Or leave a message and we will call you directly. Thank you very much!
